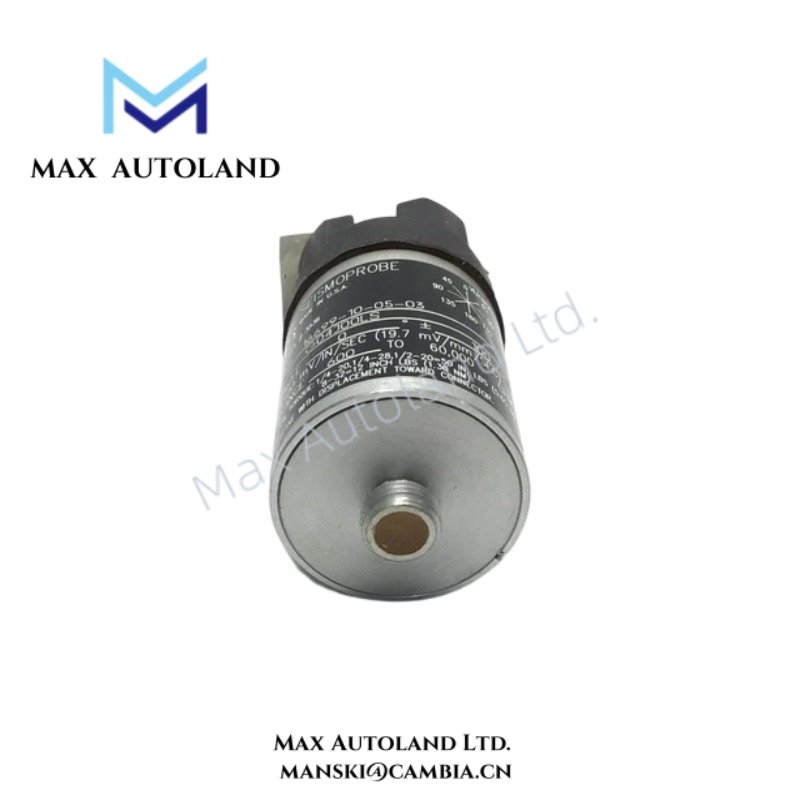

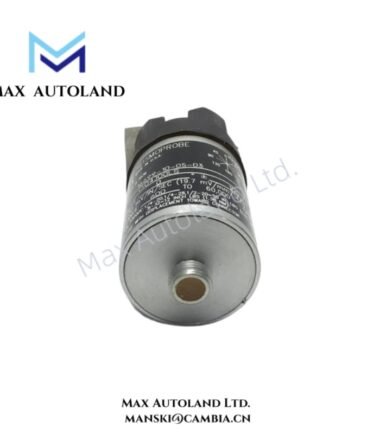

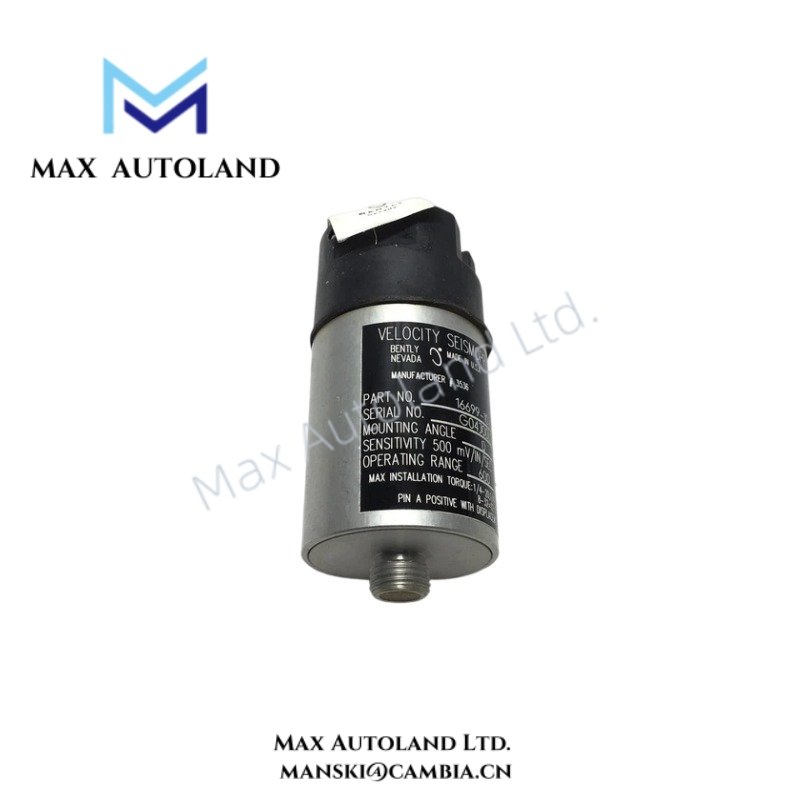

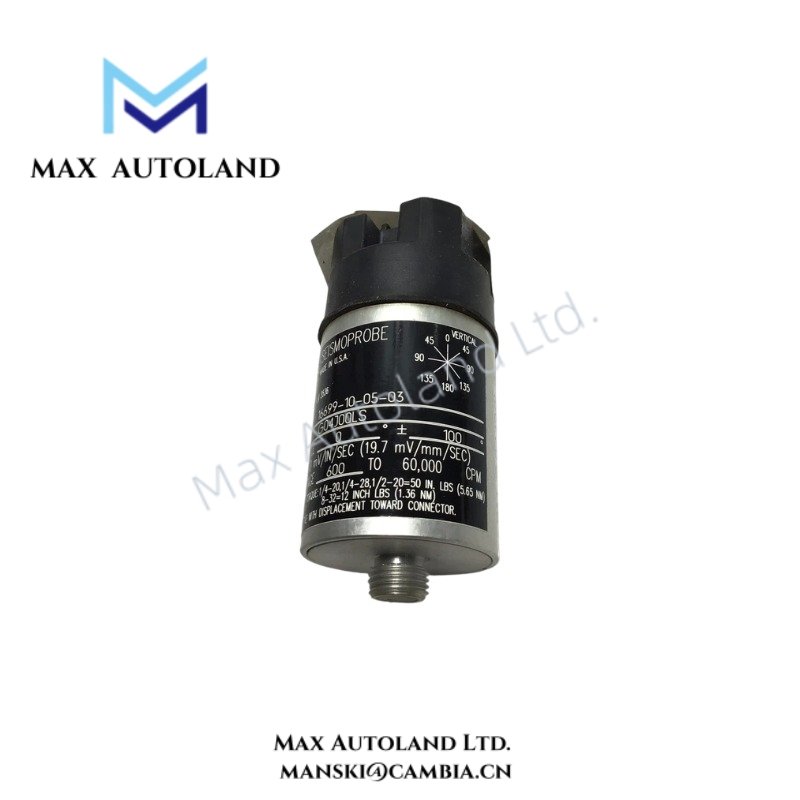

Velocity Transducer Housing Assembly Bently Nevada 107770-03-03

Hardware Specifications

Absolute Vibration Monitoring and Rotor Dynamics

The Bently Nevada 107770-03-03 supports machinery monitoring by measuring absolute vibration of bearing housings, machine casings, and structural surfaces. Unlike an eddy-current proximity measurement, the integrated velocity sensor measures machine motion relative to free space rather than shaft displacement relative to the probe mounting location.

This measurement method supports vibration assessment during rotor dynamics investigations where casing motion and structural response require separate evaluation. However, gap voltage validation at nominal targets such as -10 VDC applies to compatible Bently Nevada eddy-current proximity measurement systems and does not define the operating principle of this piezo-velocity assembly.

The factory-installed sensor uses integrated electronics and has no moving mechanical elements. Consequently, the housing protects the sensor and provides the specified hazardous-area installation arrangement while maintaining the required mechanical mounting interface.

Frequently Asked Questions

Q: What does the Bently Nevada 107770-03-03 measure?
A: It measures absolute vibration relative to free space. The assembly can monitor vibration on bearing housings, machine casings, or structural mounting surfaces.

Q: Which cable is required for the housing assembly?
A: The provided technical data specifies cable part number 89477-AA for connection between the Velomitor sensor assembly and the monitoring system.

Q: Can the assembly be mounted in different orientations?
A: Yes. The provided data states that the transducer can be installed vertically, horizontally, or in another suitable orientation, provided the mechanical mounting and hazardous-area installation requirements are maintained.

Field Installation Guidelines

• Verify that the mounting point provides a rigid mechanical connection to the monitored surface.
• Use the specified 1/2 – 14 NPT mounting interface and avoid thread damage during installation.
• Confirm that the cable exit fitting and cable gland maintain the required enclosure integrity.
• Use the specified 89477-AA cable for the sensor connection.
• Route sensor cables separately from high-power switching and motor conductors to reduce induced electrical interference.
• Maintain the cable shield and grounding arrangement according to the monitoring system installation documentation.
• Do not modify the housing, connector, cable entry, or explosion-proof fitting when the assembly is installed in a classified hazardous area.
• Inspect the IP65 / NEMA 4X sealing surfaces and cable gland condition before commissioning.
• Verify sensor output scaling and monitoring system configuration before placing the machine under normal operating conditions.
