Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 3300/45‑02‑02‑03‑00 |

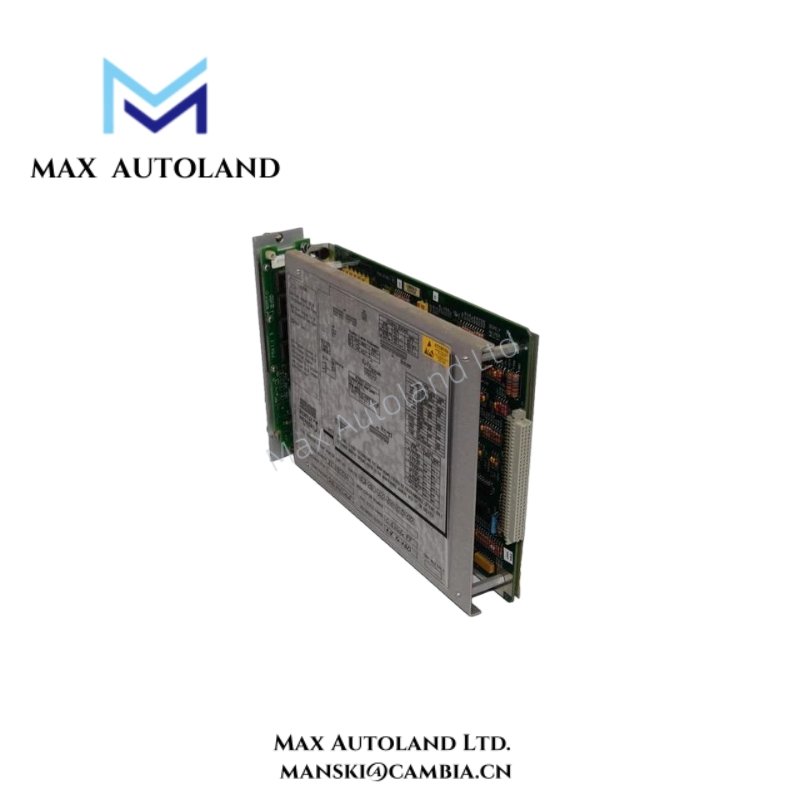

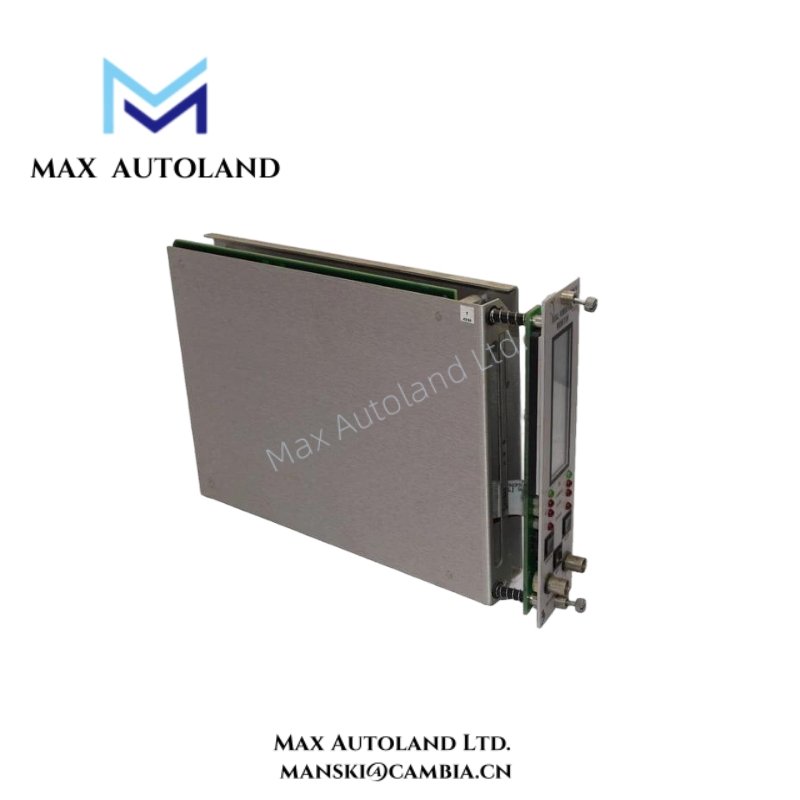

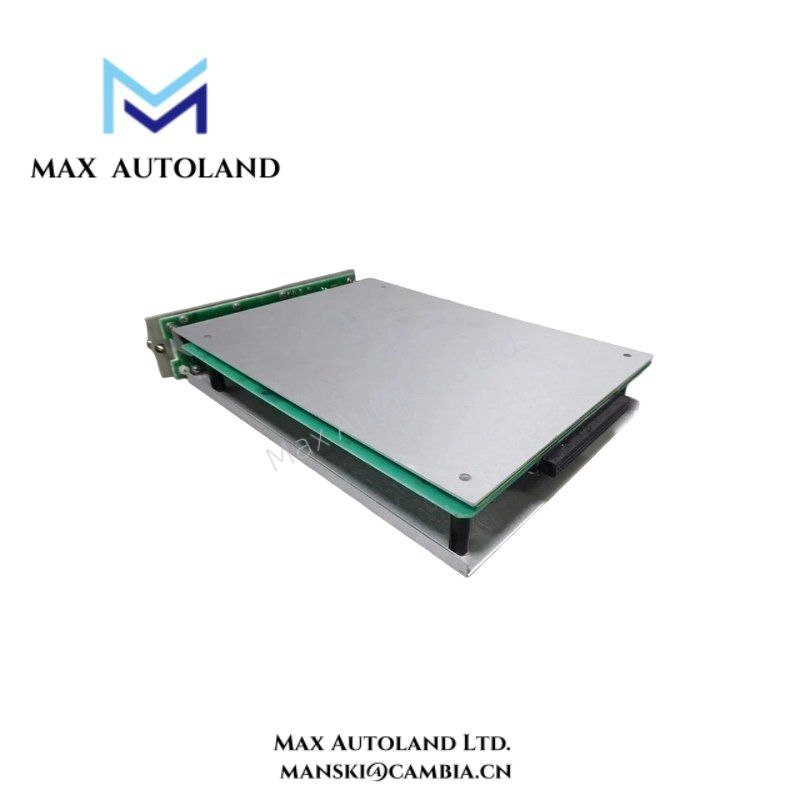

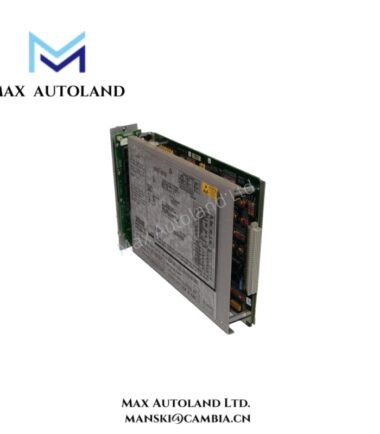

| Product Type | Dual Differential Expansion Monitor for 3300 XL NSv |
| Measurement Type | Differential shaft expansion and displacement |
| Compatible Systems | 3300 XL NSv Proximity Transducer Systems |
| Module Slots | 1 slot, dual differential channels |
| Output Signals | 4–20 mA analog, optional relay alarms |
| Input Voltage | 24 VDC typical |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Vibration Resistance | 5 g, 10–500 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| Accuracy | ±0.001 inch or ±25 µm |
| Response Time | <50 ms |
| Weight | ~1.2 kg |
| Mounting Options | 3300 XL NSv standard rack or panel mount |
| Typical Environments | Control rooms, machinery protection centers, industrial cabinets |
| Build Quality | Rugged, engineered for long-term reliability in industrial applications |
FAQ
A1: It measures dual differential shaft expansion and displacement to protect rotating machinery.
Q2: Which systems is it compatible with?
A2: It works with 3300 XL NSv proximity transducer systems.
Q3: What outputs are available?
A3: 4–20 mA analog outputs and optional relay alarms.
Q4: What is its operating temperature range?
A4: It operates reliably between -40°C and +70°C.
Q5: Can it tolerate vibration and shock?
A5: Yes. It withstands up to 5 g vibration and 30 g shock.
