Overview
Specification
| Parameter | Specification |
|---|---|

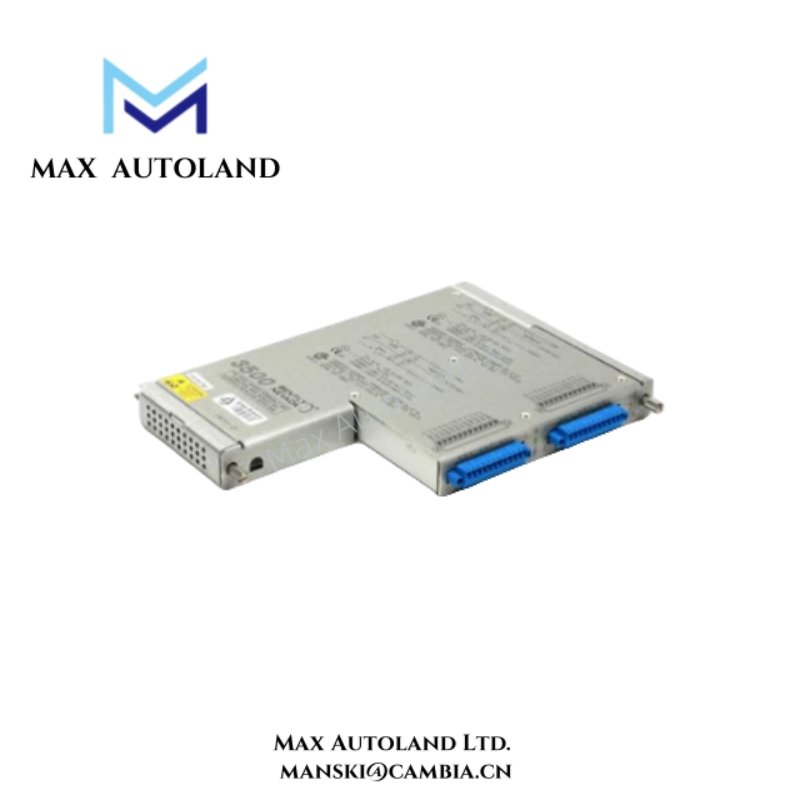

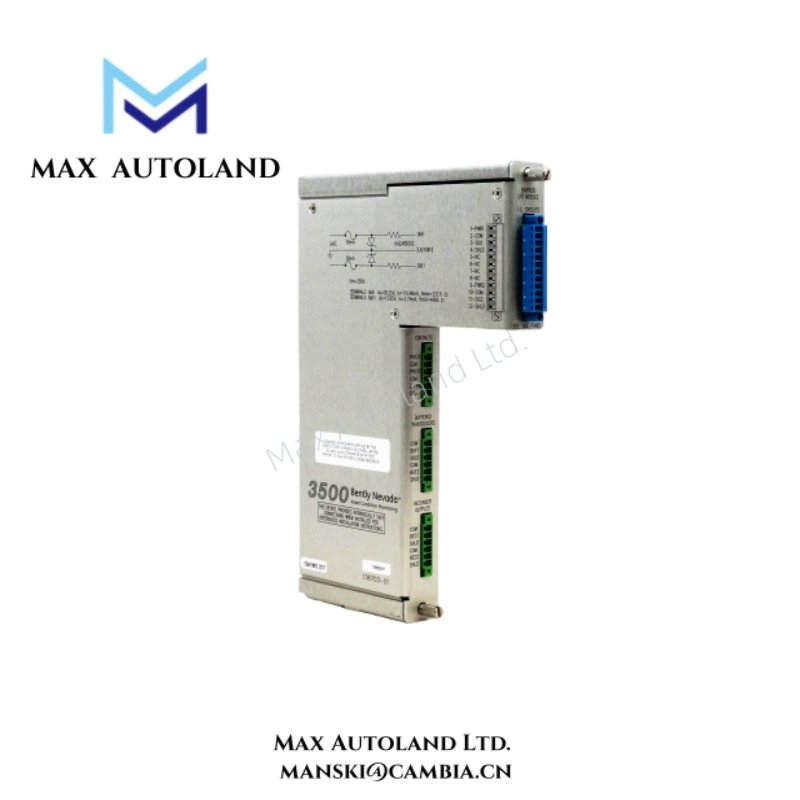

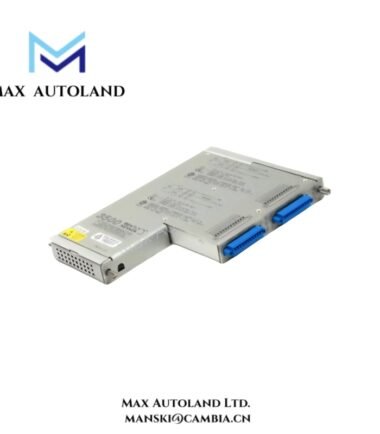

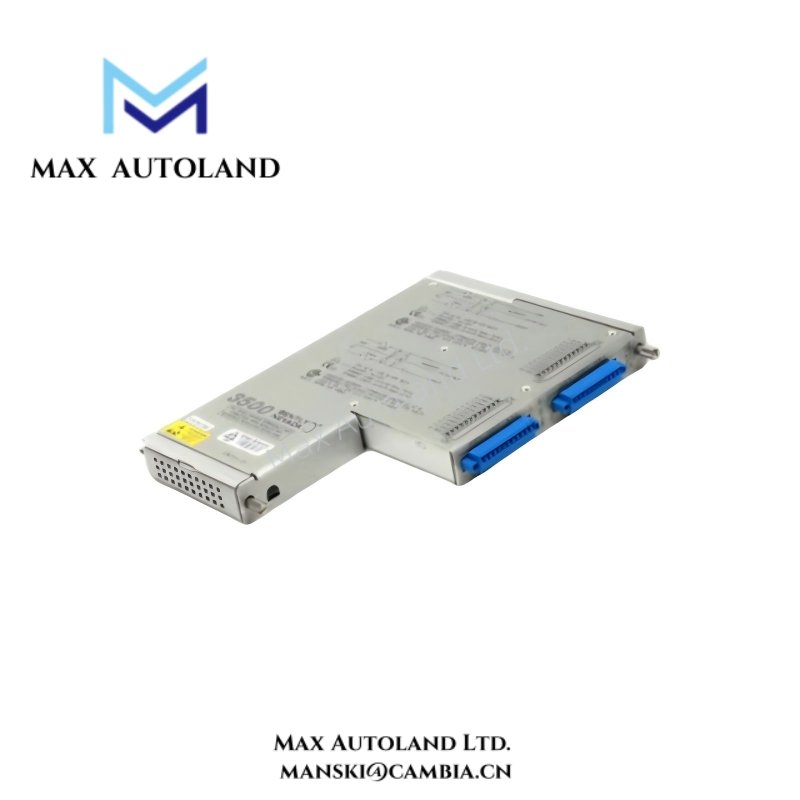

| Model | 3500 Dual Velocity Monitor Module |
| Part Number | 136751-01 |
| Measurement Channels | 2 independent velocity channels |
| Input Type | Proximity probes or velocity transducers |
| Measurement Range | 0–2 in/s (0–50 mm/s) typical; configurable per application |
| Accuracy | ±1% of full scale typical |
| Response Time | <1 second for transient vibration detection |
| Alarm Points | 2 per channel: warning and shutdown levels |
| Frequency Range | 0.5 Hz to 10 kHz typical |
| Power Supply | 115/230 V AC ±10%, 50/60 Hz |
| Operating Temperature | –20°C to 70°C (–4°F to 158°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Mounting | Panel or rack mount compatible with 3500 system |
| Communication | Integrated with 3500 system network for centralized monitoring |
| Certifications | CE, UL, cUL, IEC compliant |
| Additional Features | Self-test diagnostics, LED indicators, hot-swappable modules |
FAQ
It supports two independent channels for simultaneous vibration monitoring.Q2: What types of sensors are compatible with this module?
It supports proximity probes and velocity transducers.
Q3: Can it detect transient vibration events?
Yes, the module responds in less than one second to transient events.
Q4: Is the module suitable for harsh industrial conditions?
Yes, it operates reliably under vibration, temperature extremes, and electrical noise.
Q5: How does it integrate with the 3500 system?
The module connects to the 3500 System network for centralized monitoring and alarms.
Q6: Can the module be serviced without shutting down machinery?
Yes, hot-swappable modules allow maintenance without interrupting operation.
