Overview
By providing actionable velocity data, this module supports predictive maintenance strategies, therefore reducing unexpected downtime and extending equipment lifespan. Consequently, operators gain enhanced machinery reliability and optimized operational safety.
Specification
| Parameter | Specification |
|---|---|

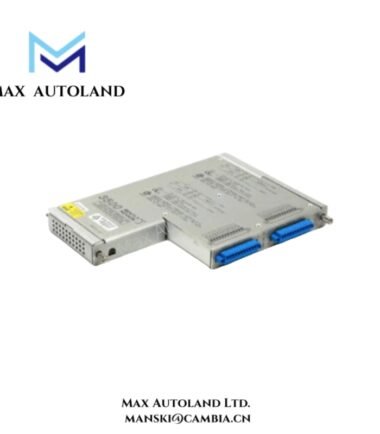

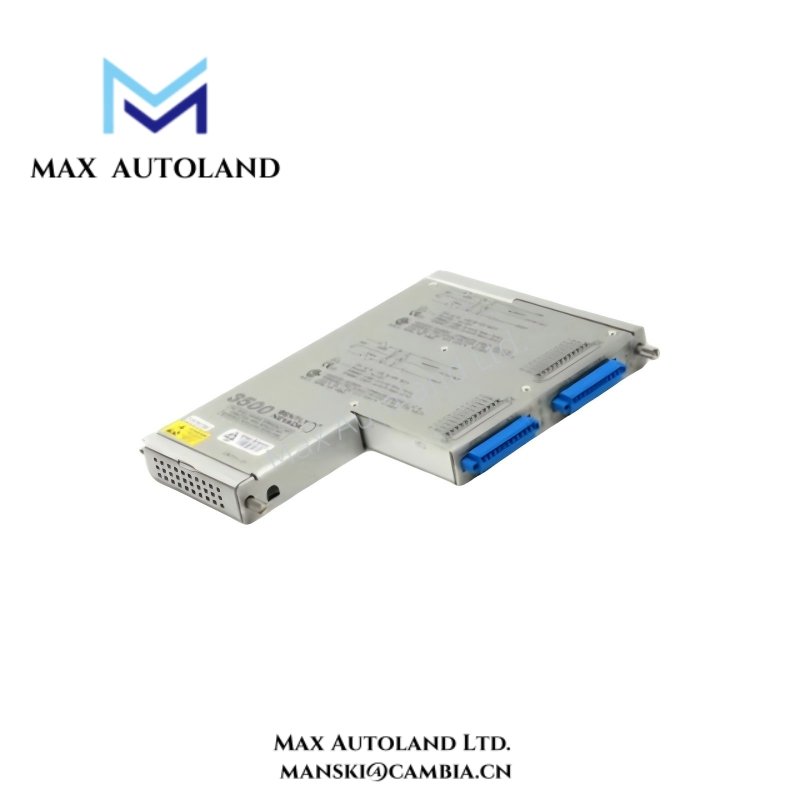

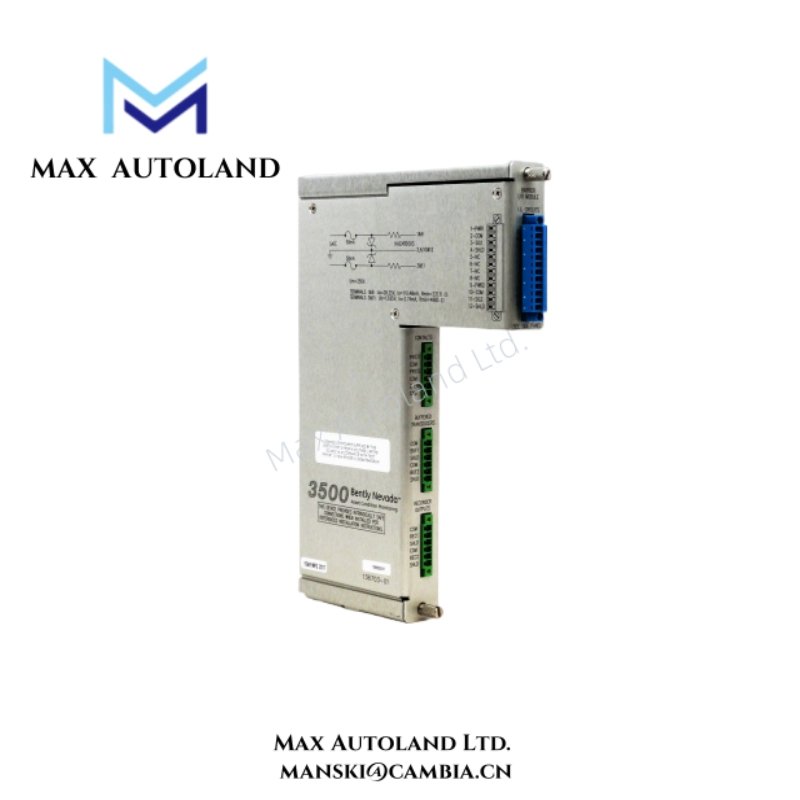

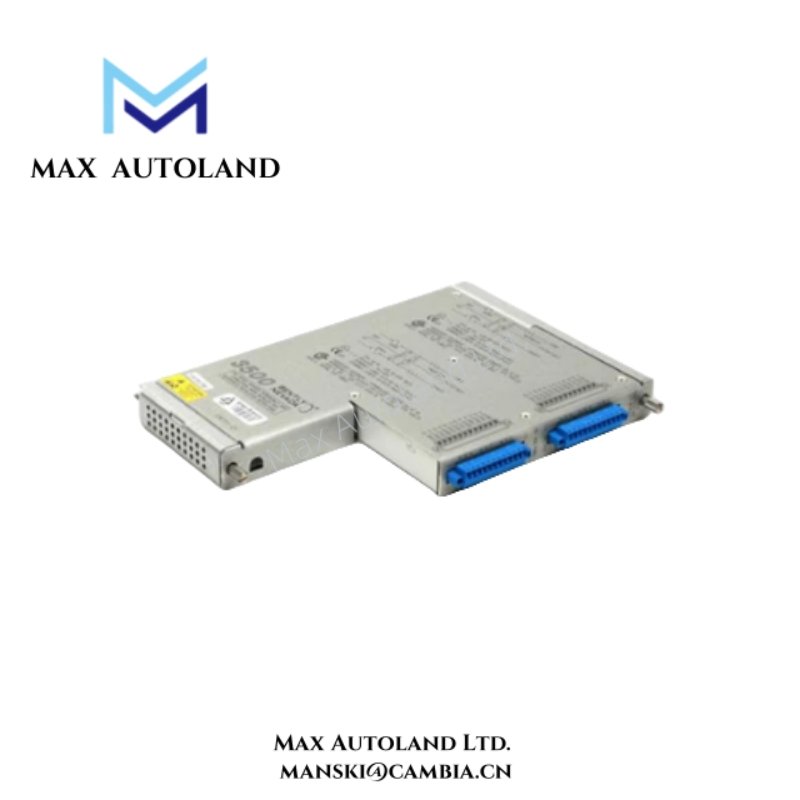

| Model | 3500 Dual Velocity Monitor Module |
| Part Number | 136751-02 |
| Channels | 2 independent velocity measurement channels |
| Input Type | Proximity probes or velocity transducers |
| Measurement Range | 0–2 in/s (0–50 mm/s) typical; configurable per application |
| Accuracy | ±1% of full scale typical |
| Response Time | <1 second for transient vibration detection |
| Alarm Points | 2 per channel: warning and shutdown |
| Frequency Range | 0.5 Hz to 10 kHz typical |
| Power Supply | 115/230 V AC ±10%, 50/60 Hz |
| Operating Temperature | –20°C to 70°C (–4°F to 158°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Mounting | Panel or rack mount compatible with 3500 system |
| Communication | Integrated with 3500 system network for centralized monitoring |
| Certifications | CE, UL, cUL, IEC compliant |
| Additional Features | Self-test diagnostics, LED indicators, hot-swappable module design |
FAQ
It supports two independent channels for simultaneous vibration monitoring.
Q2: What sensor types are compatible with this module?
It is compatible with proximity probes and velocity transducers.
Q3: Can it detect transient vibration events?
Yes, the module responds in less than one second to transient vibration.
Q4: Is it suitable for harsh industrial environments?
Yes, it operates reliably under temperature extremes, vibration, and electrical noise.
Q5: How does it integrate with the 3500 system?
The module connects to the 3500 system network for centralized monitoring and alarms.
Q6: Can the module be serviced without shutting down equipment?
Yes, its hot-swappable design allows maintenance without interrupting operation.
Manual/Datasheet PDF
