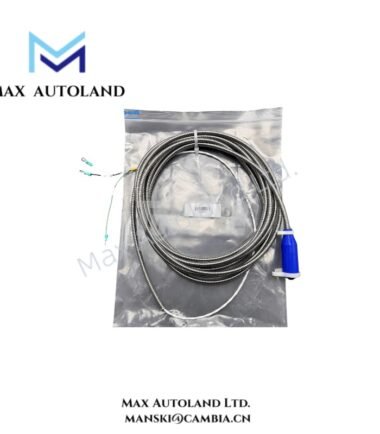

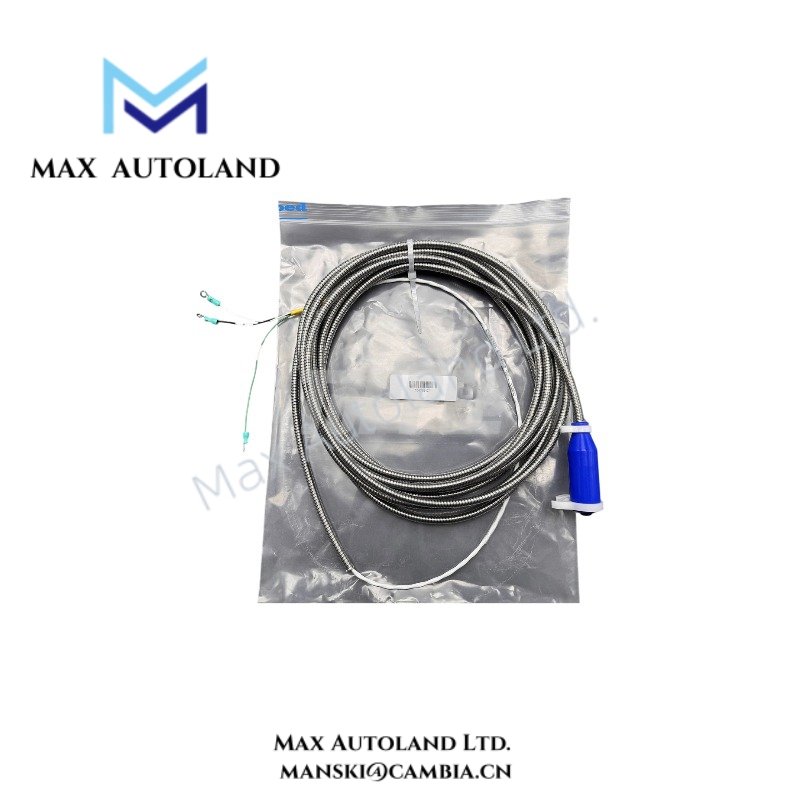

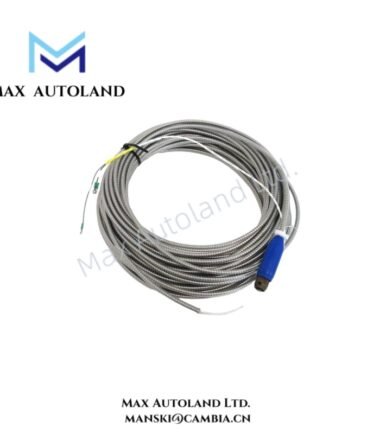

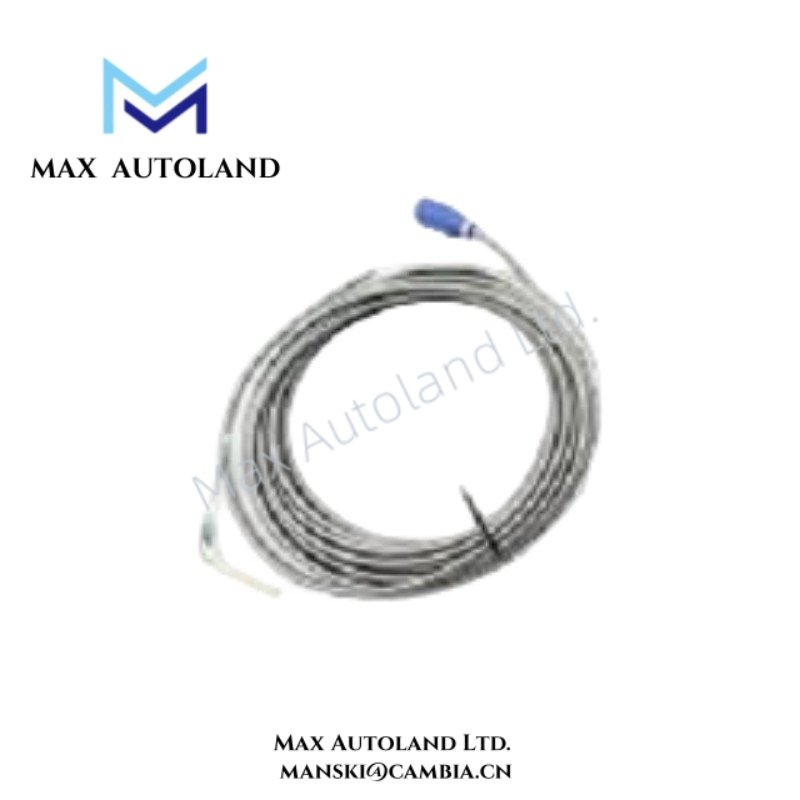

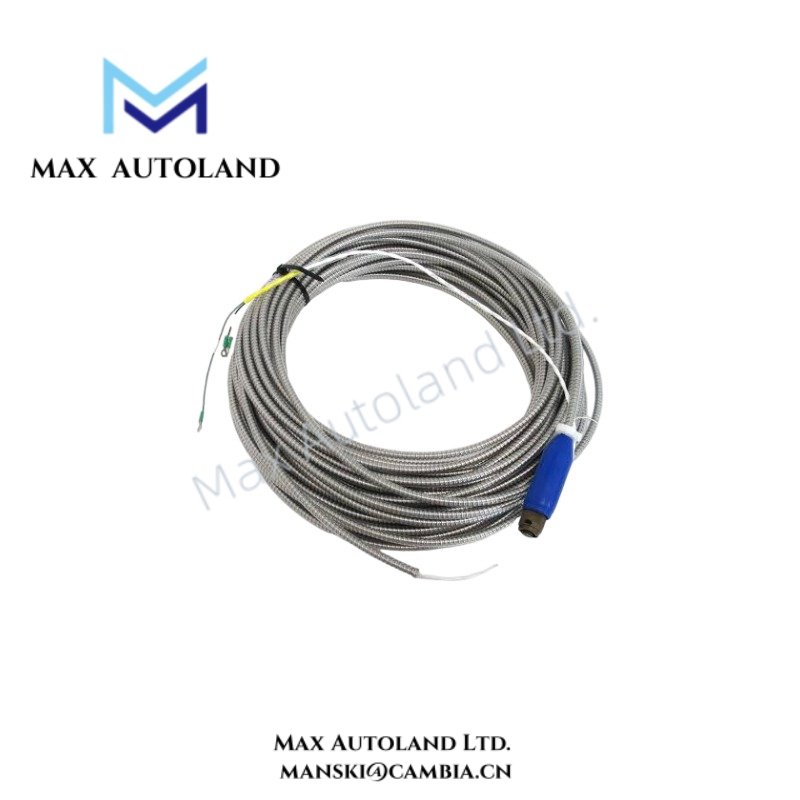

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 106765-25 |
| Brand | Bently Nevada |
| Product Type | Interconnect Cable |
| Cable Length | 25 m |
| Compatible Equipment | Bently Nevada Velomitor vibration sensors |
| Primary Signal Function | Vibration and velocity signal transmission |
| Shielding | Full EMI/RFI shielding |
| Operating Temp | -40 deg C to +85 deg C |
| Origin | USA |
| Power Consumption | Passive cable; no independent power consumption specified |
| Primary Application | Machinery condition monitoring and protection signal circuits |
EMI Shielding and Cross-Talk Suppression
The Bently Nevada 106765-25 supports the transmission path between Velomitor sensor assemblies and associated monitoring equipment. Its shielding construction reduces the influence of electromagnetic and radio-frequency interference on low-level vibration signals.
In addition, controlled cable routing and correct shield termination help suppress cross-talk between adjacent signal circuits. This practice supports consistent signal transmission when the monitoring system evaluates vibration and rotor dynamic behavior.
Frequently Asked Questions
Q: Does the 106765-25 require an external power supply?
A: No independent power consumption is specified for the cable. It functions as a passive interconnect between compatible sensor and monitoring circuits.
Q: Can the cable shielding be connected at multiple grounding points?
A: Shield termination should follow the grounding requirements of the connected monitoring system. Incorrect multi-point grounding can introduce unwanted ground-loop currents.
Q: Is the 106765-25 intended for direct connection to Velomitor sensors?
A: The supplied product information identifies the cable for connection between Bently Nevada Velomitor vibration sensors and compatible monitoring hardware. Connector compatibility should be verified against the specific sensor and monitor configuration.
Field Installation Guidelines
- Route the cable separately from high-current power conductors, motor leads, and switching circuits.
- Maintain the shielding system continuously through the installed signal path.
- Follow the grounding instructions for the connected Bently Nevada monitoring equipment.
- Avoid excessive bending, crushing, or mechanical tension during cable installation.
- Protect the cable from sharp edges and locations exposed to continuous mechanical abrasion.
- Verify connector engagement before system energization.
- Inspect the complete signal path after installation to confirm correct vibration or velocity signal transmission.
