Overview

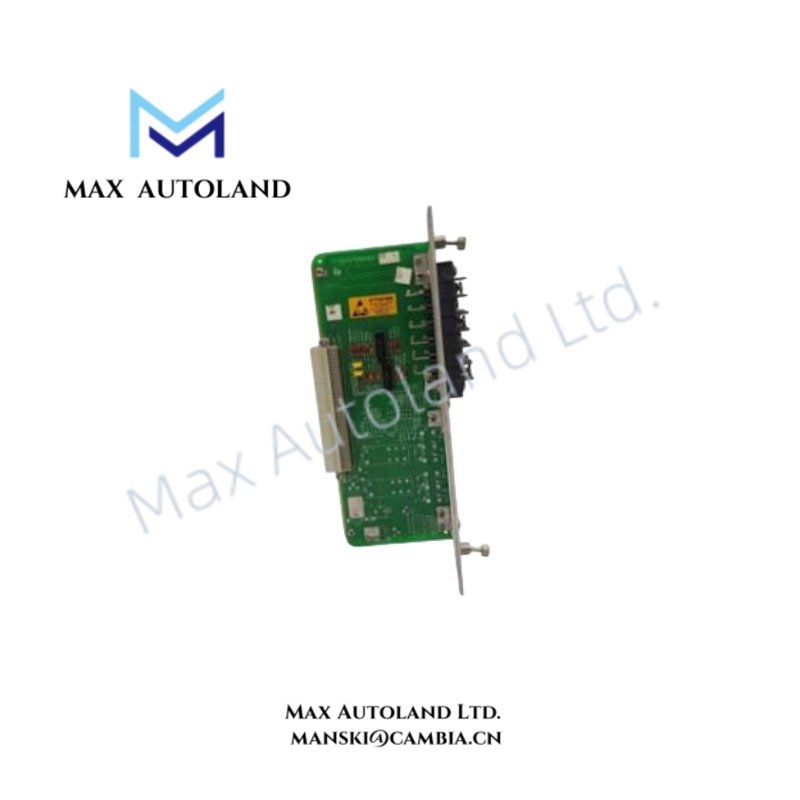

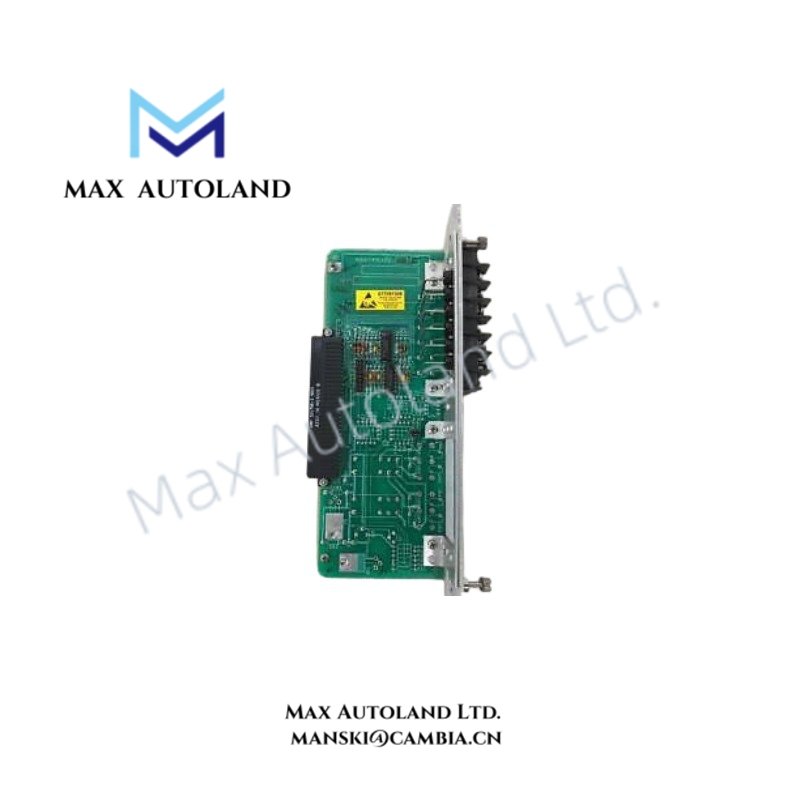

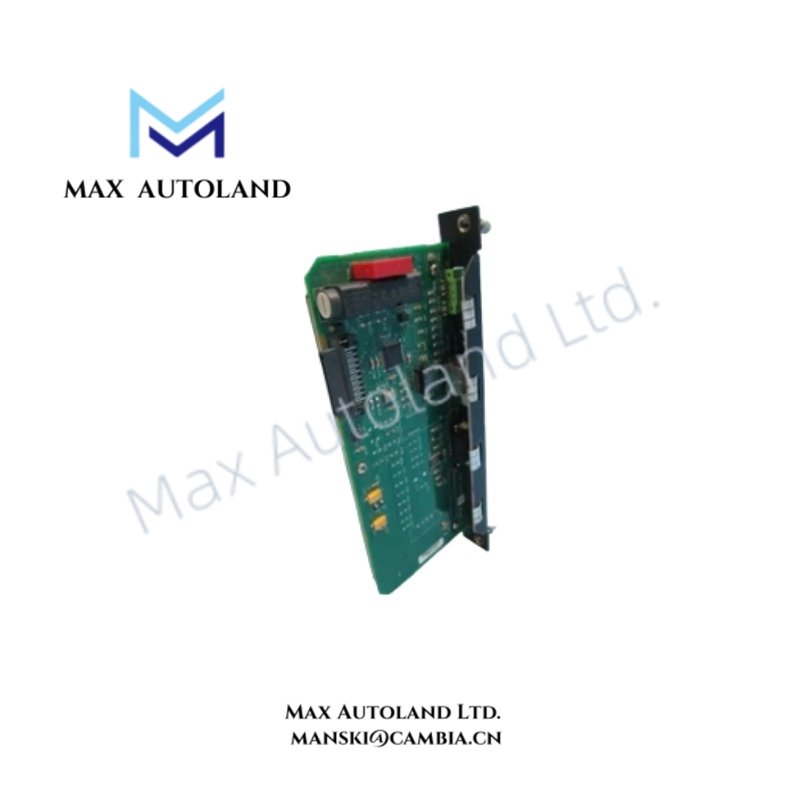

Configured for external field signal termination in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 149758-01 (149758-01 Non-Isolated I/O Module) provides direct physical signal routing between monitor modules and field wiring interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 149758-01 |
| Brand | Bently Nevada |
| Product Type | Non-Isolated I/O Module |
| System Compatibility | Bently Nevada 3500 Series Machinery Protection System |
| Origin | USA |
| Operating Temp | Industrial operating environment; exact range depends on installed 3500 system configuration |
| Power Consumption | Supplied through the associated 3500 rack interface; exact consumption depends on rack loading |
| Signal Interface | Non-isolated field signal termination interface |
| Supported Sensors | Proximity probes and seismic transducers |
| Mounting Position | Rear slot position aligned with the corresponding 3500 monitor module |
| Termination Method | External termination connection support |
Eddy-Current Probe Scaling and Signal Integrity Features
The 149758-01 operates as a rear I/O interface for Bently Nevada 3500 monitor modules that process displacement and vibration signals. It supports field wiring connections from eddy-current probe systems, including proximity sensors used for shaft position and vibration measurement.
The module maintains the physical signal path required for monitor modules to evaluate probe voltage behavior, vibration amplitude, and mechanical movement conditions. Therefore, correct cable routing and grounding practices directly affect measurement accuracy.
Bently Nevada machinery monitoring architectures use gap voltage validation methods, including typical -10 VDC target references for eddy-current probe systems. The 149758-01 does not generate probe excitation signals; instead, it provides the termination interface required for compatible monitoring channels.
The module also supports rotor dynamics applications by allowing monitor cards to receive vibration-related signals from rotating equipment measurement points. Proper shielding reduces signal interference and minimizes cross-talk between adjacent measurement circuits.
Frequently Asked Questions
Q: Is the 149758-01 an isolated signal conditioner?
A: No. The 149758-01 is a non-isolated I/O module. It provides field wiring termination functions and connects signals directly to compatible 3500 monitor modules.
Q: Can the 149758-01 operate as a standalone monitoring device?
A: No. The module requires installation within a compatible Bently Nevada 3500 rack configuration and works with the associated monitor module.
Q: Does the 149758-01 support direct firmware upgrades?
A: No. The module does not contain independent application firmware. Configuration and processing functions remain within the connected 3500 monitor modules and rack controller components.
Field Installation Guidelines
Install the 149758-01 in the rear rack position assigned to the corresponding 3500 monitor module. Confirm that the connector alignment matches the installed monitor card before applying rack power.
Use approved field wiring practices for vibration and proximity measurement circuits. Route sensor cables separately from high-current power conductors to reduce electromagnetic interference.
Connect cable shields according to the plant grounding standard. Avoid multiple grounding points that may create ground loops in low-level vibration signal circuits.
Verify proximity probe wiring polarity, field termination points, and connector seating before system startup. Confirm that the connected monitor module receives valid sensor signals and acceptable gap voltage readings after installation.
