Overview
Specification
| Parameter | Specification |
|---|---|

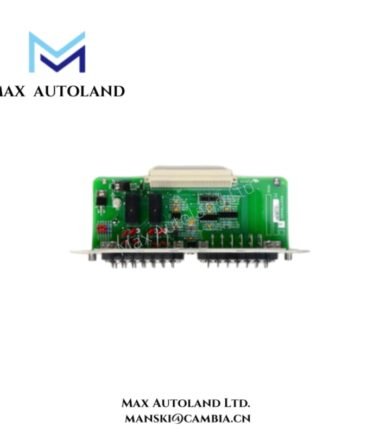

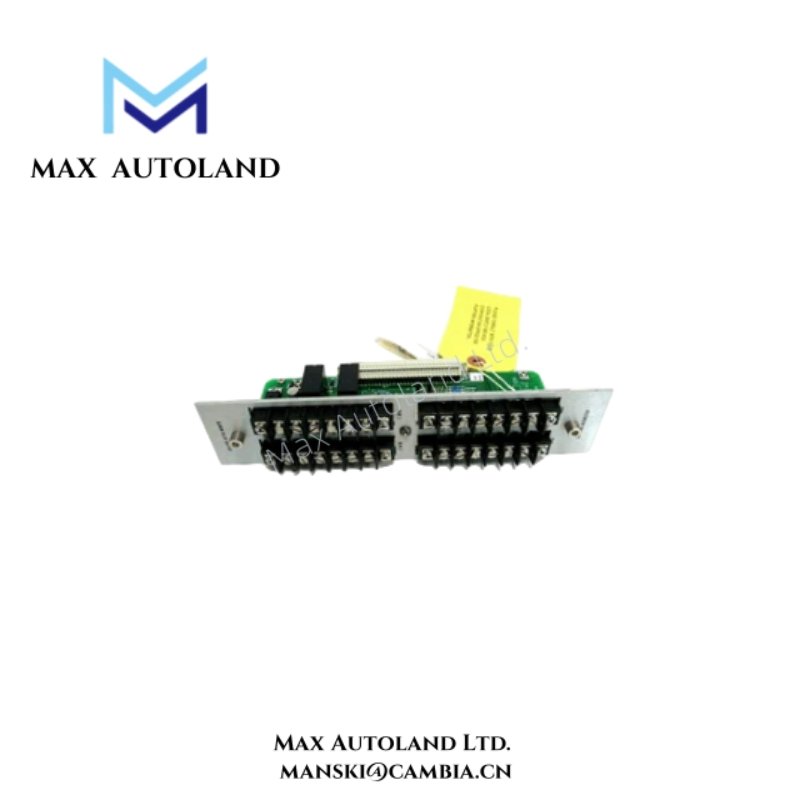

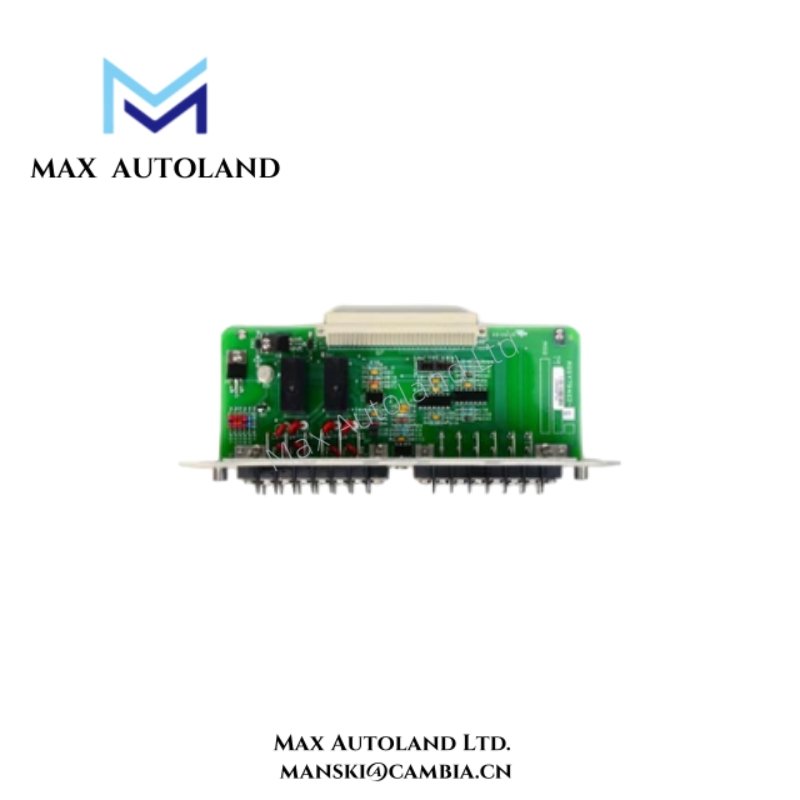

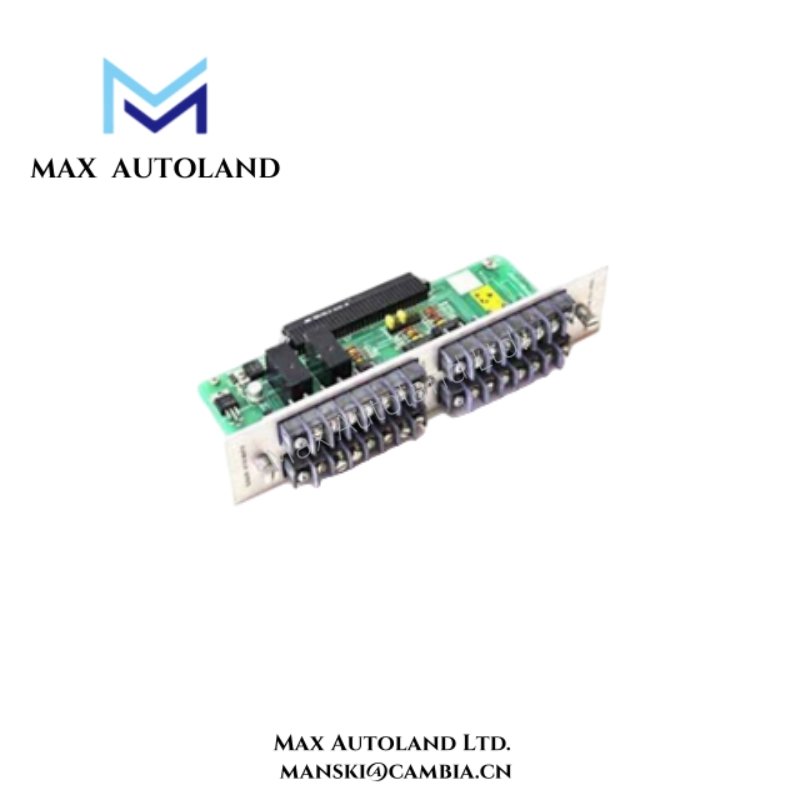

| Model | 3300 Dual Thrust Position Monitor |
| Part Number | 82362-01 |
| Input Type | Proximity probes (eddy current type) |
| Measurement Channels | 2 independent channels for dual thrust monitoring |
| Signal Output | 4–20 mA or 0–5 V analog outputs |
| Accuracy | ±1% of full scale typical |
| Operating Temperature | –20°C to 70°C (–4°F to 158°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Power Supply | 115/230 V AC ±10%, 50/60 Hz |
| Frequency Response | DC to 10 kHz typical |
| Mounting | 3300 System rack compatible |
| Diagnostics | LED indicators, self-test, and status reporting |
| Certifications | CE, UL, cUL, IEC compliant |
| Optional Features | Remote test, configurable alarm setpoints, signal conditioning |
FAQ
It supports eddy current proximity probes for dual thrust position measurement.
Q2: How many channels does this module monitor?
It provides two independent channels for dual thrust monitoring.
Q3: Can it operate under harsh industrial conditions?
Yes, it maintains accuracy under vibration, temperature extremes, and electrical noise.
Q4: Is predictive maintenance supported?
Yes, early detection of abnormal thrust positions allows timely maintenance actions.
Q5: Can the module be replaced without shutting down machinery?
Yes, it features a hot-swappable design for minimal disruption.
Q6: How does it integrate with the 3300 System?
It connects seamlessly to the 3300 rack for centralized monitoring, alarms, and trending.
