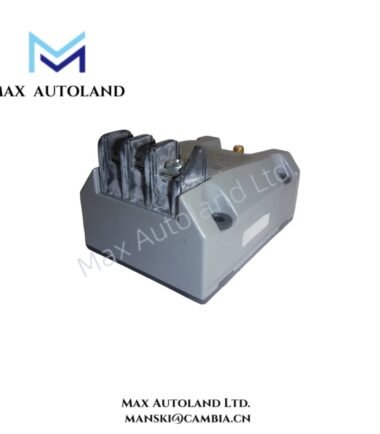

Custom Proximitor Sensor Module Bently Nevada 124534-01

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 124534-01 operates as part of a matched eddy-current measurement chain consisting of the probe, extension cable, and signal conditioning electronics. Therefore, the electrical characteristics of these components must remain compatible with the calibrated system configuration.

The output scaling represents mechanical gap variation as a DC voltage change. The nominal sensitivity is 200 mV/mil, equivalent to 7.87 V/mm. Consequently, changes in the probe-to-target distance produce corresponding changes in the conditioned output signal.

During commissioning, technicians should validate the probe gap voltage against the applicable system documentation. A gap voltage near -10 VDC is commonly used as a reference target in many Bently Nevada proximity measurement systems; however, the required acceptance range depends on the specific probe system and calibration configuration.

Correct probe scaling also supports rotor dynamics measurement. Changes in shaft position and dynamic shaft motion must remain within the calibrated linear range of the complete transducer system. In addition, correct cable routing and shielding help reduce cross-talk between adjacent measurement channels.

Frequently Asked Questions (FAQ)

Q: Can the 124534-01 operate with any eddy-current proximity probe?
A: No. The module must operate with a compatible probe and extension cable configuration. Probe type and total cable characteristics affect impedance matching and system calibration.

Q: What does the negative DC output represent?
A: The output voltage represents the probe-to-target gap. As the mechanical distance changes, the module converts the corresponding probe impedance change into a proportional DC voltage.

Q: Does the module provide a standalone vibration measurement value?
A: No. The module provides the conditioned electrical signal required by the connected monitoring system. The monitoring equipment processes the signal according to its configured measurement function.

Field Installation Guidelines

Install the module only within a compatible industrial enclosure, monitoring rack, or approved mounting arrangement. Confirm the supply polarity before energizing the circuit.

Use the specified matched probe and extension cable configuration. Do not substitute cable lengths or probe types without confirming the resulting calibration and scaling requirements.

Route proximity system cables separately from high-current power conductors, motor leads, and variable-frequency drive output cables. This practice reduces electromagnetic coupling into the low-level measurement circuit.

Maintain cable shielding according to the applicable Bently Nevada system grounding arrangement. Incorrect shield termination can introduce ground-loop noise or increase susceptibility to electrical interference.

Before placing the machine into service, verify the probe mechanical clearance and measure the static gap voltage. Compare the measured value with the acceptance range defined for the installed transducer system.

Avoid mechanical stress, sharp cable bends, damaged connectors, and unapproved splices. After installation, confirm that each measurement channel responds correctly to controlled changes in probe-to-target distance.
