Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 5501-367 |

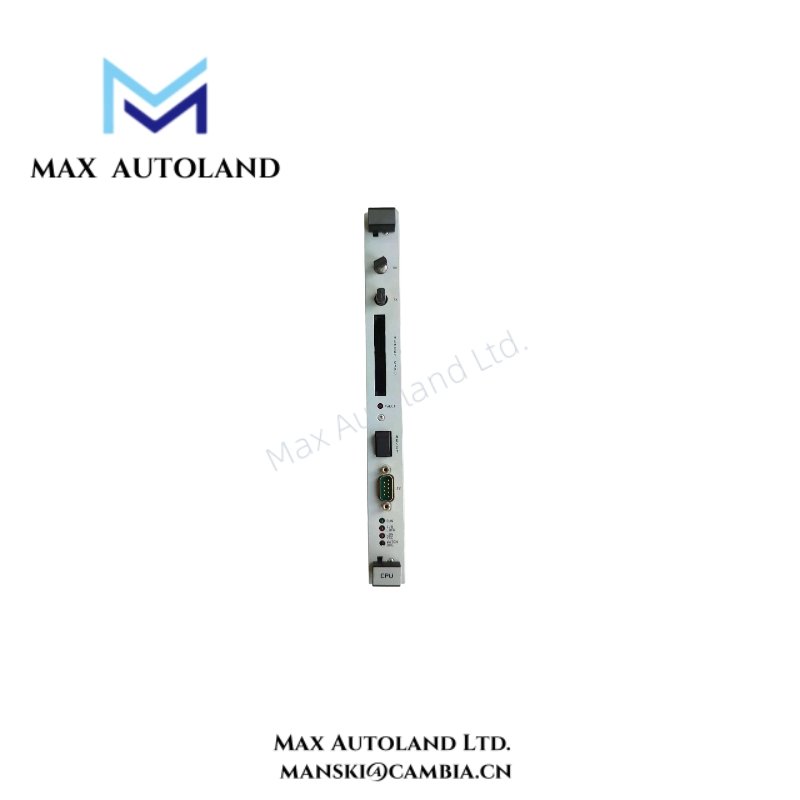

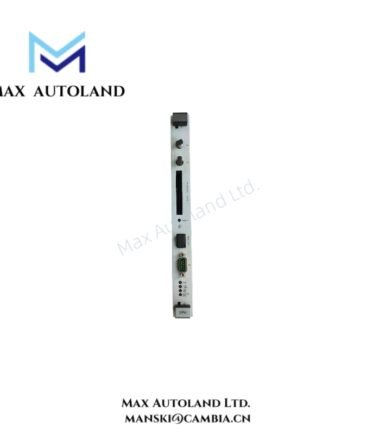

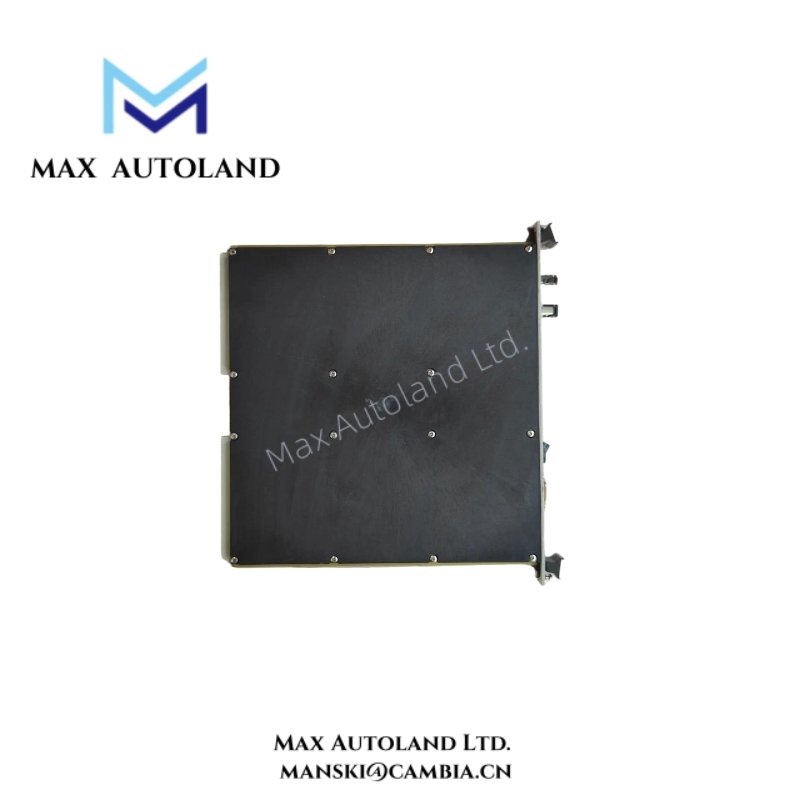

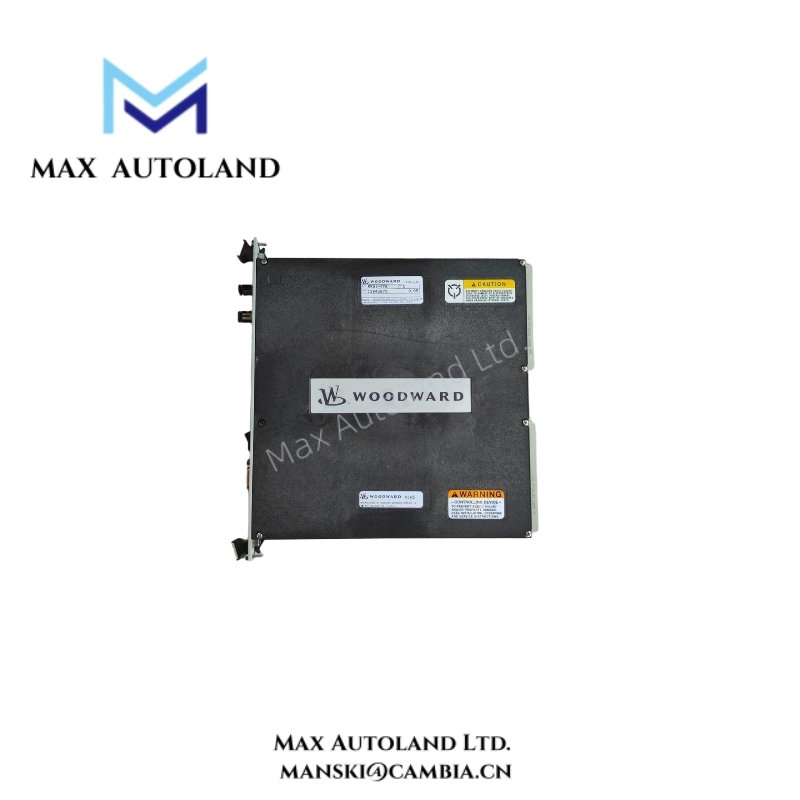

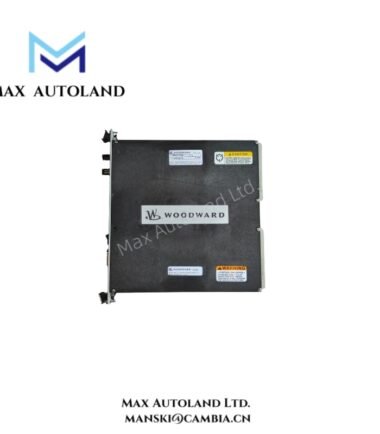

| Module Type | NetCon Actuator Controller CPU Module |
| Processor Type | Embedded digital controller for actuator management |
| Input/Output Channels | Configurable discrete and analog channels |
| Communication Interface | WOODWARD NetCon network |
| Power Supply | 24 VDC nominal, 0.5–1 A typical |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Mounting | Rack-mounted or panel-mounted |
| Status Indicators | Power, health, and I/O activity LEDs |
| Electrical Protection | Over-voltage, short-circuit, and isolation protection on I/O lines |
| Response Time | < 5 ms typical for discrete signals |
| Reliability | MTBF > 100,000 hours for continuous industrial operation |
| Regulatory Compliance | CE, UL recognized component |
| Dimensions | 7.5 x 2.5 x 5 inches (rack module size) |
| Typical Applications | Engine, turbine, and industrial actuator control systems |
FAQ
A1: It manages actuator control with high precision while communicating with NetCon network systems.
Q2: Can this module withstand industrial environments?
A2: Yes, it tolerates vibration, temperature changes, and electrical noise typical in industrial settings.
Q3: How does the module indicate faults or status?
A3: Integrated LEDs display power, health, and I/O activity for immediate monitoring.
Q4: What types of actuators can it control?
A4: It supports both digital and analog actuators commonly used in engines and turbines.
