Overview
Specification
| Parameter | Specification |
|---|---|

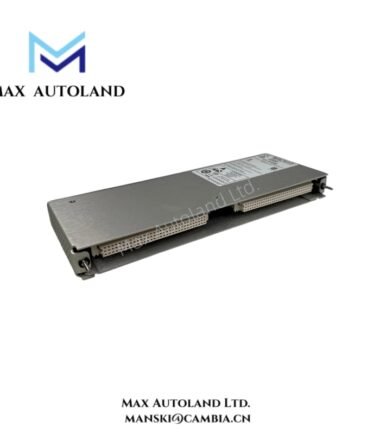

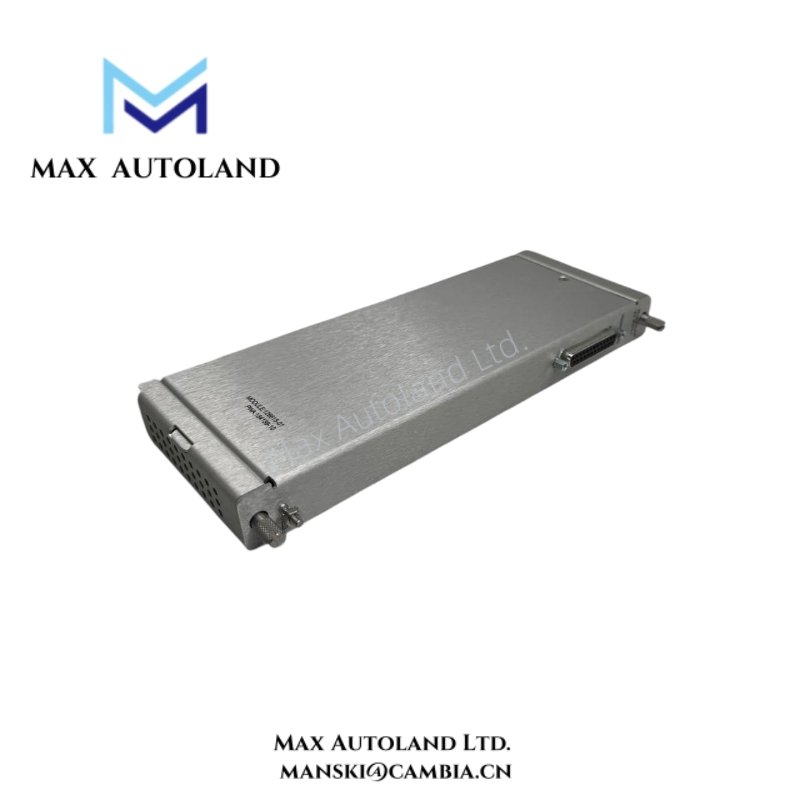

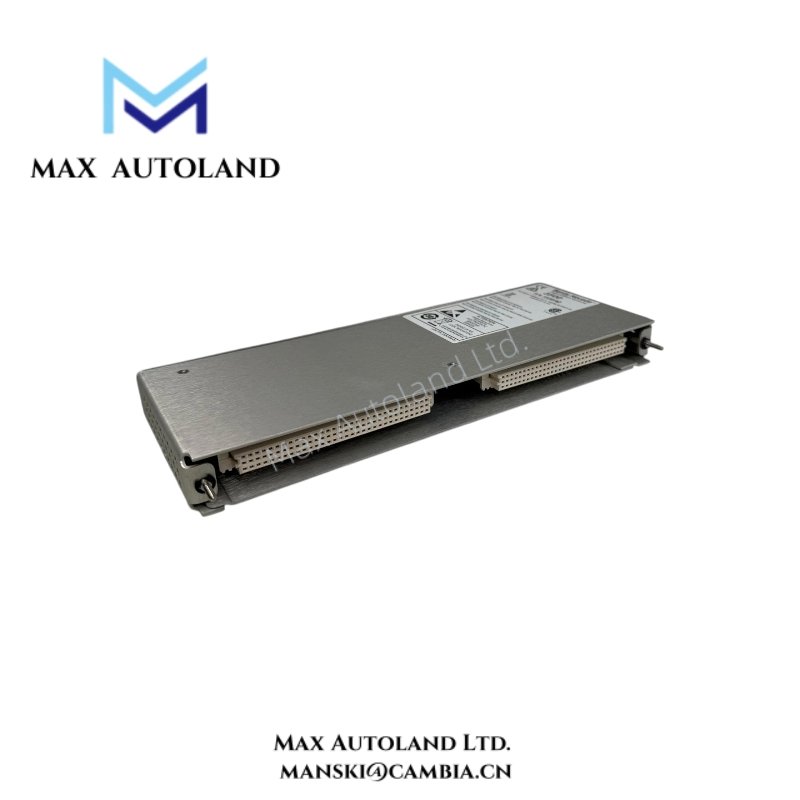

| Model | 3500 Proximitor I/O Module |
| Part Number | 184139-10 |
| Input Type | AC or DC proximity probes (variable reluctance or eddy current) |
| Number of Channels | 4 or 8, depending on module configuration |
| Signal Output | Standardized 0–5 V or 4–20 mA for 3500 system compatibility |
| Accuracy | ±1% of full scale typical |
| Operating Temperature | –20°C to 70°C (–4°F to 158°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Power Supply | 115/230 V AC ±10%, 50/60 Hz |
| Frequency Response | DC to 10 kHz, depending on probe type |
| Mounting | Compatible with 3500 system rack or panel mount |
| Diagnostics | LED indicators and self-test for rapid troubleshooting |
| Certifications | CE, UL, cUL, IEC compliant |
| Optional Features | Remote test, hot-swappable modules, signal conditioning |
FAQ
It supports AC or DC proximity probes, including eddy current and variable reluctance types.
Q2: How many channels does the module provide?
The module can support 4 or 8 channels depending on configuration.
Q3: Is it suitable for harsh industrial environments?
Yes, it operates reliably under vibration, temperature extremes, and electrical noise.
Q4: Can the module be serviced without system shutdown?
Yes, it features a hot-swappable design for maintenance without downtime.
Q5: Does it support diagnostics for troubleshooting?
Yes, it includes LED indicators and self-test functionality for rapid fault detection.
Q6: How does it integrate with the 3500 system?
It connects seamlessly to the 3500 System rack for centralized monitoring and alarm management.
