Overview
Specification
| Specification | Details |
|---|---|

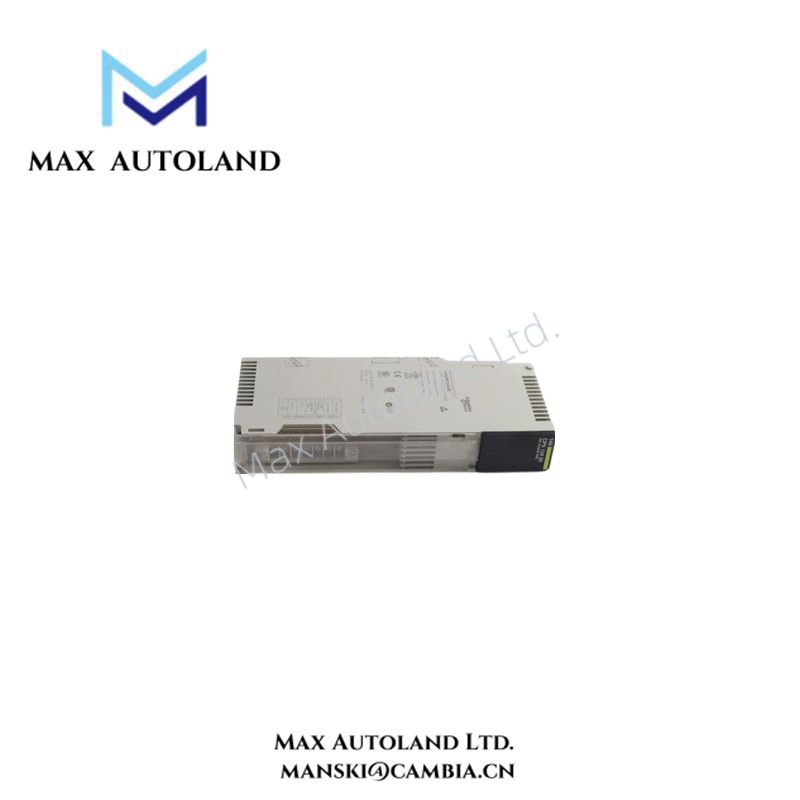

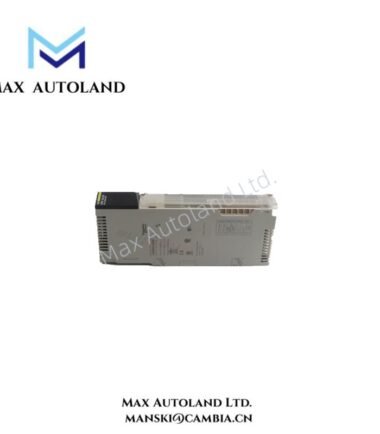

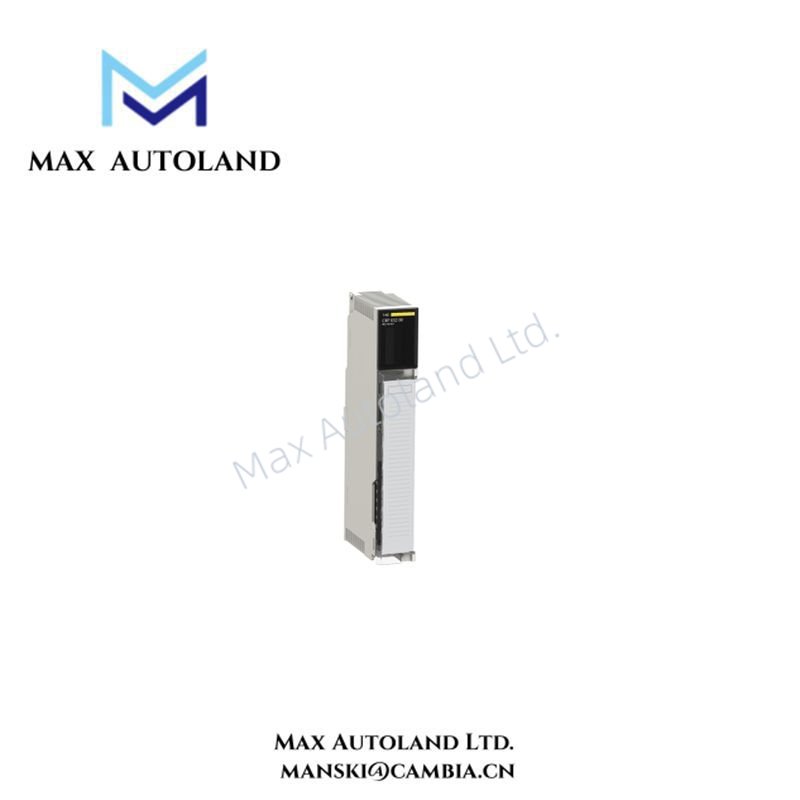

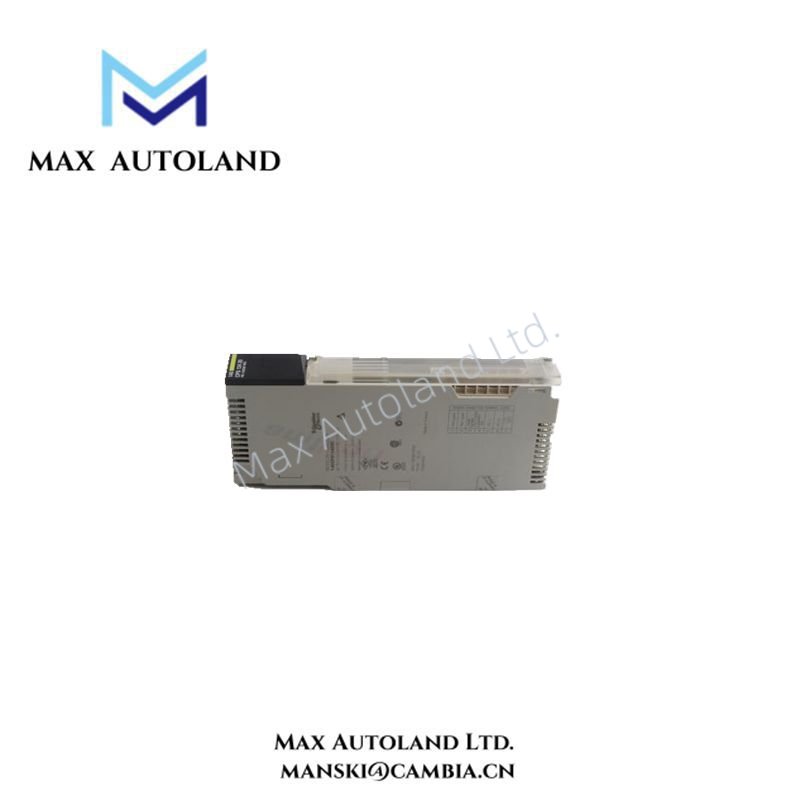

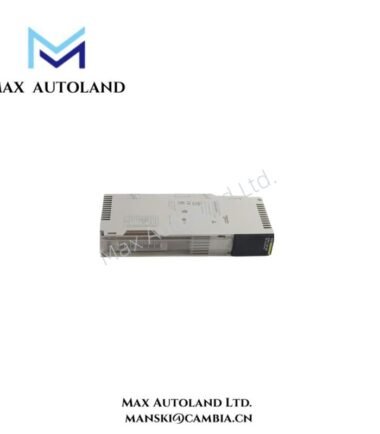

| Product Range | Modicon Quantum automation platform |
| Product Type | Power supply module |
| Power Supply Type | Redundant |
| Input Voltage | 115 V AC (93–138 V) 47–63 Hz230 V AC (170–276 V) |
| Input Current | 1100 mA at 115 V AC600 mA at 230 V AC |
| Inrush Current | 38 A at 115 V AC19 A at 230 V AC |
| Rated Power | 130 VA |
| Associated Fuse Rating | 2 A, slow-blow |
| Harmonic Distortion | ≤10% of fundamental RMS value |
| Output Voltage | 5.1 V DC |
| Output Current | 11 A at 60 °C standalone10 A at 60 °C redundant |
| Output Overvoltage Protection | Internal |
| Output Overload Protection | Internal |
| Power Dissipation | 6 + (1.5 × Iout) where Iout is in A |
| Alarm Output | 1 NC 6 A 220 V for power supply fault |
| Local Signalling | 1 LED (green) for power OK |
| Marking | CE |
| Module Format | Standard |
| Net Weight | 0.65 kg |
FAQ
Q: Is the 140CPS12420 brand new and original?
A: Yes, the 140CPS12420 is fully original and supplied directly from Schneider Electric.
Q: How quickly can this power supply be shipped?
A: We maintain stock for immediate shipment. Delivery typically occurs within 3 days to 2 weeks depending on order quantity.
Q: Which shipping carriers are available?
A: We commonly use DHL, UPS, and FedEx for safe and timely delivery.
Q: What if the module has a quality issue?
A: We offer a 30-day return policy for any quality-related concerns.
Q: Can this module handle AC input fluctuations?
A: Yes, the 140CPS12420 supports both 115 V AC and 230 V AC and includes built-in protection against overloads and short circuits.
Manual/Datasheet PDF
