Overview
Specification
| Parameter | Specification |
|---|---|

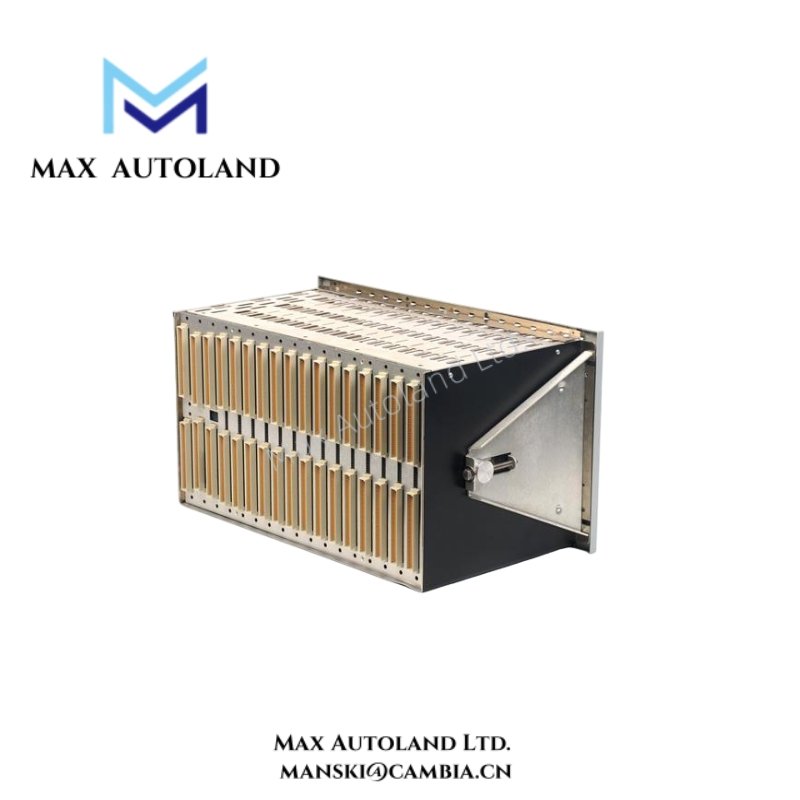

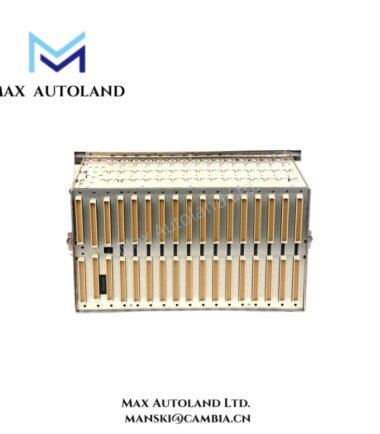

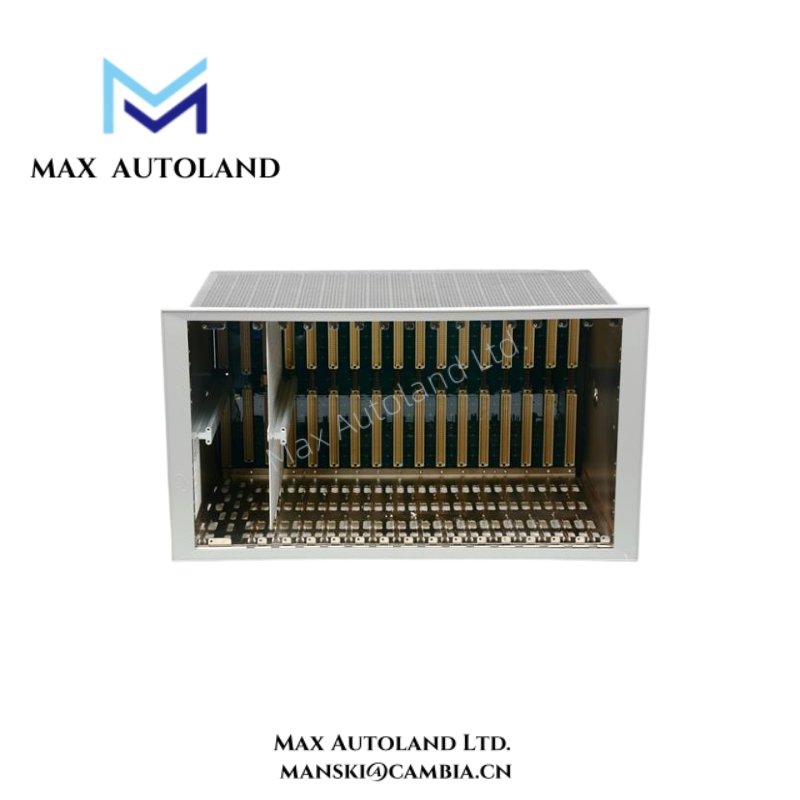

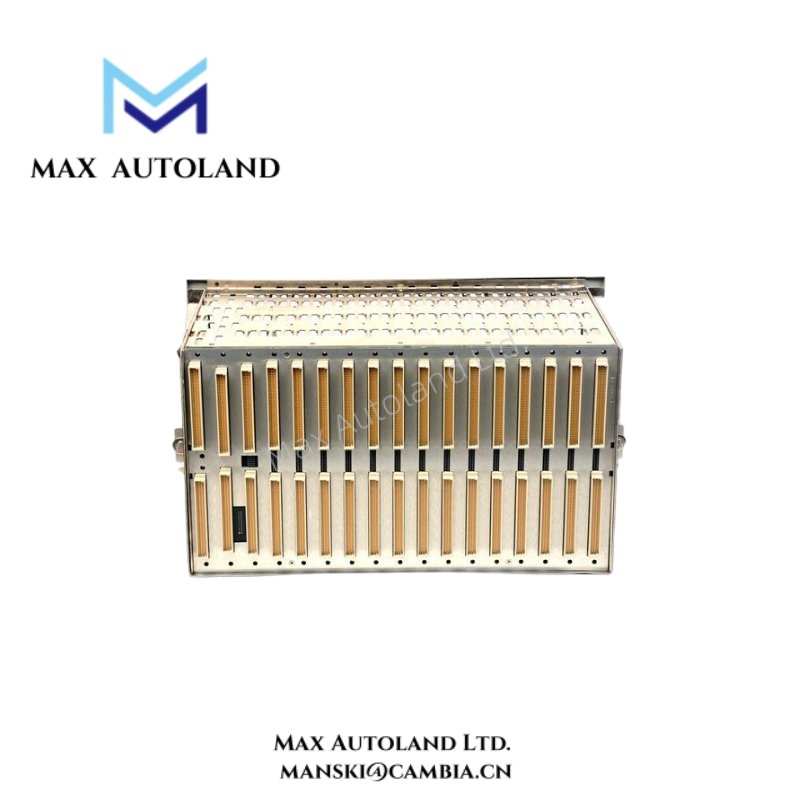

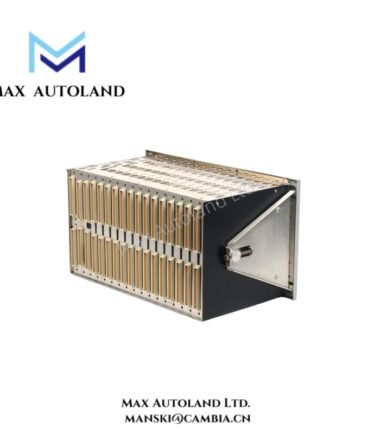

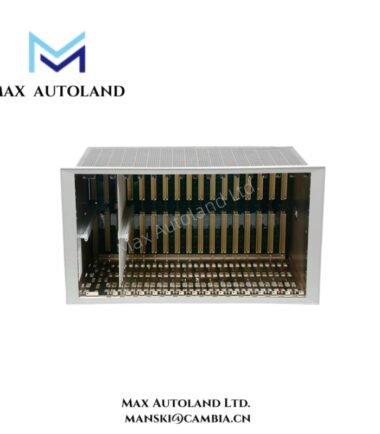

| Model Number | 3500/05‑01‑03‑05‑00‑01 |
| Product Type | System Rack for 3500 Machinery Protection Modules |
| Rack Size | 19-inch EIA Rack, Full-Size (14 module slots) |
| Module Slots | 14 module slots plus reserved positions for power/interface |
| Mounting Options | Panel mount, Rack mount, Bulkhead mount (not available in Mini-Rack) |
| Format Options | Full-size rack with flexible front or rear wiring access |
| Backplane Communication | High-speed integrated backplane for module communication |
| Power Distribution | Uniform power distribution through the backplane |
| Compatible Modules | 3500 Series monitoring, interface, and power supply modules |
| Installation Flexibility | Supports front or rear access depending on mount type |
| Typical Environments | Control rooms, machinery protection centers, industrial cabinets |
| Build Quality | Engineered for industrial resilience and long service life |
FAQ
A1: It organizes and powers 3500 monitoring modules while enabling efficient backplane communication.Q2: How many modules can it support?
A2: It supports up to 14 module slots plus reserved positions for power and interface modules.
Q3: What mounting options are available?
A3: Panel mount, rack mount, and bulkhead mount formats accommodate various installation needs.
Q4: Can I expand the system later?
A4: Yes, the modular design allows adding or replacing modules without extensive rewiring.
Q5: Where is this rack installed?
A5: It installs in industrial cabinets, control rooms, and machinery protection centers.
Q6: Does the rack support backplane communication?
A6: Yes, its integrated backplane enables efficient data exchange between modules.
Bently Nevada Top Products
| 3500 | 3300 | Probe&Cable |
| 3500/05-01-01-00-00-00 | 3300/05-22-00-00 | 990-04-70-01-00 |
| 3500/05-01-01-05-00-01 | 3300/05-24-00-00 | 990-04-70-02-00 |
| 3500/05-01-02-05-00-01 | 3300/45-02-01-03-00 | 990-04-XX-01-00 |
| 3500/05-01-03-05-00-01 | 3300/45-02-02-03-00 | 990-04-XX-03-00 |

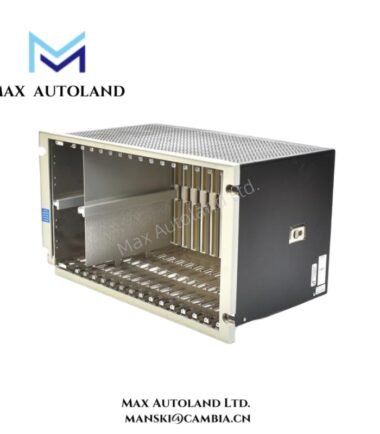

| 3500/05-02-04-00-00-00 | 3300/48-01-01-01-00 | 990-05-50-02-01 |
