Overview

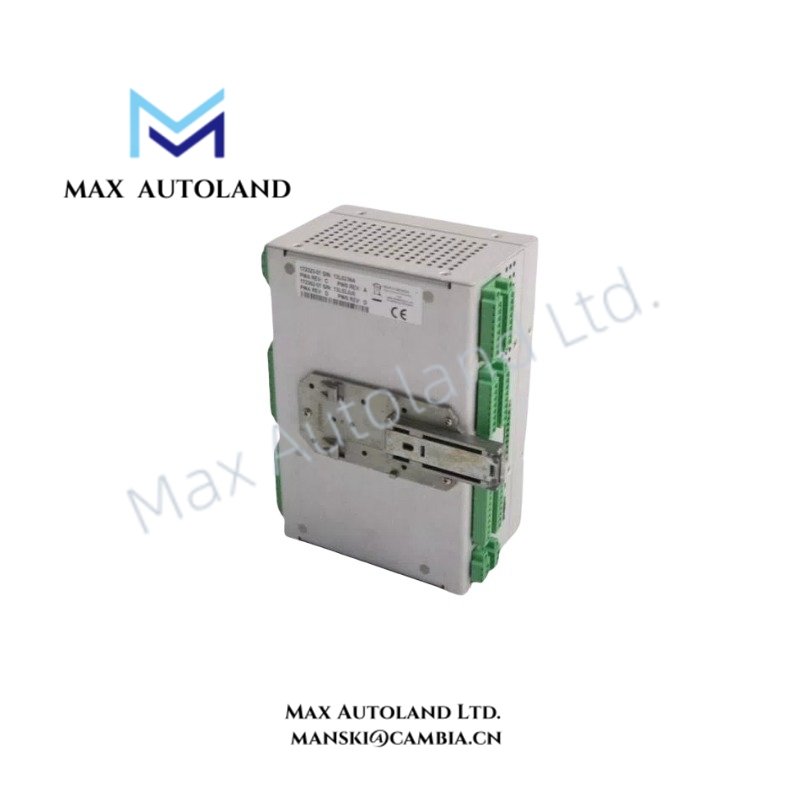

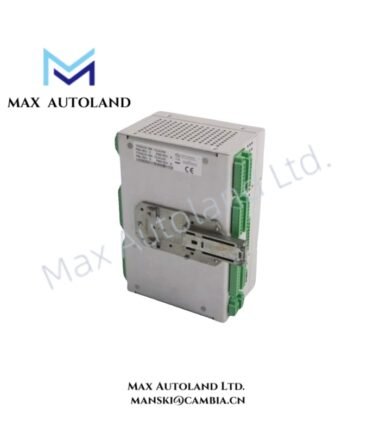

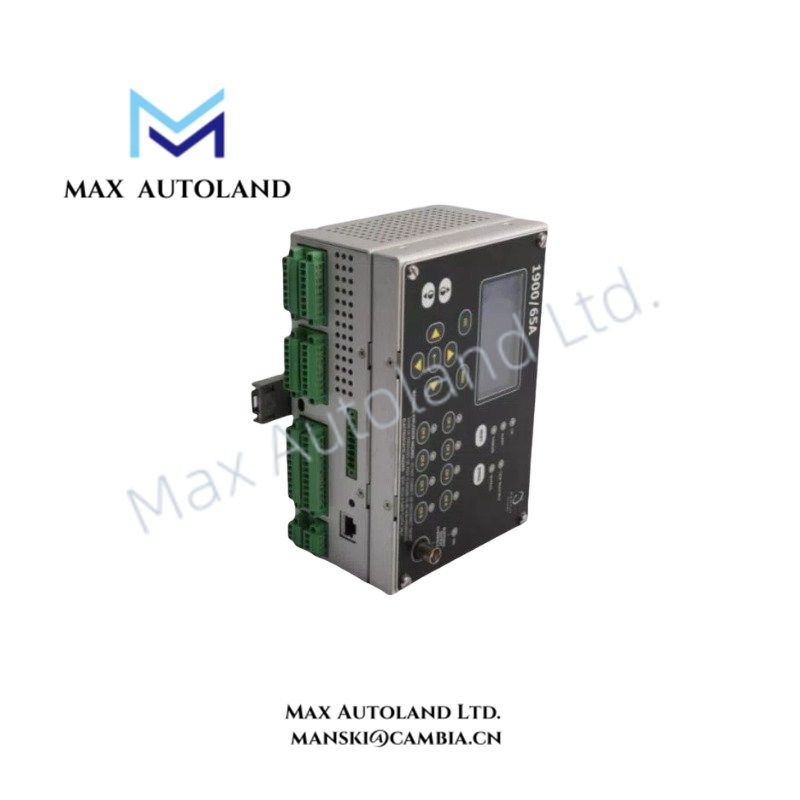

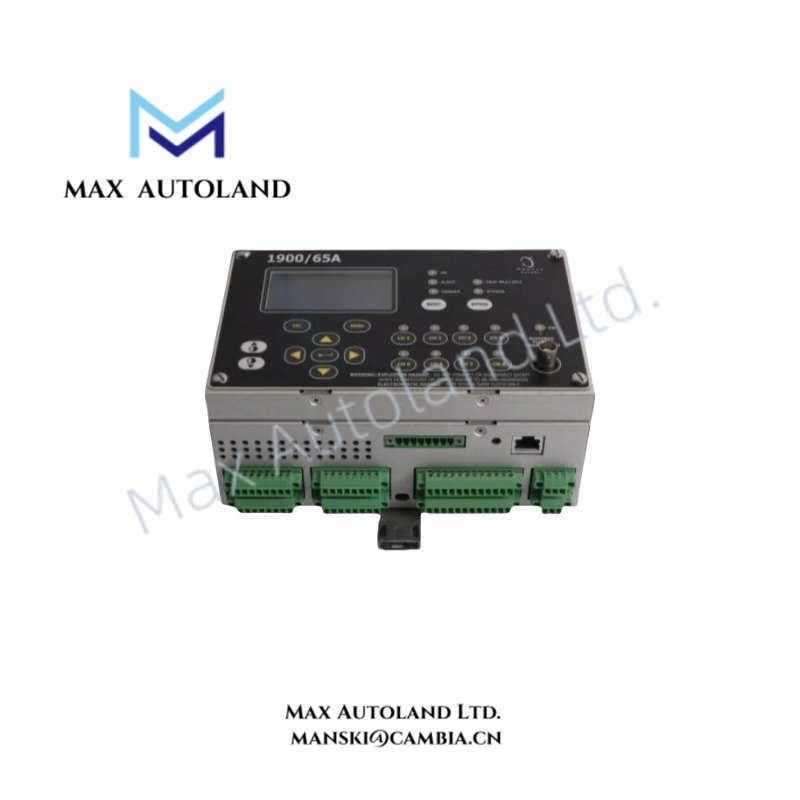

The Bently Nevada 167669-02, also cataloged as the 1900/65A Universal Device Monitor, operates as a standalone machinery monitoring component for multi-channel vibration, position, speed, and temperature signal acquisition within the Bently Nevada monitoring platform.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 167669-02 |
| Brand | Bently Nevada |
| Origin | USA |
| Product Type | Universal Device Monitor |
| Series | 1900/65A Series |
| Power Consumption | Dependent on external power supply configuration |
| Transducer Inputs | 4 channels for vibration, position, speed, or seismic inputs |
| Temperature Inputs | 4 channels supporting RTD and Type E, J, K, T thermocouple inputs |
| Relay Outputs | 6 programmable SPDT alarm relays |
| Analog Outputs | 4 channels, 4-20 mA current outputs |
| Buffered Output | 1 BNC connector for dynamic waveform access |
| A/D Conversion | 24-bit analog-to-digital signal processing |
| Communication Interface | Modbus RTU and Modbus TCP via RS232, RS485, or Ethernet 10/100BASE-T |
| Mounting Method | DIN rail or bulkhead mounting |
| Configuration Software | Windows-based configuration software |
Eddy-Current Signal Processing and Rotor Dynamics Monitoring
The Bently Nevada 167669-02 processes machinery condition signals through configurable measurement channels. Therefore, the device supports eddy-current probe scaling for displacement measurement applications and maintains signal conditioning accuracy for shaft position monitoring.
The monitor evaluates dynamic vibration inputs and supports rotor dynamics analysis through waveform buffering and multi-channel acquisition. Additionally, gap voltage validation functions can verify probe operating conditions using standard -10 VDC target references for eddy-current probe systems.
The unit applies signal filtering and channel configuration parameters to reduce measurement interference. As a result, it supports vibration monitoring tasks where sensor signal integrity and mechanical response analysis are required.
Frequently Asked Questions
Q: Does the Bently Nevada 167669-02 support hot-swapping during operation?
A: No hot-swap capability is specified for this standalone monitor. Installation and replacement procedures should follow the applicable electrical isolation requirements.
Q: What type of field wiring is required for sensor connections?
A: Field wiring should follow industrial instrumentation practices, including shielded cable usage, proper shield termination, and separation from high-current power conductors.
Q: Can the monitor communicate directly with a control system?
A: Yes. The unit provides Modbus RTU and Modbus TCP communication interfaces through supported RS232, RS485, or Ethernet connections.
Field Installation Guidelines
- Install the monitor on a DIN rail or suitable bulkhead surface according to mechanical mounting requirements.
- Verify power supply compatibility before connecting field wiring.
- Use shielded instrumentation cables for vibration probes, position sensors, and temperature inputs.
- Connect cable shields according to the plant grounding standard to reduce electrical interference.
- Route signal cables separately from motor feeders, switching circuits, and high-voltage conductors.
- Configure sensor type, measurement range, alarm thresholds, and communication parameters through the Windows-based configuration software before commissioning.
- Confirm eddy-current probe wiring polarity and validate gap voltage conditions before placing machinery into service.
