Overview
Specification
| Parameter | Specification |
|---|---|

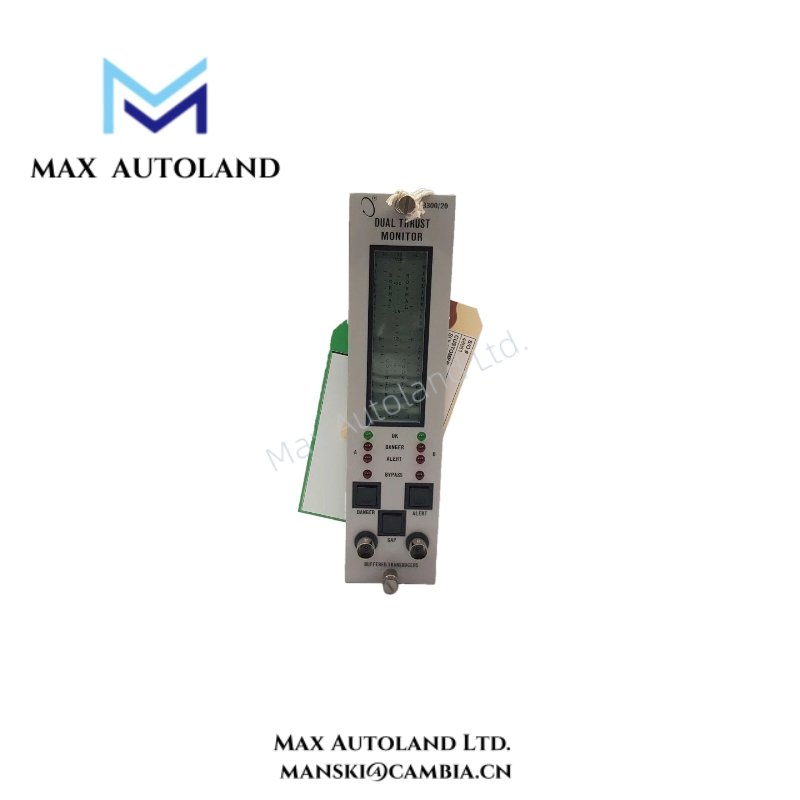

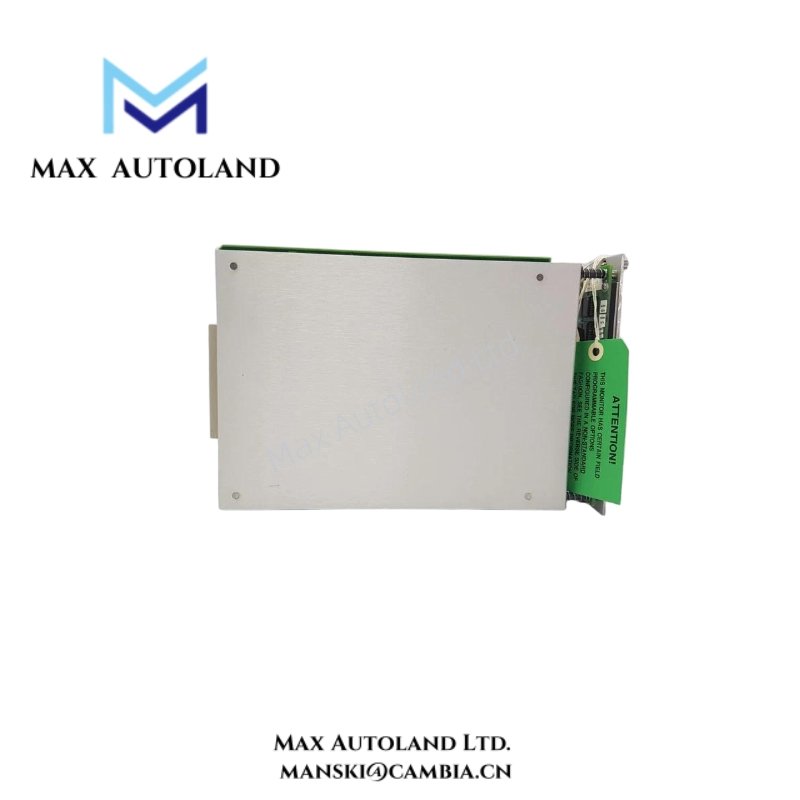

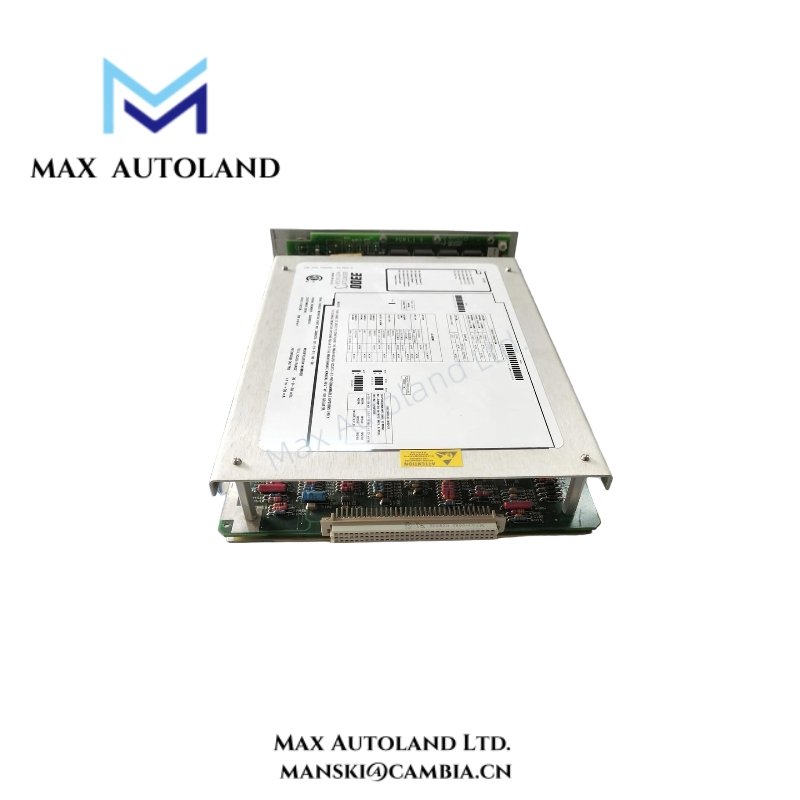

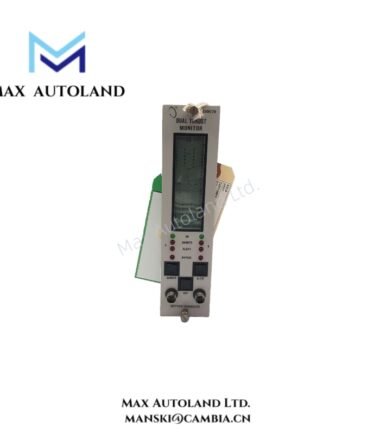

| Model | 3300 Dual Thrust Monitor |
| Part Number | 135322-01 |
| Measurement Channels | 2 independent thrust channels |
| Input Type | Proximity probes or non-contact displacement sensors |
| Measurement Range | ±50 mils (±1.27 mm) typical; configurable per application |
| Accuracy | ±1% of full scale typical |
| Response Time | < 1 second for transient detection |
| Alarm Points | 2 per channel: warning and shutdown levels |
| Power Supply | 115/230 V AC ±10%, 50/60 Hz |
| Operating Temperature | –20°C to 70°C (–4°F to 158°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Mounting | Panel or rack mount compatible with 3300 system |
| Communication | Fully integrated with 3300 system network |
| Certifications | CE, UL, cUL, IEC compliant |
| Additional Features | Self-test diagnostics, LED indicators, hot-swappable modules |
FAQ
It supports two independent channels for simultaneous axial displacement monitoring.
Q2: What types of sensors are compatible with this module?
It supports proximity probes and non-contact displacement sensors.
Q3: Can it detect transient thrust excursions?
Yes, it provides <1-second response for fast detection of thrust events.
Q4: Is the module suitable for harsh industrial conditions?
Yes, it operates reliably under vibration, temperature extremes, and electrical noise.
Q5: How does it integrate with the 3300 monitoring system?
The monitor connects to the 3300 System network for centralized data acquisition and alarms.
Q6: Can modules be serviced without shutting down machinery?
Yes, hot-swappable modules allow maintenance without interrupting system operation.
