Overview
Specification
| Parameter | Specification |
|---|---|

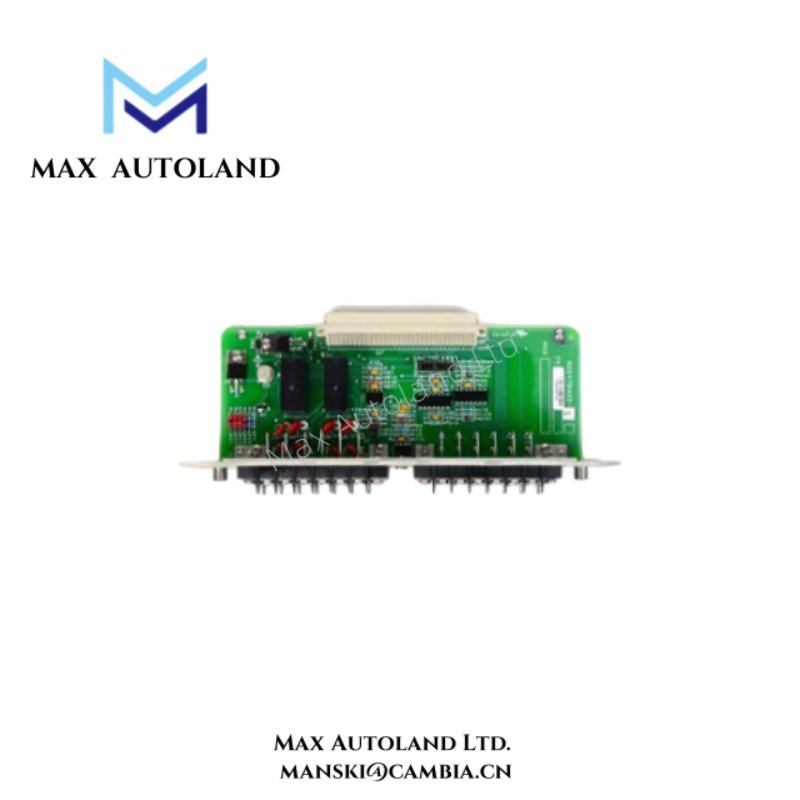

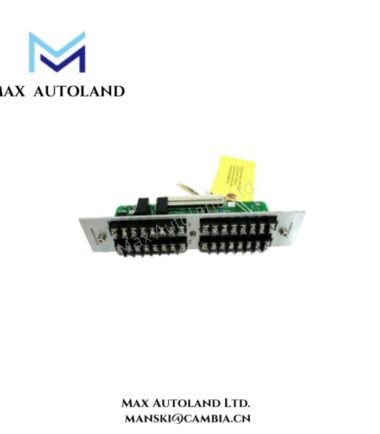

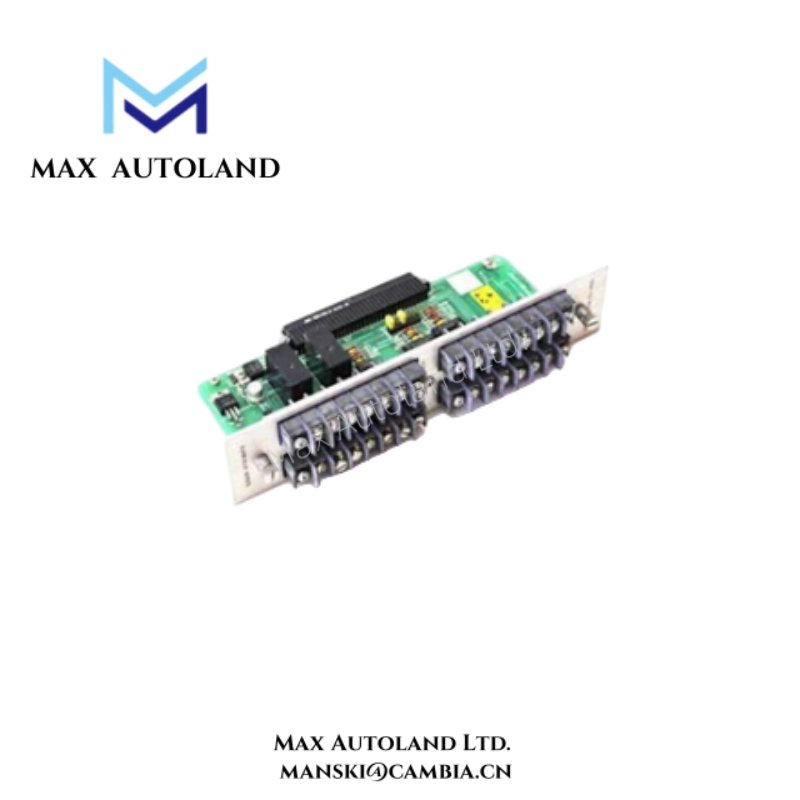

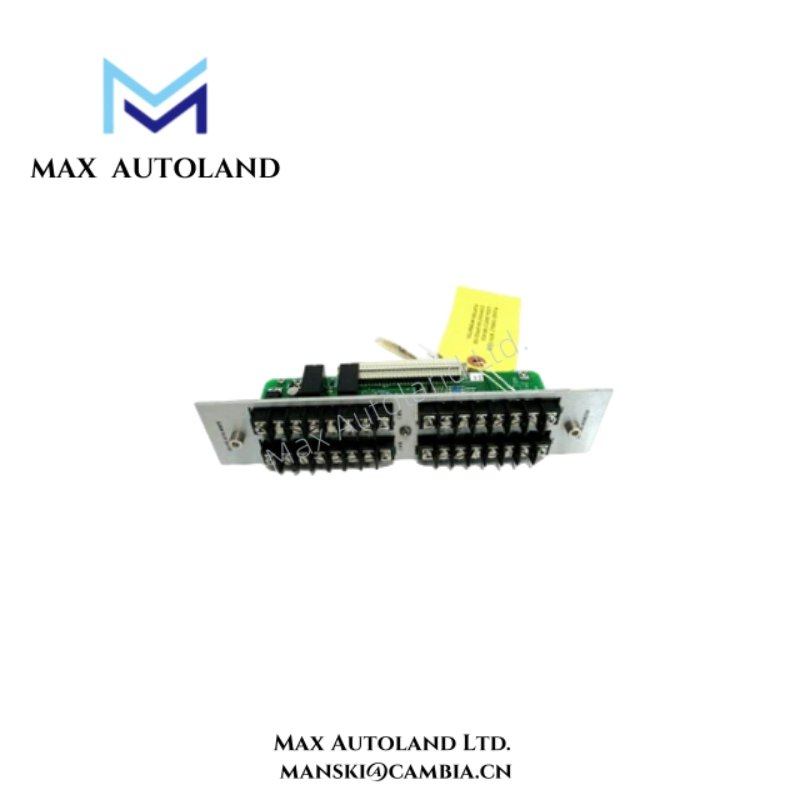

| Model | 3300 Dual Velocity Monitor Module |
| Part Number | 84134-01 |
| Input Type | Proximity probes, velocity transducers |
| Measurement Channels | 2 independent velocity channels |
| Signal Output | 4–20 mA or 0–5 V analog outputs |
| Accuracy | ±2% of full scale typical |
| Operating Temperature | –20°C to 70°C (–4°F to 158°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Power Supply | 115/230 V AC ±10%, 50/60 Hz |
| Frequency Response | DC to 10 kHz typical |
| Mounting | 3300 System rack compatible |
| Diagnostics | LED indicators, self-test, and status reporting |
| Certifications | CE, UL, cUL, IEC compliant |
| Optional Features | Remote test, configurable alarm setpoints, signal conditioning |
FAQ
It provides two independent channels for dual vibration velocity monitoring.
Q2: Can it operate under extreme industrial conditions?
Yes, it maintains accurate measurement under vibration, temperature, and electrical noise.
Q3: Is it compatible with the 3300 System rack?
Yes, it integrates seamlessly for centralized monitoring and alarm management.
Q4: Does it support predictive maintenance?
Yes, early detection of vibration anomalies enables timely preventive maintenance.
Q5: Are diagnostics available for this module?
Yes, LED indicators, self-test functions, and status reporting simplify troubleshooting.
Q6: Can the module be replaced without shutting down machinery?
Yes, the hot-swappable design allows replacement without disrupting operations.
