Overview
Specification
| Parameter | Specification |
|---|---|

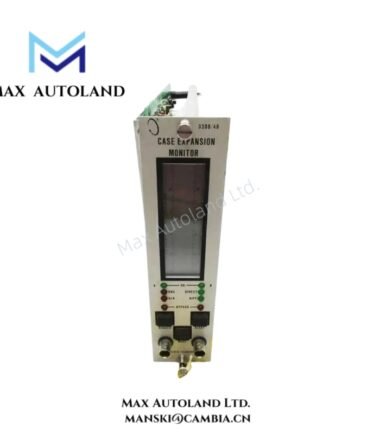

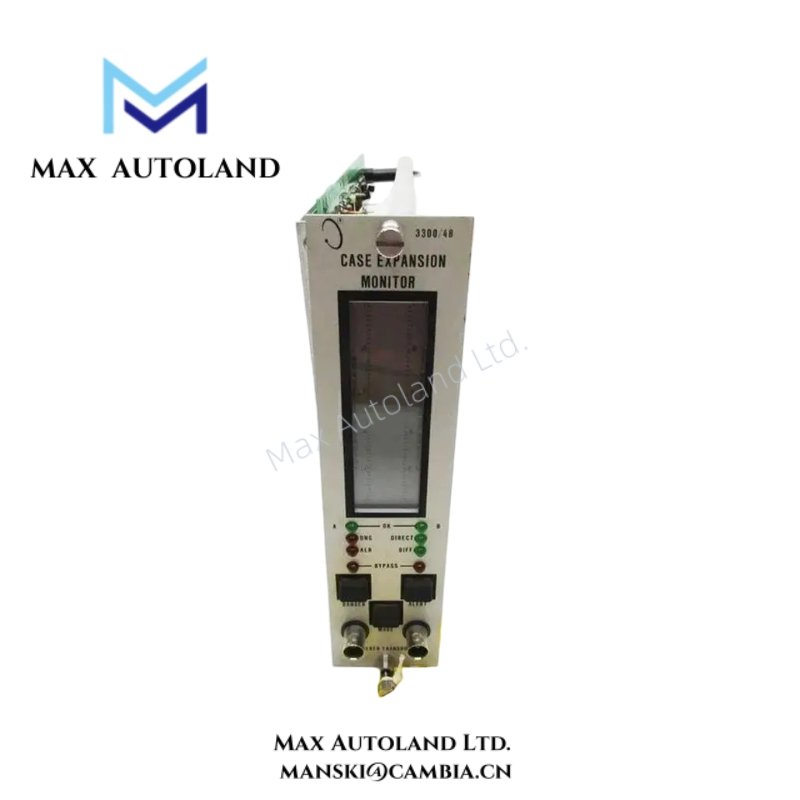

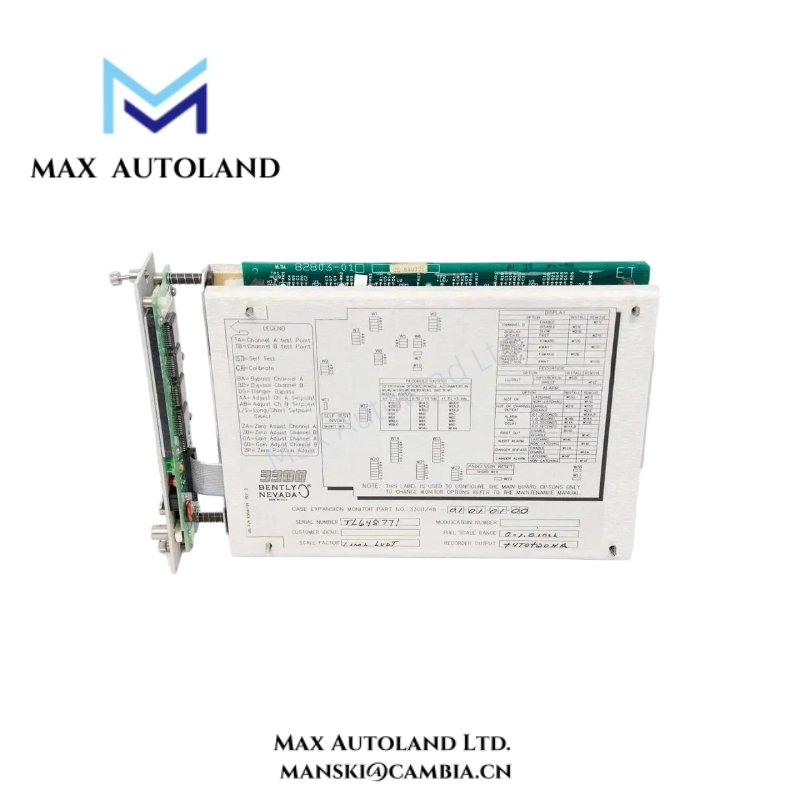

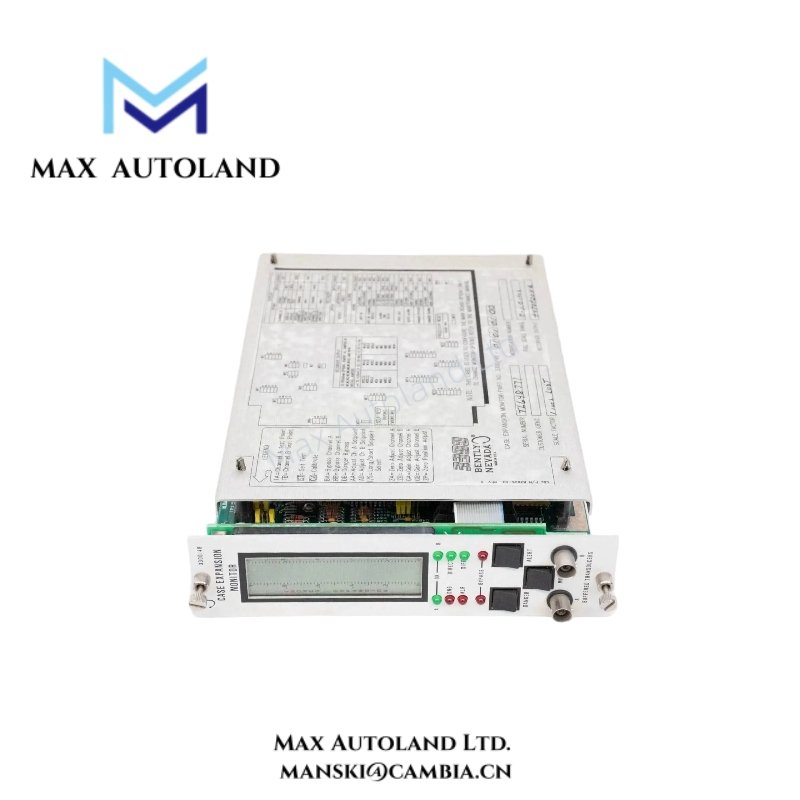

| Model Number | 3300/48‑02‑01‑00‑00 |
| Product Type | Case Expansion Monitor for 3300 XL NSv |
| Measurement Type | Machinery casing expansion |
| Compatible Systems | 3300 XL NSv Proximity Transducer Systems |
| Module Slots | 1 module slot, single-channel measurement |
| Output Signals | 4–20 mA analog, optional relay alarms |
| Input Voltage | 24 VDC typical |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Vibration Resistance | 5 g, 10–500 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| Accuracy | ±0.002 inch or ±50 µm |
| Response Time | <50 ms |
| Weight | ~1.3 kg |
| Mounting Options | 3300 XL NSv standard rack or panel mount |
| Typical Environments | Control rooms, machinery protection centers, industrial cabinets |
| Build Quality | Rugged industrial design for long-term reliability |
FAQ
A1: It measures machinery casing expansion to prevent stress and misalignment in rotating equipment.
Q2: Which systems is it compatible with?
A2: Fully compatible with 3300 XL NSv proximity transducer systems.
Q3: What outputs are available?
A3: Provides 4–20 mA analog output and optional relay alarms.
Q4: Can it withstand industrial vibration and shock?
A4: Yes, designed for 5 g vibration and 30 g shock resistance.
Q5: What are the operating temperature ranges?
A5: -40°C to +70°C during operation, and -55°C to +85°C for storage.
