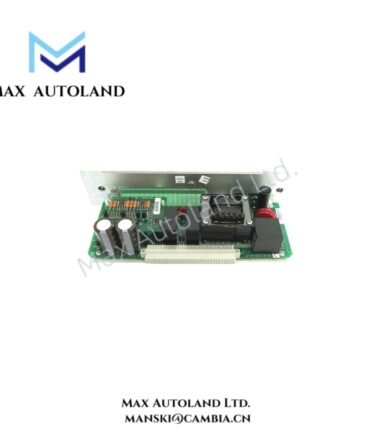

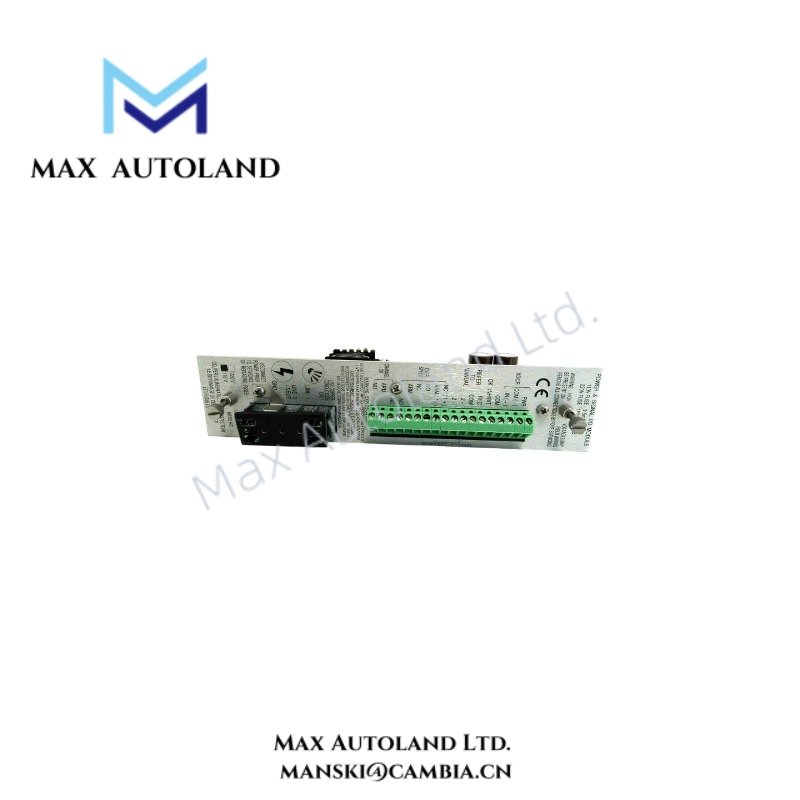

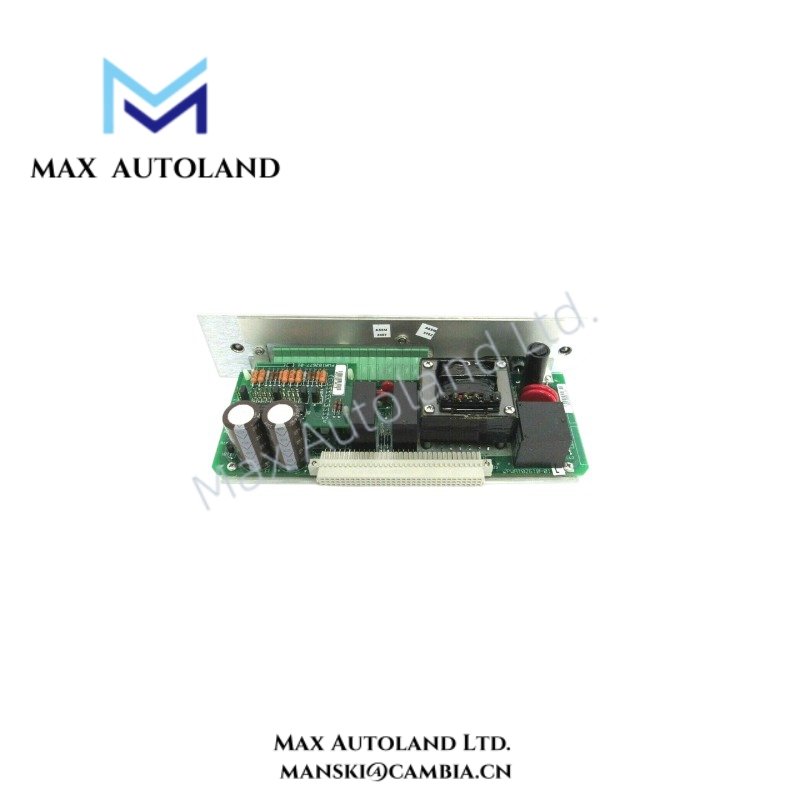

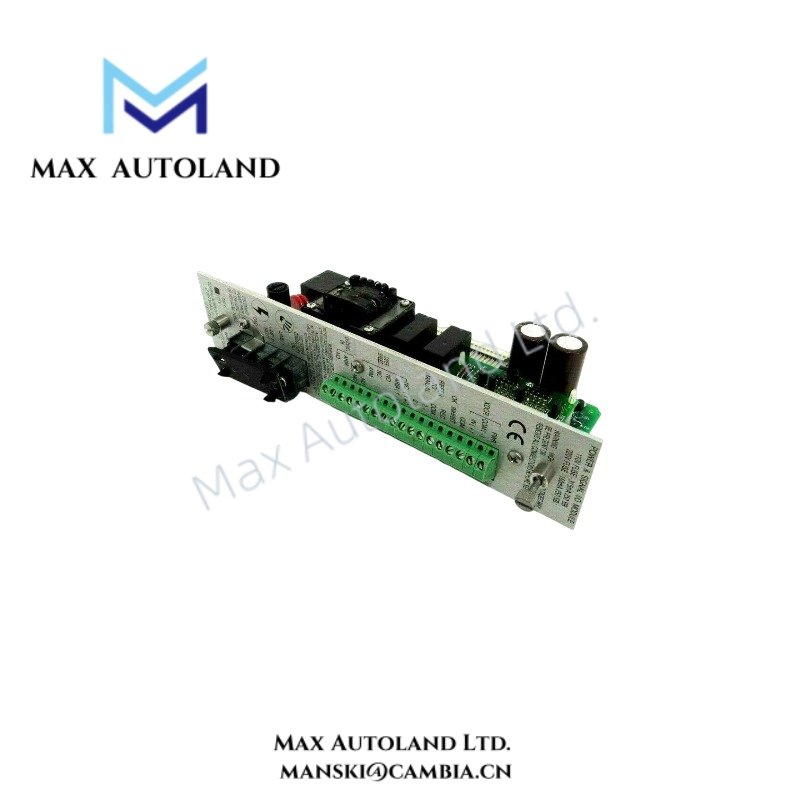

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 102618-01 |
| Brand | Bently Nevada |
| Product Type | Signal/Power Input Card |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Association | Machinery protection and condition monitoring systems; exact rack configuration should be verified |
| Core Function | Signal input interfacing, signal conditioning, and power distribution |
| Input/Output Rating | Approx. 0.15 A, 220 VAC, 50/60 Hz, depending on application configuration |
| Signal Processing | Signal conditioning intended to reduce electrical noise during data acquisition |
| Origin | USA |
| Weight | Approx. 0.7 kg to 0.8 kg |
| Dimensions | Approx. 2.6 x 25.3 x 24 cm; configuration-dependent |
| Operating Temp | -40 deg C to +85 deg C |
| Installation Form | Industrial rack-mounted hardware |
| Application Environment | Control room and industrial machinery monitoring installations |
Machinery Signal Conditioning and Cross-Talk Suppression
The 102618-01 operates within machinery monitoring signal paths where electrical noise and channel interaction can affect measured values. Therefore, installation practices should maintain separation between monitoring circuits and high-energy power conductors.
For eddy-current transducer applications, technicians should validate probe scaling and associated gap voltage values at the complete measurement chain rather than evaluating the input card independently. Where a system configuration specifies a -10 VDC target reference, the measurement must be checked against the applicable probe and transducer documentation.
In addition, shield termination and cable routing influence cross-talk suppression. Correct shielding practices help maintain signal integrity during vibration and rotor dynamics measurements.
Frequently Asked Questions
Q: Does the 102618-01 have a specified hot-swap capability?
A: The provided technical data does not specify hot-swap operation. De-energize or follow the applicable rack maintenance procedure before removing or installing the card.
Q: Can the stated 0.15 A and 220 VAC rating be applied to every installation?
A: No. The stated rating depends on the application configuration. Verify the installed system documentation and terminal arrangement before applying external power.
Q: Can this card be evaluated independently for eddy-current probe calibration?
A: No. Probe scaling and gap voltage validation depend on the complete transducer system, including the probe, extension cable, Proximitor or associated signal conditioning hardware, and configured monitoring channel.
Field Installation Guidelines
- Confirm that the rack slot and mating connector correspond to the 102618-01 hardware configuration before installation.
- Isolate system power according to the applicable plant electrical safety procedure before inserting or removing the card.
- Inspect connector contacts and the card edge interface for contamination, bent contacts, or mechanical damage.
- Route low-level monitoring signal cables separately from high-current AC power wiring and switching circuits.
- Maintain the specified cable shield termination method used by the installed machinery monitoring system.
- Avoid creating multiple unintended shield ground paths that can introduce ground-loop noise.
- Verify channel signal scaling after installation using the complete connected sensor and monitoring chain.
- Record the installed card position and associated field channels during maintenance or replacement activities.
