Overview

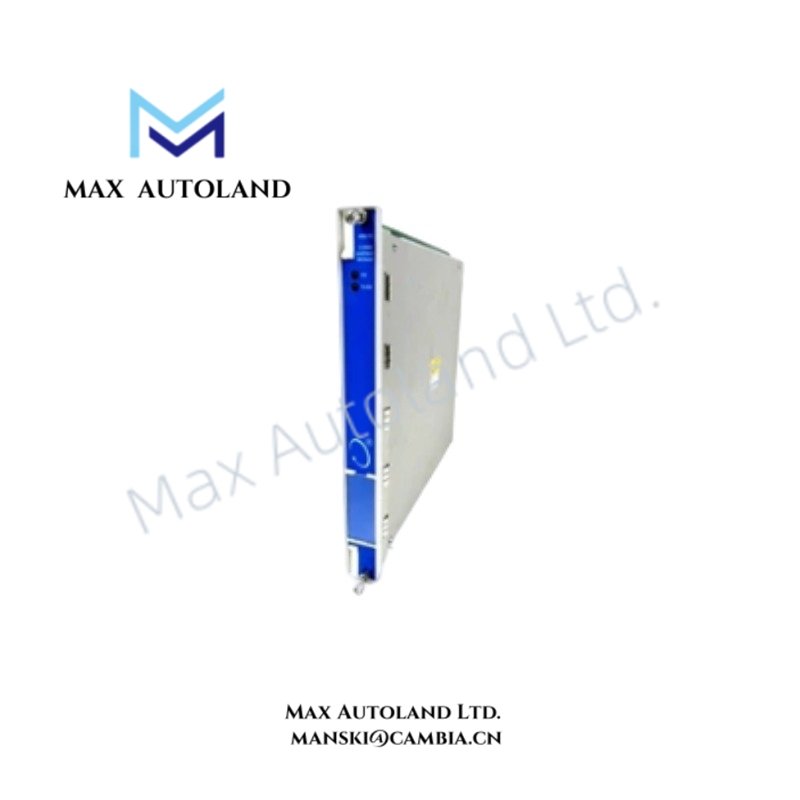

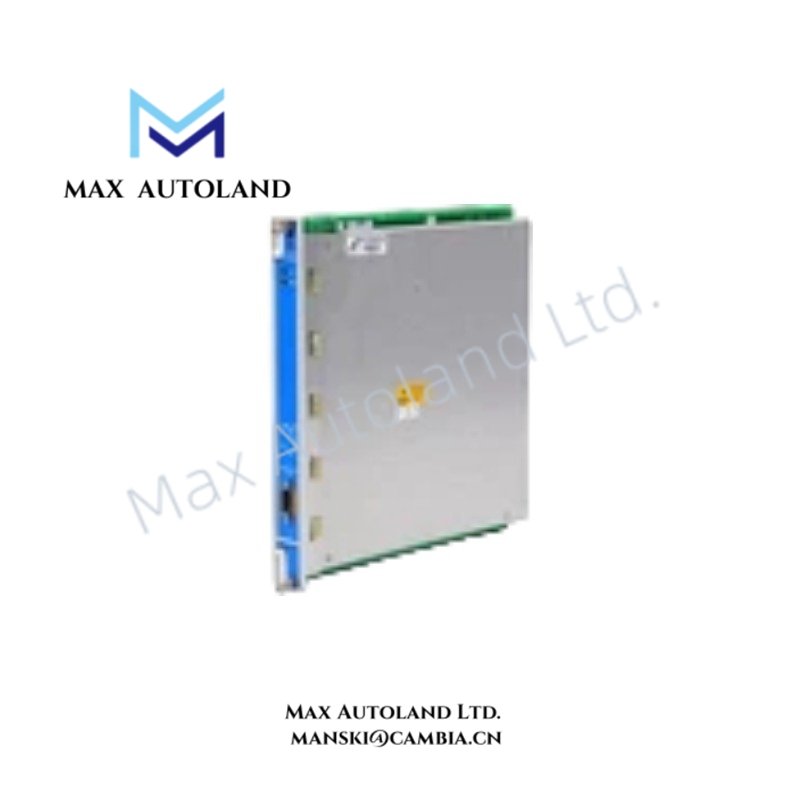

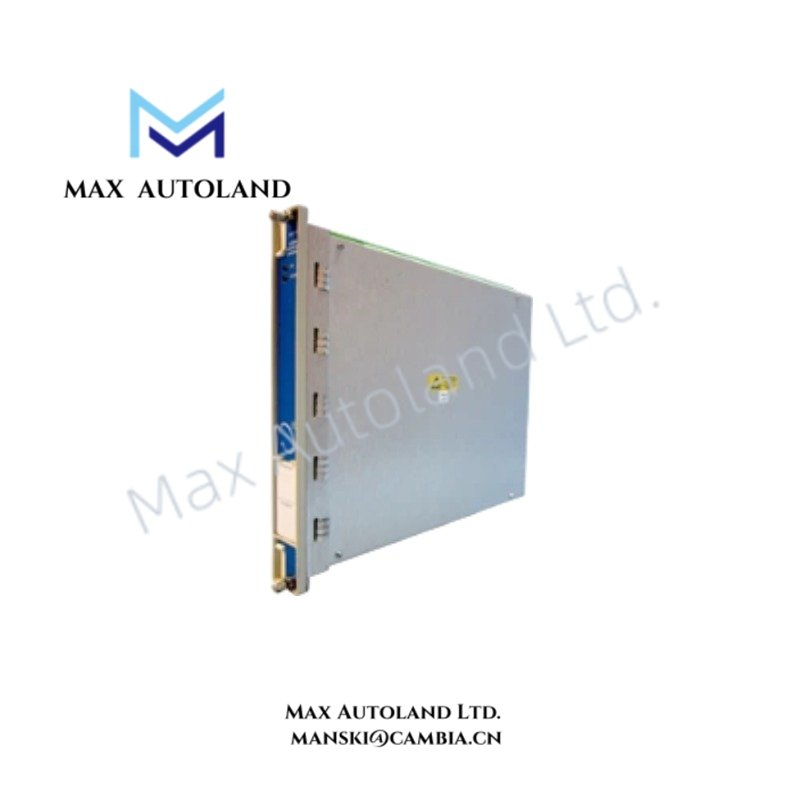

The Bently Nevada 149832-01, also cataloged as the 149832-01 TIM Input Card Module, operates as a dedicated hardware component for signal acquisition and conditioning within Bently Nevada machinery monitoring architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 149832-01 |
| Brand | Bently Nevada |
| Product Type | TIM Input Card Module / I/O Module |
| Origin | USA |
| Operating Temp | -20 deg C to +65 deg C (dependent on rack installation environment) |
| Power Consumption | Rack backplane supplied; value not specified in available technical data |
| Primary Function | Sensor signal acquisition, conditioning, termination, and isolation |
| Supported Inputs | Eddy-current proximity probes, seismic sensors, process variables |
| Signal Processing | High-resolution A/D conversion with configurable digital filtering |
| Electrical Isolation | Field signal isolation for noise and interference reduction |
| Humidity Rating | Up to 95% RH, non-condensing |
| System Integration | Bently Nevada machinery monitoring architectures |
Eddy-Current Signal Processing and Rotor Dynamics Monitoring
The 149832-01 module processes dynamic machine signals through dedicated input conditioning circuits. Furthermore, it supports eddy-current probe signal scaling and validates displacement measurement behavior through controlled gap voltage monitoring. Bently Nevada monitoring architectures commonly use -10 VDC gap voltage targets as a reference point for probe operating condition verification.
The module design supports rotor dynamics analysis by maintaining signal integrity between field sensors and monitoring processors. In addition, input isolation and filtering functions reduce cross-talk effects between adjacent measurement channels during vibration and displacement acquisition.
Frequently Asked Questions
Q: Does the 149832-01 support direct connection of eddy-current proximity probes?
A: The module is designed for machinery monitoring input applications that include eddy-current probe signal acquisition. Sensor compatibility depends on the configured rack subsystem and monitoring hardware.
Q: Does the 149832-01 require a separate field power supply?
A: The module receives operating power through its installed rack interface. External power requirements depend on the specific Bently Nevada system configuration.
Q: Can the 149832-01 be installed in a hot-swap condition?
A: Hot-swap operation depends on the host rack design and system configuration. Field replacement should follow the applicable Bently Nevada rack installation procedure.
Field Installation Guidelines
- Install the 149832-01 module only in the specified Bently Nevada rack or compatible subsystem position.
- Verify rack backplane compatibility before inserting the module.
- Maintain proper separation between sensor wiring and high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the system grounding specification and avoid multiple grounding points that may introduce ground loops.
- Confirm proximity probe wiring polarity and signal reference before system startup.
- Check input channel configuration and sensor scaling parameters after installation.
- Perform signal validation before placing the machinery monitoring channel into operational service.
