Overview

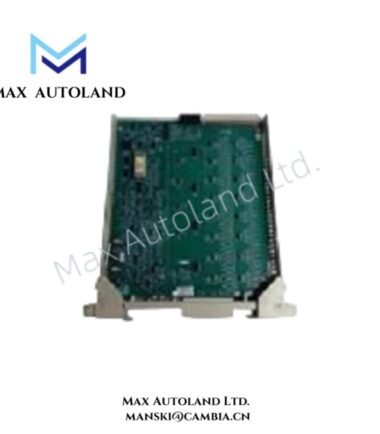

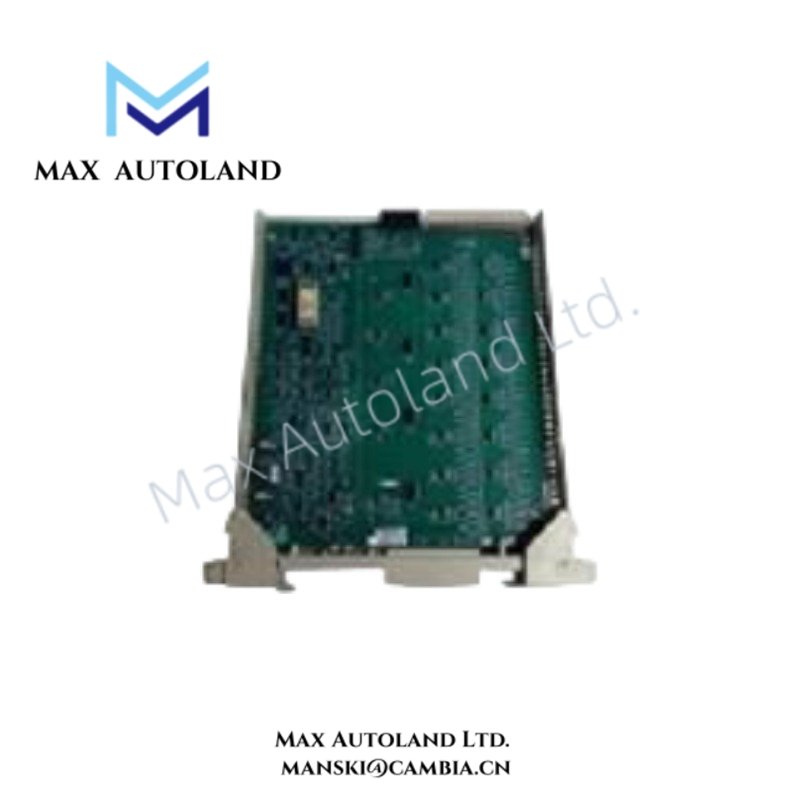

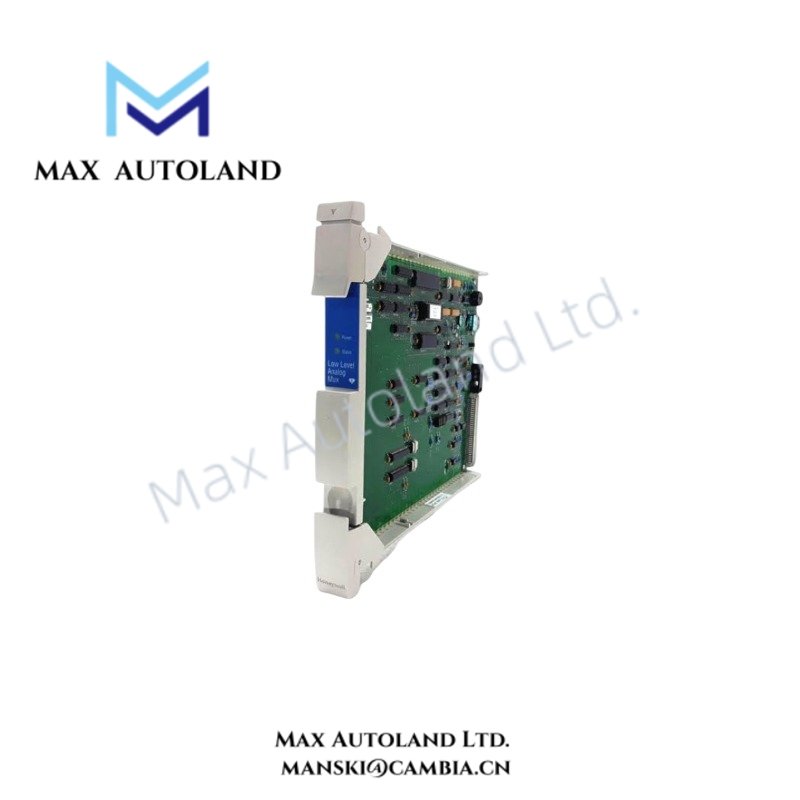

Configured for discrete signal acquisition in Honeywell Process Intelligent I/O systems, the Honeywell MU-PDIY22-80363972-100 (MU-PDIY22 Digital Input Module) provides direct electrical interface execution for 24 VDC field contact monitoring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-PDIY22 / 80363972-100 |
| Brand | Honeywell |
| Origin | United States |
| Module Type | Digital Input Module |
| System Platform | Honeywell Process Intelligent I/O, Experion PKS, TDC 3000 / TPS |
| Input Channels | 32 Digital Input Channels |
| Input Voltage | 24 VDC nominal |
| Input Type | Dry Contact, Field Powered Discrete Input |
| Signal Processing | Contact debounce filtering and input conditioning |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Communication Interface | Process I/O Backplane Interface |
| Diagnostics | Channel status, module status, fault indication |
| Mounting Type | Process I/O Card File / Backplane Assembly |
| Operating Temp | 0 deg C to +60 deg C |
| Relative Humidity | 10% to 90% RH, non-condensing |
| Power Consumption | Low power consumption through Process I/O backplane |
Channel Isolation and DCS Signal Processing
The MU-PDIY22 applies channel-to-channel isolation to separate field discrete circuits from each other and from the Process I/O backplane. Therefore, the module reduces the influence of field wiring noise, voltage transients, and ground potential differences during signal acquisition.
In addition, the module performs input filtering and signal conditioning before transferring discrete states to the controller. The design supports connection of dry contacts, relay outputs, limit switches, push buttons, and proximity-based switching devices.
For Honeywell process control architectures, digital modules typically operate alongside analog process interfaces using standardized DCS communication structures. The isolation design allows the I/O subsystem to maintain stable signal interpretation in mixed field environments.
Frequently Asked Questions
Q: Does the MU-PDIY22 support hot-swap replacement?
A: The module is designed for Process I/O rack installation. Hot-swap capability depends on the specific Honeywell I/O chassis configuration and system rules. Verify the installed rack documentation before performing online replacement.
Q: How does the MU-PDIY22 handle field signal interference?
A: The module uses input conditioning and isolation methods to reduce electrical interference effects from field wiring. Proper cable routing and grounding practices remain required during installation.
Q: Can the MU-PDIY22 directly measure analog signals?
A: No. The MU-PDIY22 processes discrete digital input states. Analog measurement functions require dedicated Honeywell analog input modules.
Field Installation Guidelines
- Install the MU-PDIY22 in the specified Honeywell Process I/O card file position according to system engineering documentation.
- Verify the field wiring type before connection, including dry contact polarity, field power arrangement, and common reference requirements.
- Separate digital input wiring from high-current power cables and switching circuits to reduce electromagnetic interference.
- Connect cable shields according to the plant grounding standard and avoid multiple grounding points that may create unwanted current paths.
- Confirm terminal assignments and channel mapping before applying field voltage.
- Check module status indicators after installation to verify power, communication, and input channel operation.
- Perform loop checks for each connected field device before placing the control strategy into service.
