Overview

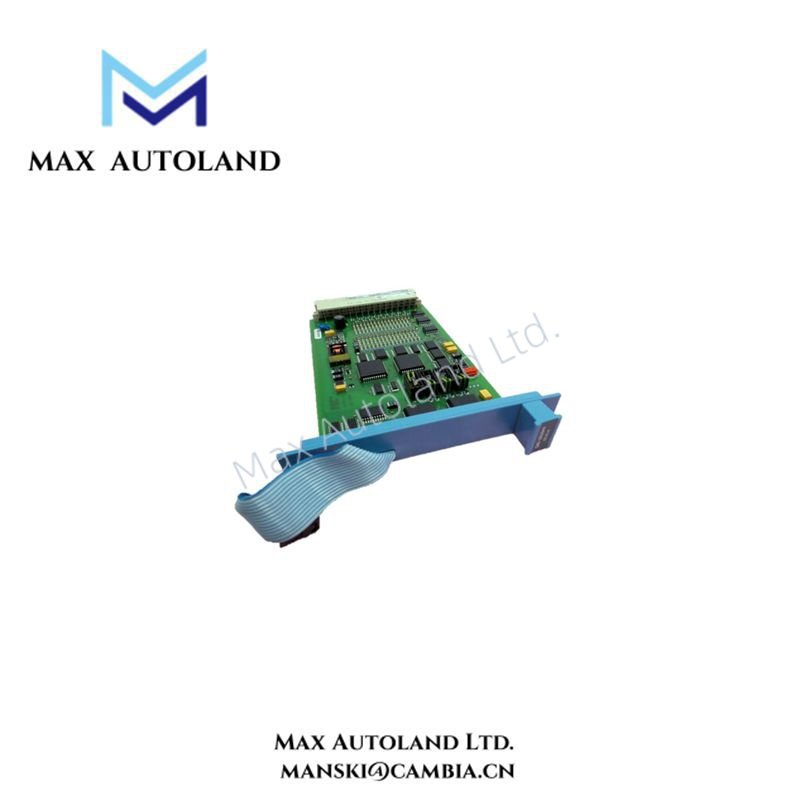

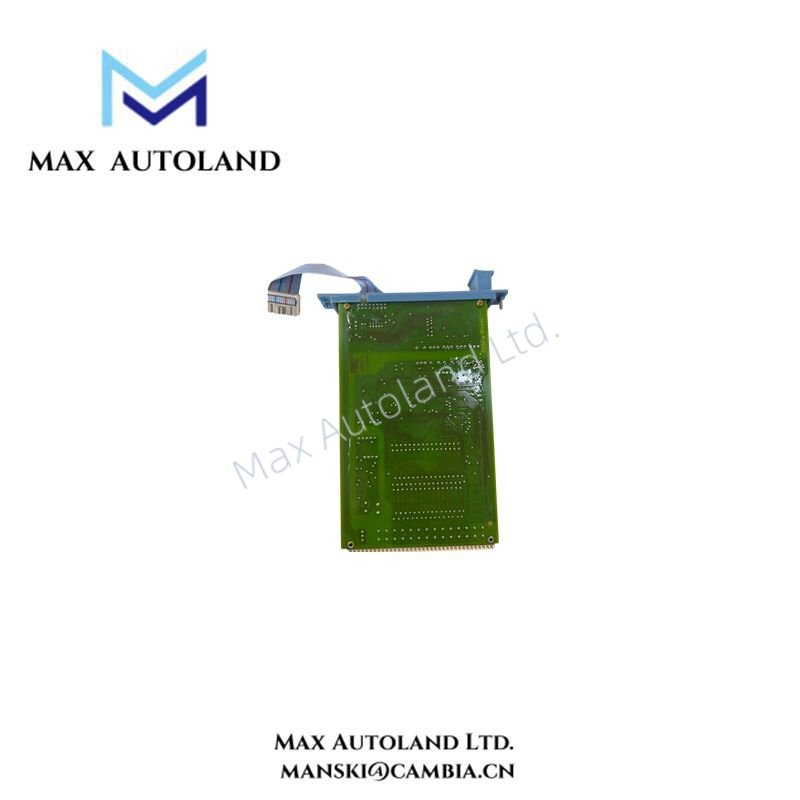

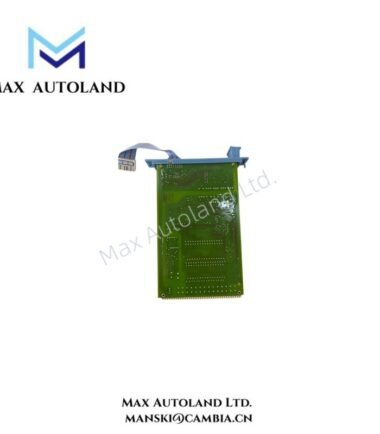

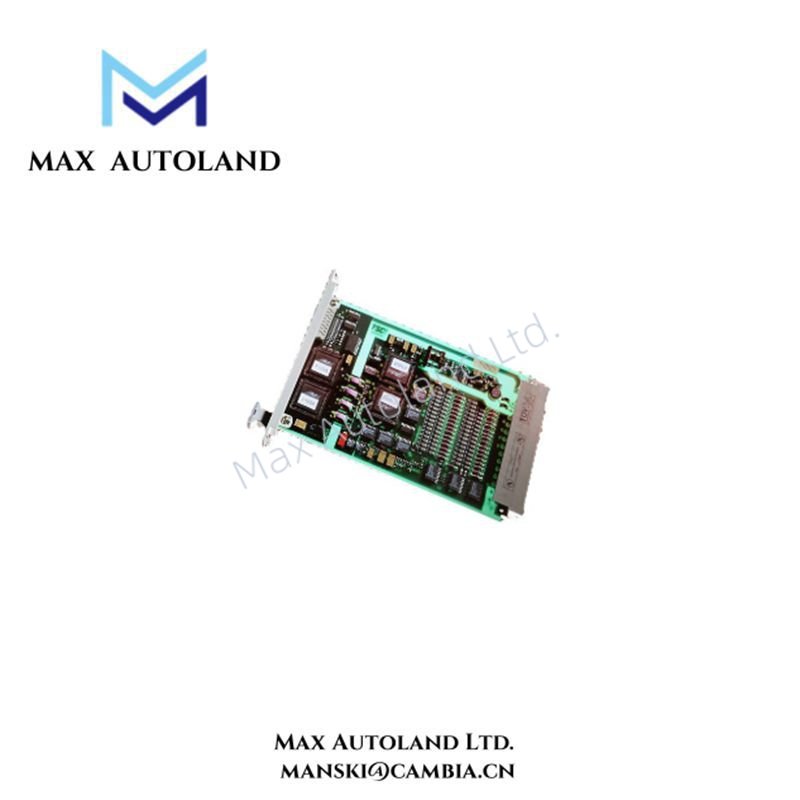

The Honeywell FC-SAI-1620M belongs to the Safety Manager / FSC series and serves as a high-density analog input module. It supports 16 analog input channels with a 0(4)-20 mA signal range and operates reliably on a 24 VDC supply. Honeywell builds this module for safety-critical control systems that demand precise and consistent analog data.
In addition, the SAI-1620M features sixteen analog inputs (0–4 V) and one external voltage readback input (0–4 V), giving engineers greater flexibility. Because all sixteen channels share an isolated analog 0 V common, the design enhances signal integrity while preventing ground loops.
Moreover, the FC-SAI-1620M complies with SIL 3 safety standards under IEC 61508, which ensures dependable performance in critical environments. Since the field signals must be converted from 0–20 mA to a level suitable for the module, it integrates seamlessly with standard industrial converters. Consequently, this module offers both safety and versatility for demanding process applications.
Specification
| General | Type numbers: | FS-SAI-1620m |
| FC-SAI-1620m | ||
| FA-SAl-1620m | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Space requirements: | 4TE,3 HE(=4 HP,3U) | |
| Power | Power requirements: | 5V DC,35 mA |
| 24V DC,35 mA | ||
| Input | Number of input channels: | 16 |
| Input range: | 0-4.1V | |
| Input resistance: | >1 MΩ | |
| Maximum load capacitance: | 100nF | |
| A/D converter: | 12-bit | |
| A/D converter inaccuracy: | ±1LSB | |
| Module inaccuracy: | <0.25% | |
| Absolute max.input signal: | ±36V DC | |
| Cross talk between channels: | >60 dB³ | |
| External voltage read back: | ||
| ·Range | 0-4.1V | |
| · Input resistance | Typically 1 MΩ | |
