Overview

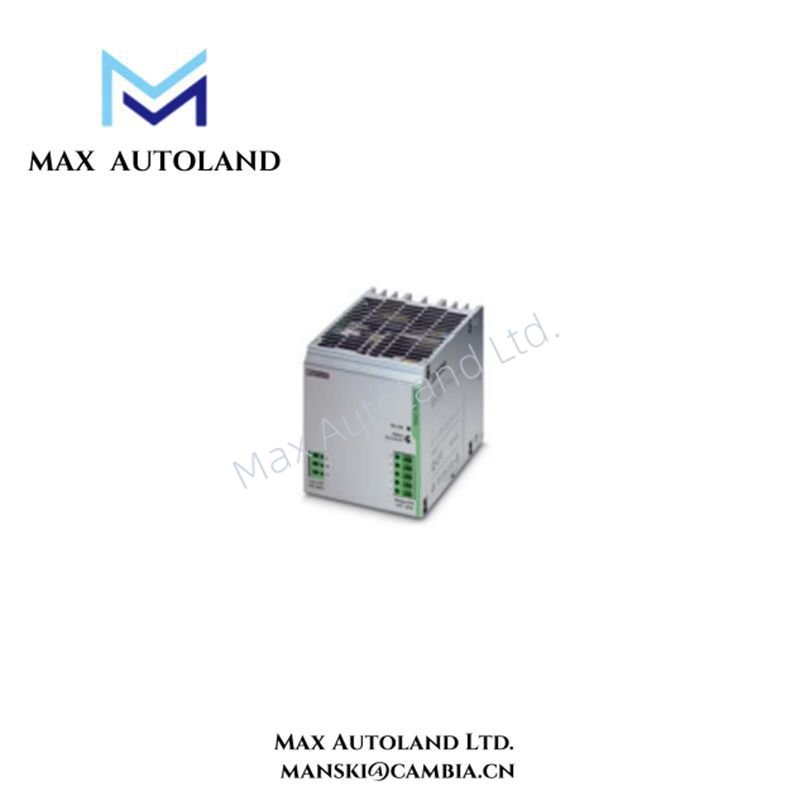

The Honeywell 8U-PWSP05 is a 24V DC, 20A power supply module designed for the Experion C300 Controller within the Series 8 I/O system. Manufactured by Phoenix Contact under the TRIO-PS series, this module ensures reliable power delivery for industrial automation applications.
Commercial Off the Shelf (COTS) power system for Series-8 is available when Battery Backup is not required. The COTS Power system provides redundant 24VDC primary power at 20 amps for Series 8 devices. The power system also provides capabilities to support integral field power. This eliminates the need for additional
power sources as well as the additional wiring, fusing, marshalling and documentation costs. Various COTS power systems are available. Selection is a user preference.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 8U-PWSP05 |
| Manufacturer | Honeywell (Phoenix Contact) |
| Type | Power Supply Module |
| Output Voltage | 22.5–29.5V DC |
| Output Current | 0–20A |
| Efficiency | 91% at 120V/230V AC |
| Power Factor | 0.99 at 120V/230V AC |
| Input Voltage Range | 85–264V AC |
| Operating Temperature | 0°C to 70°C |
| Hold-Up Time | >13ms at 120V/230V AC |
| Inrush Current | 15A peak |
| Dimensions (WxHxD) | 3 cm × 31.3 cm × 27.8 cm |
| Weight | Approximately 0.56 kg |
Manual/Datasheet PDF
Honeywell Series 8 Controller and IO Specification
