Overview

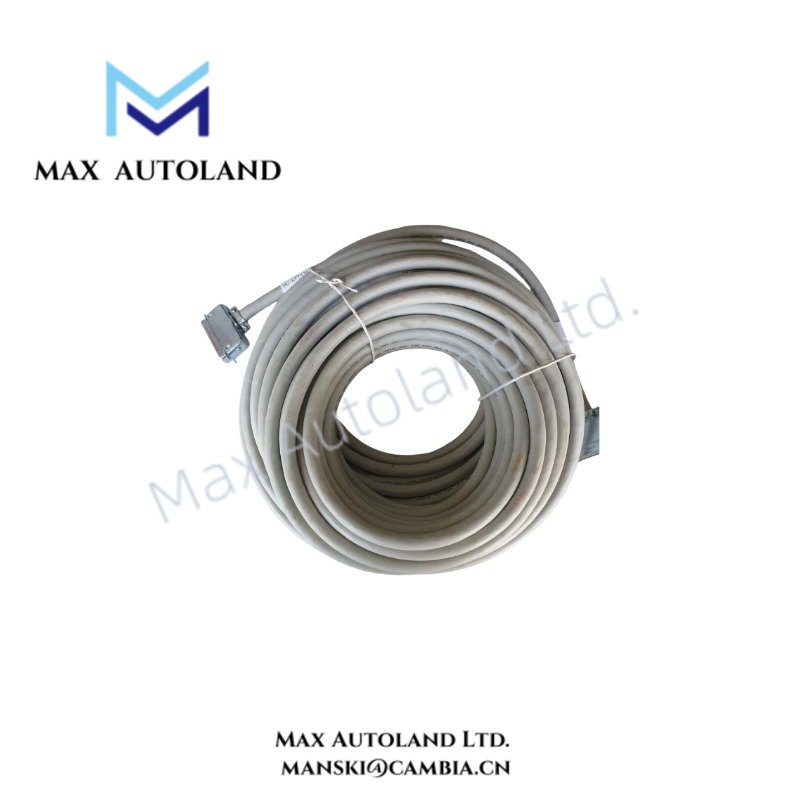

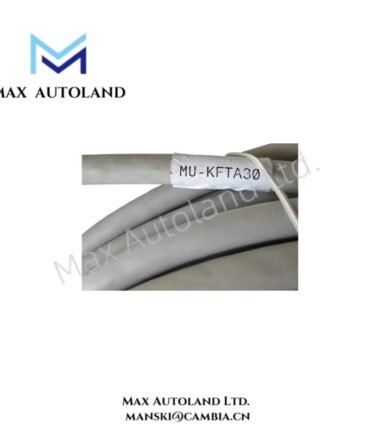

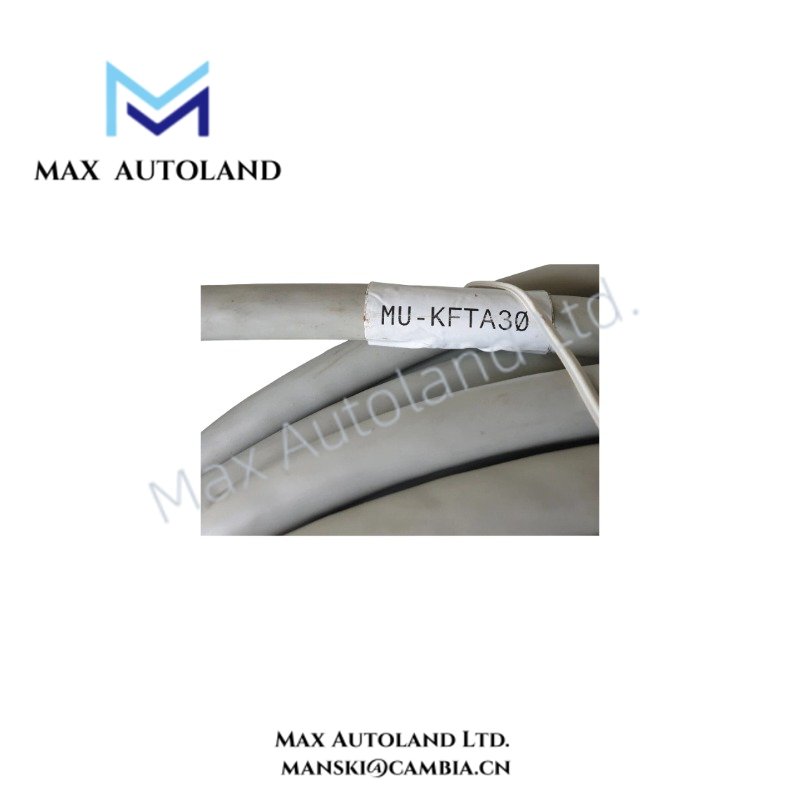

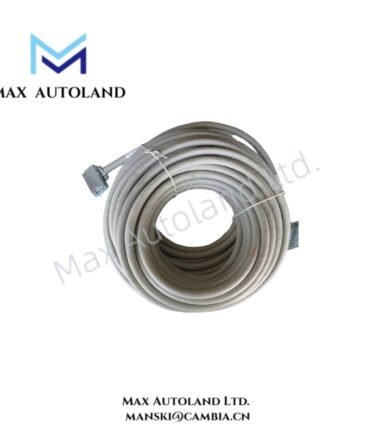

Configured for I/O signal interconnection in Honeywell TDC 3000 and Experion PKS platforms, the Honeywell MU-KFTA30 (MU-KFTA30 Field Termination Assembly Cable) provides direct physical connection between HPM I/O Processor interfaces and Field Termination Assemblies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-KFTA30 |
| Brand | Honeywell |
| Origin | United States |
| Product Type | Field Termination Assembly Cable |
| System Compatibility | Honeywell TDC 3000, Experion PKS, High-Performance Process Manager (HPM) |
| Application Function | I/O Processor to Field Termination Assembly signal connection |
| Cable Length | 30 m |
| Connection Type | Multi-pin FTA multi-conductor connector |
| Conductor Type | Copper conductors |
| Jacket Material | Flame-retardant industrial PVC |
| Operating Temp | -20 deg C to +70 deg C |
| Relative Humidity | 5% to 95% RH non-condensing |
| Power Consumption | Passive cable assembly, no external power consumption |
DCS Field Signal Interface Characteristics
The MU-KFTA30 functions as a passive signal transmission assembly between Honeywell I/O processing hardware and field termination equipment. Therefore, it does not perform signal conversion, conditioning, or protocol processing.
The cable supports Honeywell HPM I/O architectures where field signals travel through dedicated termination paths. In addition, the multi-conductor design maintains channel separation between field wiring points and processor-side interfaces.
For Honeywell process control installations, FTA cable assemblies must maintain correct channel allocation and termination mapping. Furthermore, installation practices should preserve shielding continuity and minimize electrical interference from high-voltage equipment.
Frequently Asked Questions
Q: Does the MU-KFTA30 provide signal isolation or signal conversion?
A: No. The MU-KFTA30 is a passive cable assembly. It only provides electrical connection between compatible Honeywell I/O processor interfaces and FTAs.
Q: Can the MU-KFTA30 be installed as a hot-swap component?
A: The cable itself has no active electronics and does not support hot-swap functions. Any connection or disconnection procedure must follow the installed Honeywell system maintenance procedure.
Q: Does the MU-KFTA30 require external power?
A: No. The cable assembly consumes no electrical power because it only transfers field I/O signals between system components.
Field Installation Guidelines
- Verify the cable model before installation and confirm compatibility with the assigned Honeywell HPM I/O module and FTA assembly.
- Install the cable using the correct connector orientation. Avoid forcing connectors because incorrect alignment may damage pins or mating interfaces.
- Route the cable separately from high-current power conductors, motor cables, and sources of electromagnetic interference.
- Maintain proper cable bend radius during installation. Excessive mechanical stress can damage internal conductors and connector termination points.
- Confirm shielding and grounding practices according to the Honeywell control system installation documentation. Keep shield termination methods consistent across the complete signal path.
- Inspect connectors before commissioning. Ensure that contacts remain clean and fully engaged before system startup.
