Overview

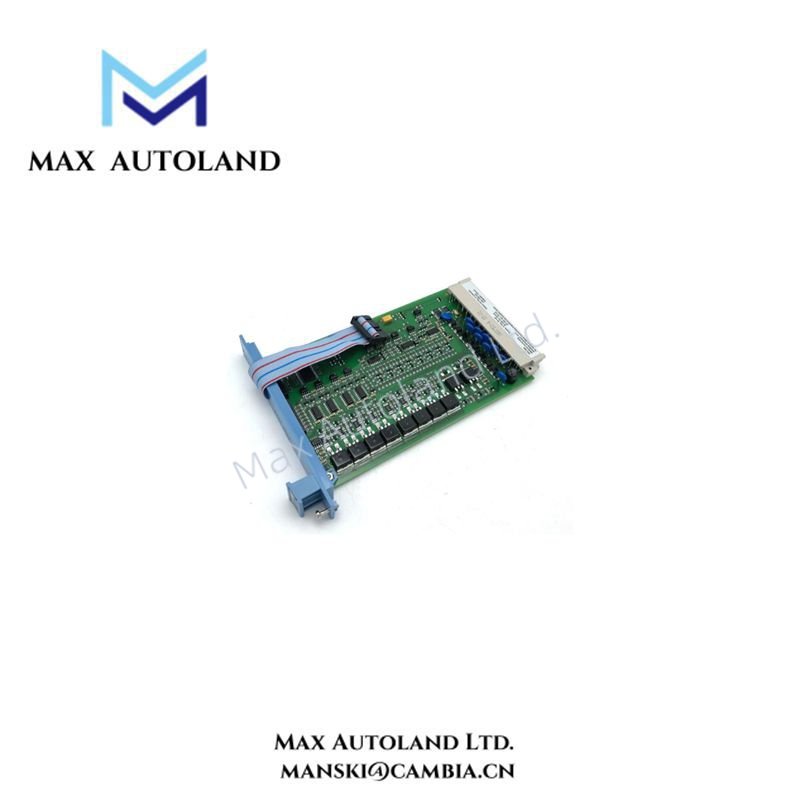

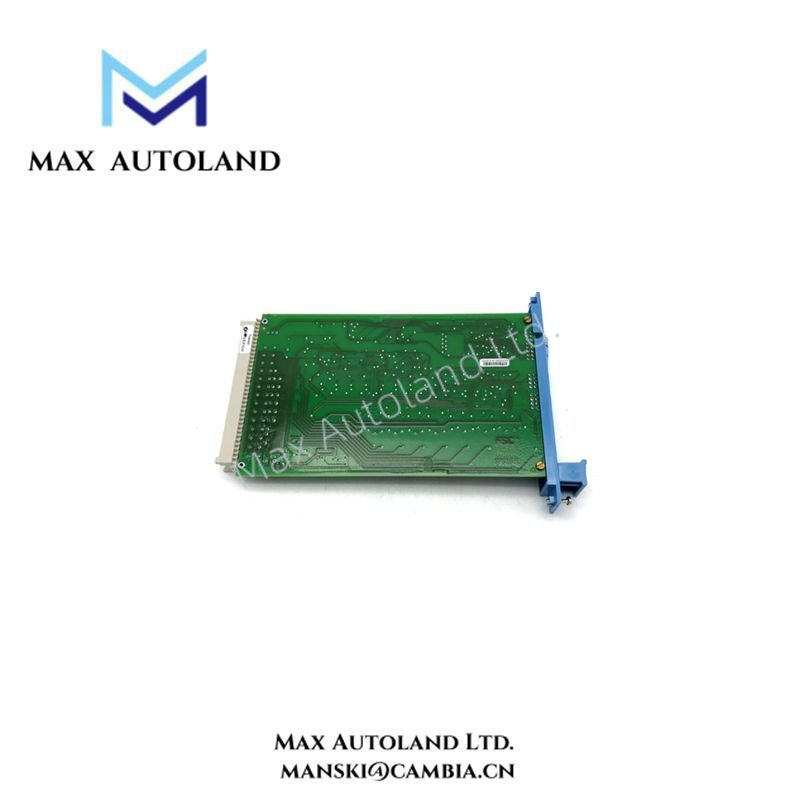

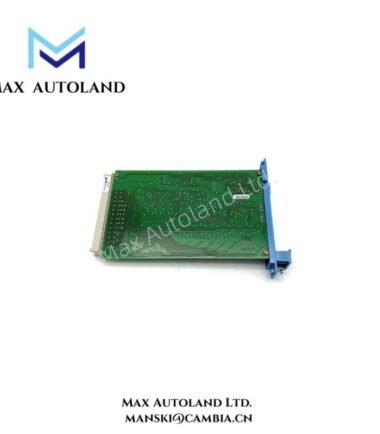

The Honeywell FC-SDO-0824 is an 8-channel safe digital output module in the Safety Manager / FSC series. It delivers 24 VDC outputs and supports continuous currents of up to 0.55 A per channel. Honeywell engineers this module for high-integrity safety systems and enhances durability with conformal coating that withstands harsh industrial conditions.
Moreover, you benefit from its compact form factor and highly accurate output control, which make integration both efficient and reliable. The FC-SDO-0824 also meets international approvals such as CE, TUV, UL, CSA, and FM, so you can deploy it confidently in global safety applications.
In addition, the SDO-0824 provides eight 24 VDC, 550 mA output channels, each capable of driving loads up to 13 W. These loads may include resistive devices like lamps or inductive devices like solenoids. To protect inductive loads, Honeywell integrates a suppression diode on every output. Because these outputs undergo comprehensive testing, they remain suitable for safety-critical use.
Furthermore, during each configured diagnostic test interval, the module verifies several vital functions. It checks the ability to de-energize individual outputs, confirms the ability to de-energize the entire group through secondary means, and ensures there is no crosstalk between outputs. At the same time, it validates the proper functioning of all suppression diodes. By combining rigorous diagnostics with robust design, the FC-SDO-0824 strengthens operational safety and reliability in demanding environments.
Specification
| General | Type numbers: | FS-SDO-0824 |
| FC-SDO-0824 | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Space requirements: | 4 TE,3HE(=4HP,3U) | |
| Power | Power requirements: | 5V DC,25 mA |
| 24V DC internal,25 mA | ||
| 24V DC external,70 mA(without output load) | ||
| Output | Number of output channels: | 8 |
| Output specification: | 24VDC solid-state source,short-circuit proof | |
| Maximum current: | 550 mA | |
| Maximum lamp load: | 120 mA(2.9 W) | |
| Maximum load capacitance: | 1 μF | |
| Voltage drop: | <2.0V DC at 500 mA | |
| Off current: | <0.1 mA | |
| WDG input current: | 8 mA | |
| Key coding | (See section Key coding) | |
| Module code: | ||
| ·Holes | A9,C9 | |
| Chassis code: | ||
| ·Large pins | A9,C9 | |
Manual/Datasheet PDF
FC-SDO-0824 Honeywell FSC Safety Manager System Module datasheet
