Overview

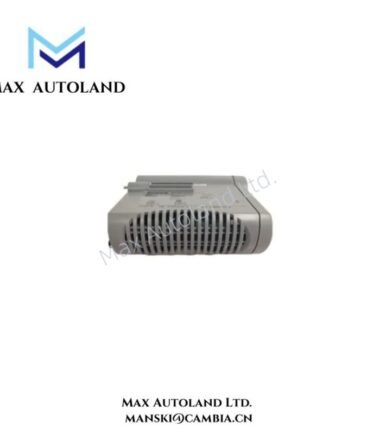

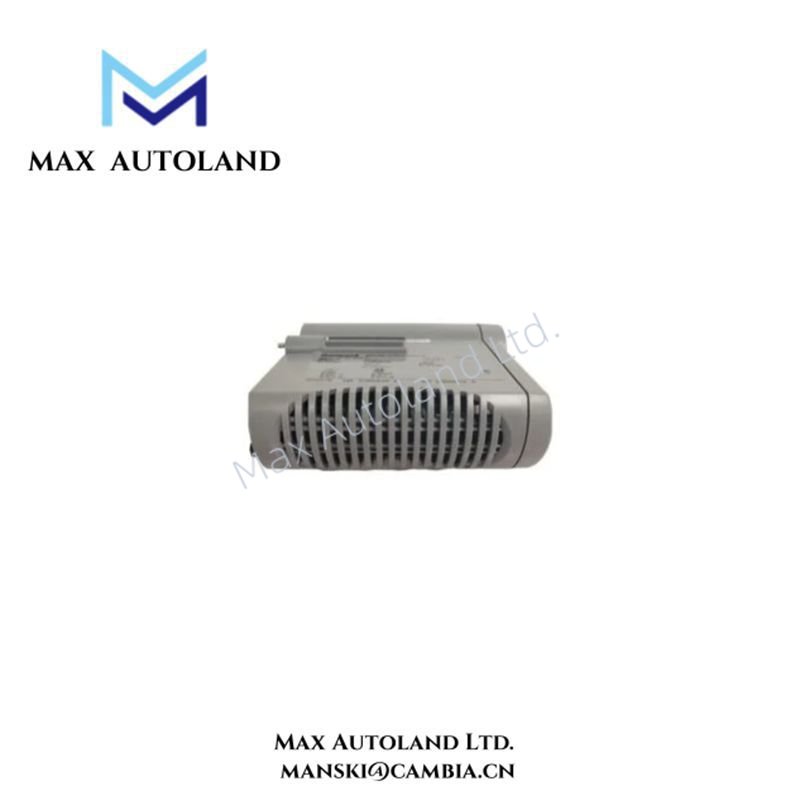

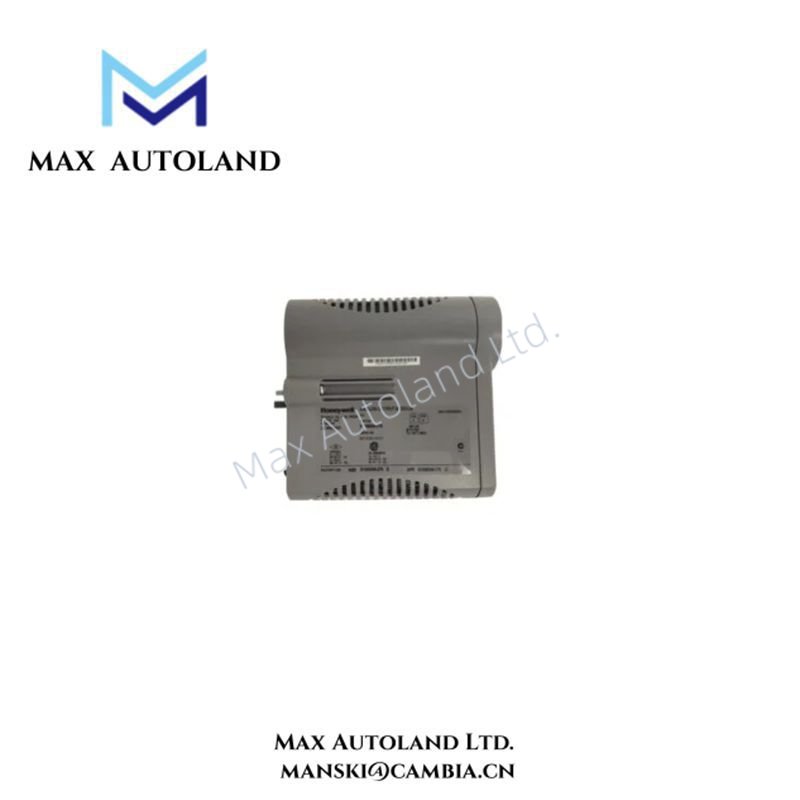

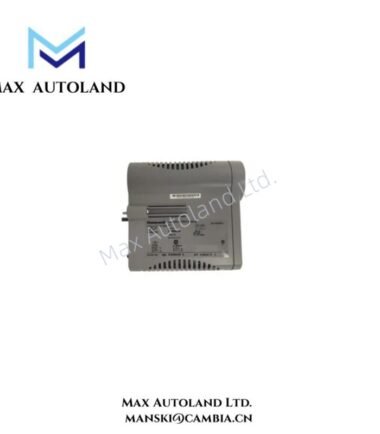

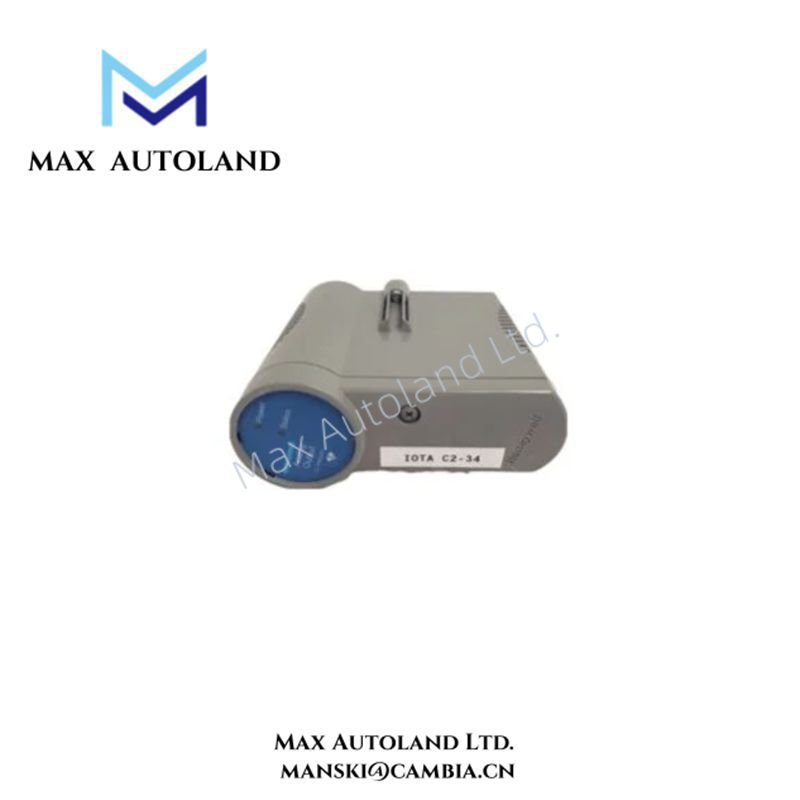

The CC-PAOX01 Analog Output Module from Honeywell delivers high-level constant current to actuators and recording or indicating devices. Furthermore, it provides extensive self-diagnostics, supports optional redundancy, and offers configurable safe-state (FAILOPT) behaviors on a per-channel basis. Users can configure each channel to HOLD LAST VALUE or SHED to a SAFE VALUE. Additionally, the module detects open field wiring and annunciates channel soft failures.
This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.
Specification
| Parameter | Specification | ||
| Input/Output Model | CC-PAOX01-High-Level Analog Output | ||
| IOTA Models | CC-TAOX01 | Non-Redundant | 6″ |
| CC-TAOX11 | Redundant | 12” | |
| CC-GAOX11 | Redundant | 12” | |
| CC-GAOX21 | Non-Redundant | 6″ | |
| Output Type | 4-20 mA | ||
| Output Channels | 16 | ||
| Output Ripple | <100 mV peak-to-peak at power line frequency,across 250 Ω load | ||
| Output Temperature Drift | 0.005%of Full Scae/C | ||
| Output Readback Accuracy | ±4%of Full Scale | ||
| Output Current Linearity | ±0.05%of Full Scale nominal | ||
| Resolution | ±0.05%of Full Scale | ||
| Calibrated Accuracy | ±0.35%of Full Scale(25℃)including linearity | ||
| Directly Settable Output Current Range | 0mA,2.9mA to 21.1 mA | ||
| Maximum Resistive Load (24 Vsupply=22 VDC through 28 VDC) | 800 ohms | ||
| Maximum Output Compliant Voltage (24 Vsupply=22 VDC through 28 VDC) | 16V | ||
Manual/Datasheet PDF
CC-PAOX01 Honeywell Experion C300 Analog Output Model datasheet
