Overview

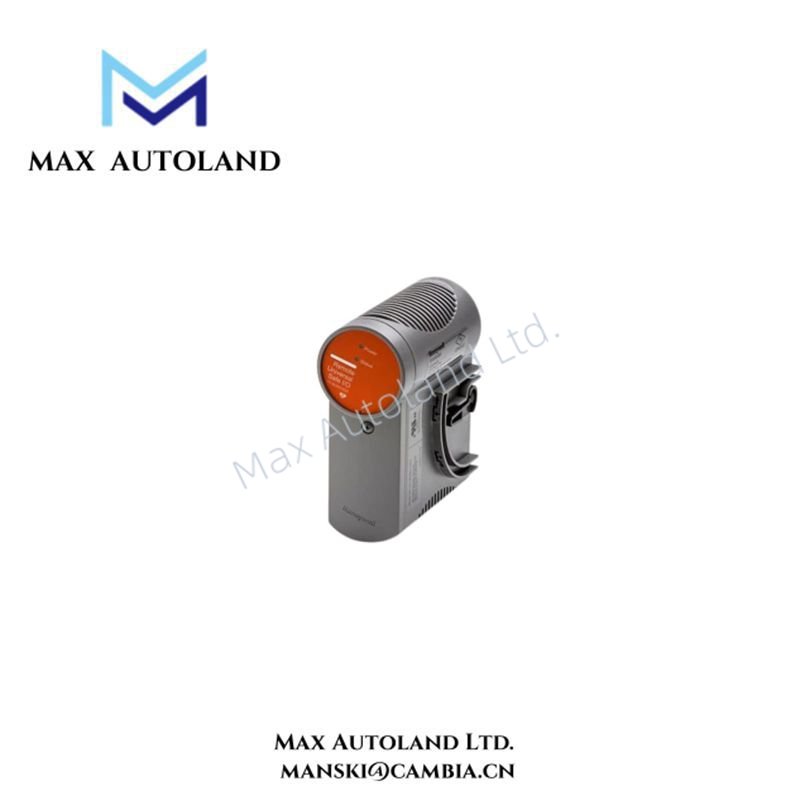

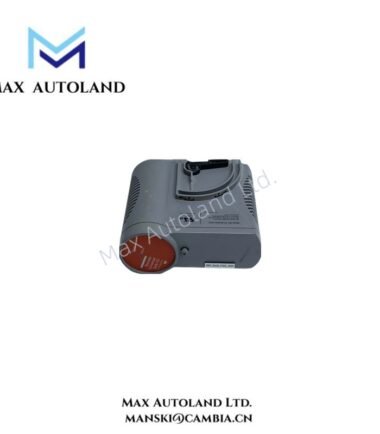

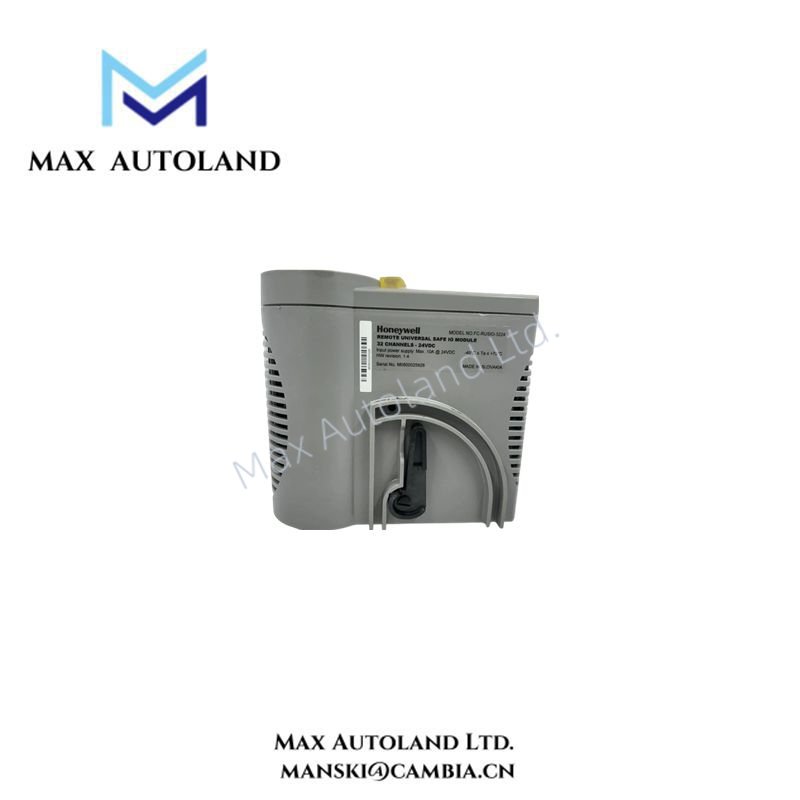

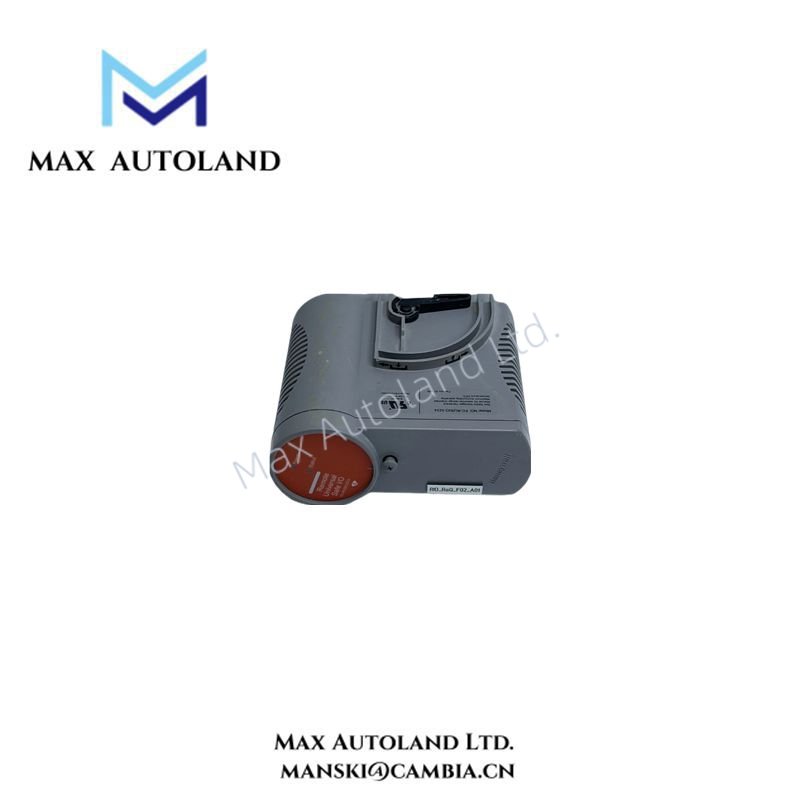

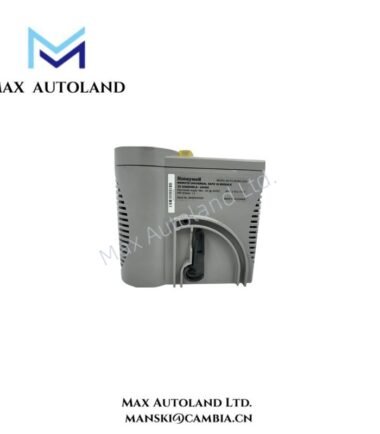

The Honeywell FC-RUSIO-3224 belongs to the FSC / Safety Manager series, and it delivers 32 configurable I/O channels powered by a 24 VDC supply voltage. Honeywell designed this module specifically for remote, safety-critical control in harsh environments, where engineers need reliable signal transmission and flexible I/O configuration.
Moreover, the RUSIO-3224 offers 32 universal safe I/O channels, and you can easily configure each channel’s function using the Safety Builder tool. Since it supports applications up to SIL 3 in full compliance with IEC 61508/61511, you can trust it for high-integrity safety systems.
For projects that demand even higher reliability, you can deploy two RUSIO-3224 modules to create a fully redundant configuration. Because all channels draw power directly from the 24 VDC supply, integration into your existing system remains straightforward and efficient.
Specification
| General | Type number: | FC-RUSIO-3224 |
| Operating temperature: | ||
| ·outside module temperature: | -40℃…+70℃(-40°F…+158°F) | |
| ·inside module temperature: | -40℃…+90℃(-40F…+194°F) | |
| Storage temperature: | -40C…+85℃(-40°F…+185°F) | |
| Relative humidity: | 10…95%(non condensing) | |
| Pollution: | Pollution degree 2 or better | |
| Approvals: | CE,UL,TUV | |
| Power | Supply voltage: | 24V DC-15%…+30% |
| Supply current: | max 300mA(without field load) | |
| I0 | Number of channels: | 32 |
| Channel type: | Universal safe(software configurable) | |
| ·Digital in | max.32(with or without line-monitoring) | |
| ·ESD in | max.1(with line-monitoring) | |
| ·Analog in | max.32(with or without line-monitoring) | |
| ·Digital out | max.32(with or without line-monitoring) max.combined load:9A | |
| ·Analog out | max.16(with or without open loop detection) | |
| Maximum field capacitance | 100 nF(for Al/DI/AO channels) | |
| 1μF(for DO channels) |
Manual/Datasheet PDF
FC-RUSIO-3224 Honeywell FSC SM RIO module 32 ch 24Vdc
