Overview

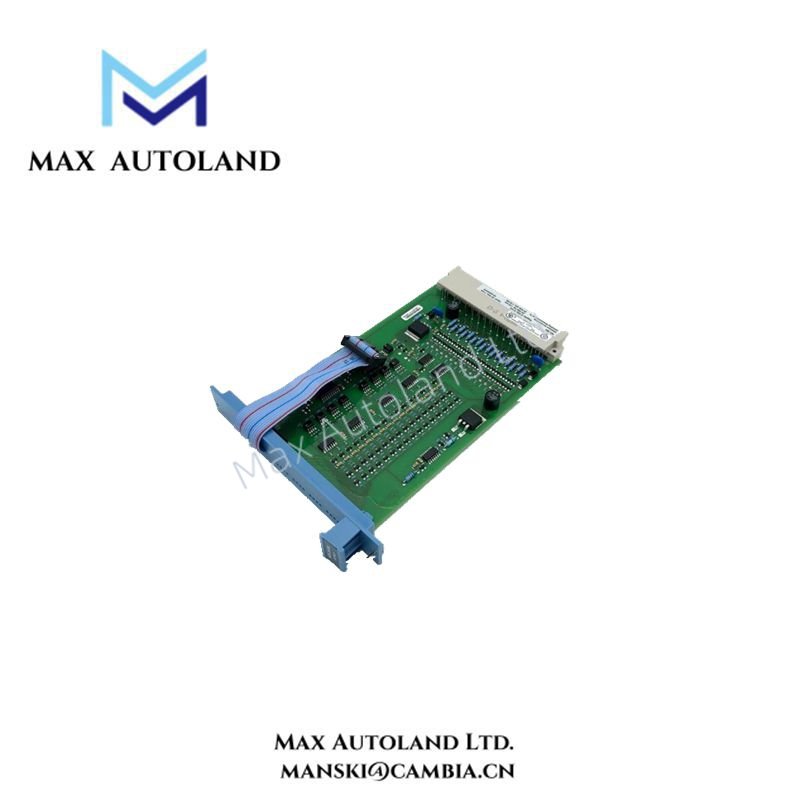

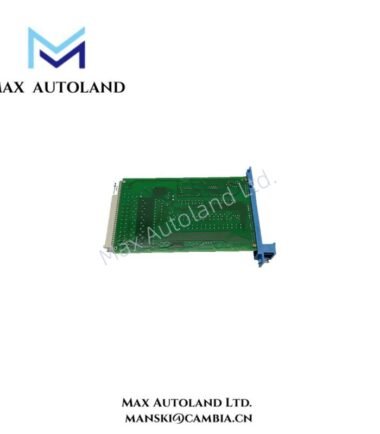

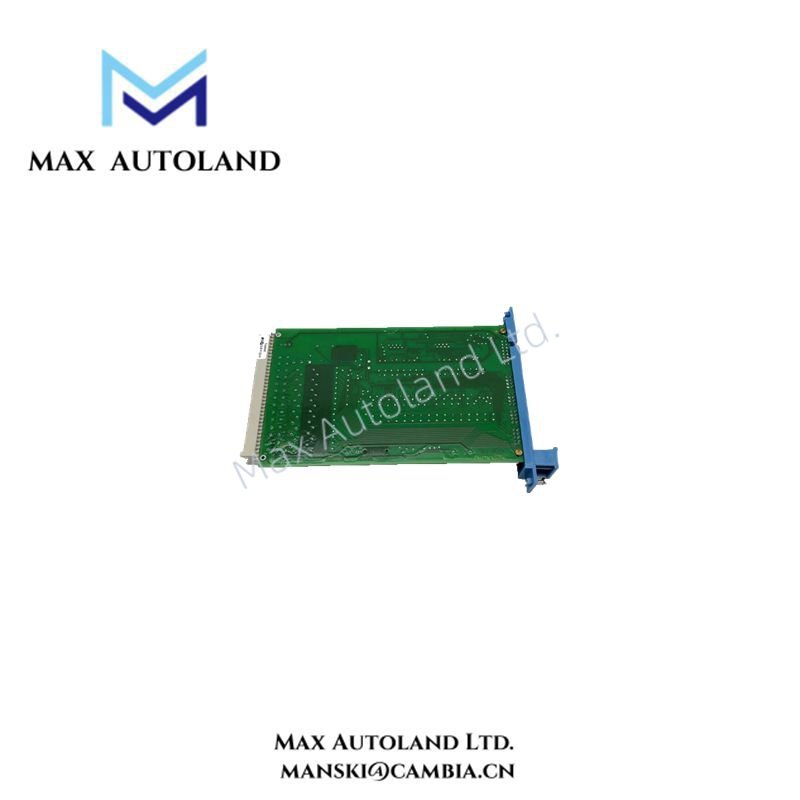

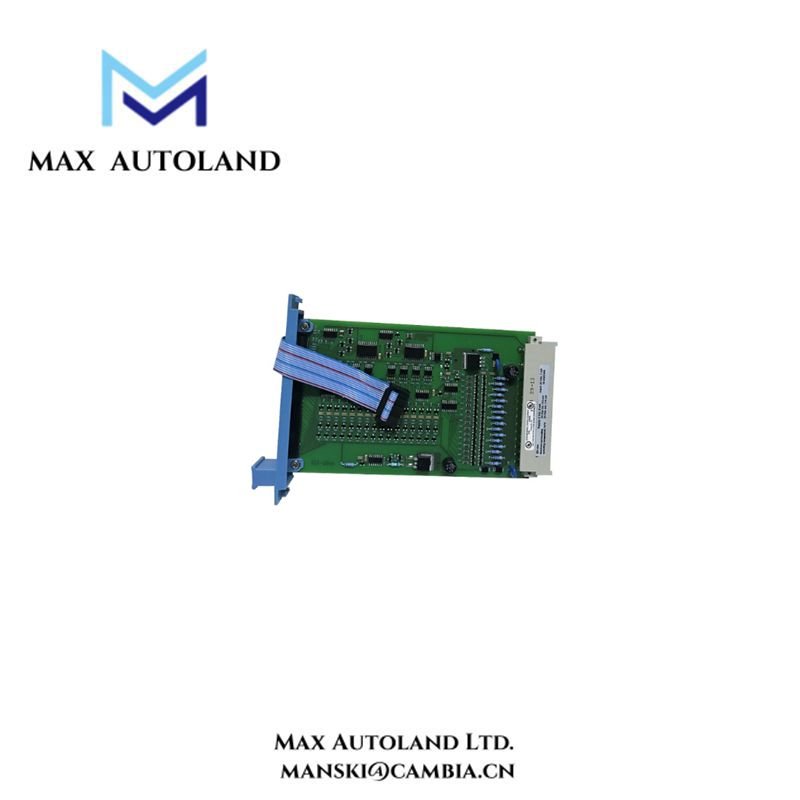

The Honeywell FC-SDI-1624 is a 16-channel safe digital input module in the FSC / Safety Manager series. It accepts 24 Vdc field signals and uses a fail-to-safe design to maintain high system reliability. Honeywell engineers this module for rugged industrial safety monitoring and protects it with a durable conformal coating.
In addition, the SDI-1624 provides sixteen 24 Vdc digital input channels that continuously deliver secure data acquisition. Its fail-to-safe input stage ensures that any component fault immediately drives the channel into a de-energized state, which represents the safe condition in normally energized systems. Meanwhile, the remaining logic circuitry is fully monitored by the system’s built-in self-test functions.
Furthermore, within each configured diagnostic test interval, the module undergoes detailed checks. These include verifying its ability to receive logic level ‘0’ signals, confirming correct response to logic level ‘1’ signals, and ensuring there is no crosstalk between input channels. By combining these diagnostic features with robust design, the FC-SDI-1624 strengthens overall plant safety and reliability.
Specification
| General | Type numbers: | FS-SDI-1624 |
| FC-SDI-1624 | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Space requirements: | 4 TE,3HE(=4HP,3U) | |
| Power | Power requirements: | 5V DC,8 mA |
| 24VDC int.,110 mA | ||
| 24VDC ext.,110 mA(input currents) | ||
| Ripple content(on 5VDC): | <0.5 Vp-p(0-360 Hz) | |
| Input | Number of input channels: | 16 |
| Maximum input voltage: | 36V DC | |
| Input current: | 7 mA at 24V DC | |
| Maximum load capacitance: | 100 nF | |
| Input HIGH: | >15VDC | |
| Input LOW: | <9VDC(1<2mA) | |
| Input delay: | Typicaly 10ms | |
| Output | Type | 24VDC solid state,short circuit proof |
| Maximum current | 450 mA(see the figure above) | |
| Max.Load capacitance | 32μF | |
| Voltage drop | <1.5V at 450 mA |
