Overview

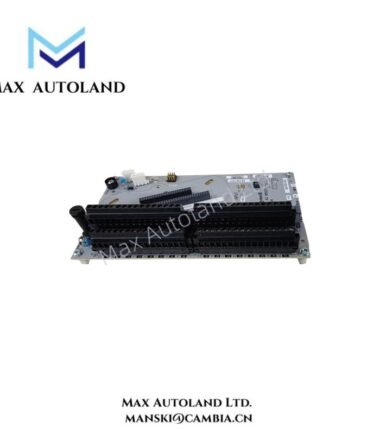

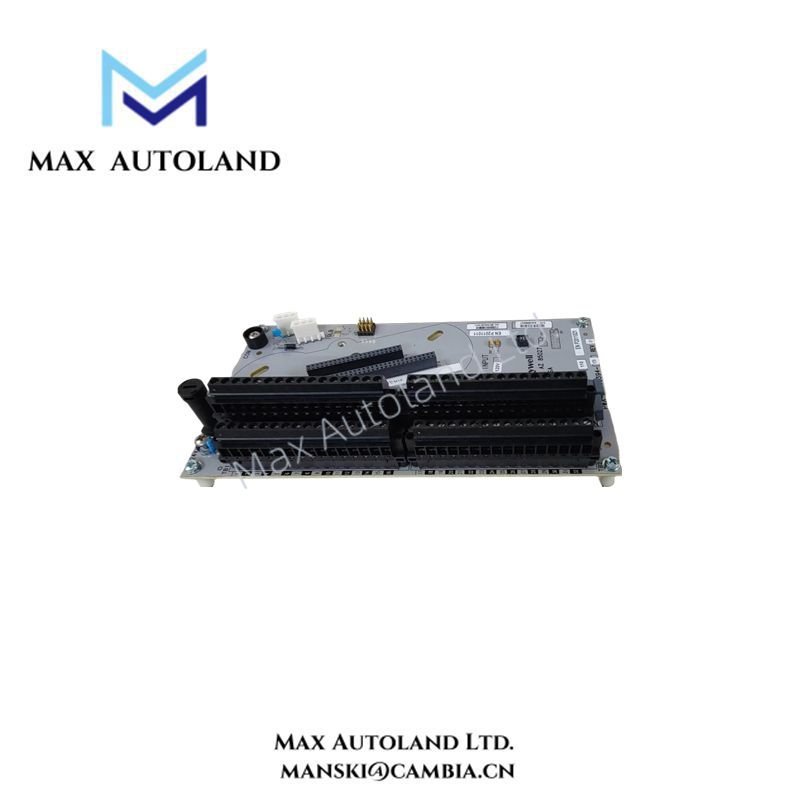

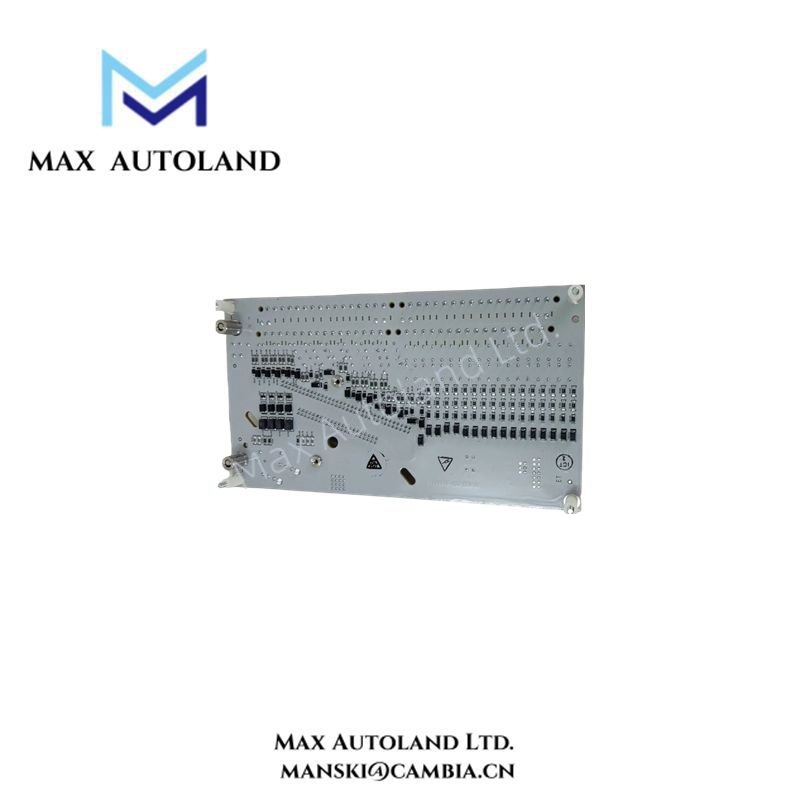

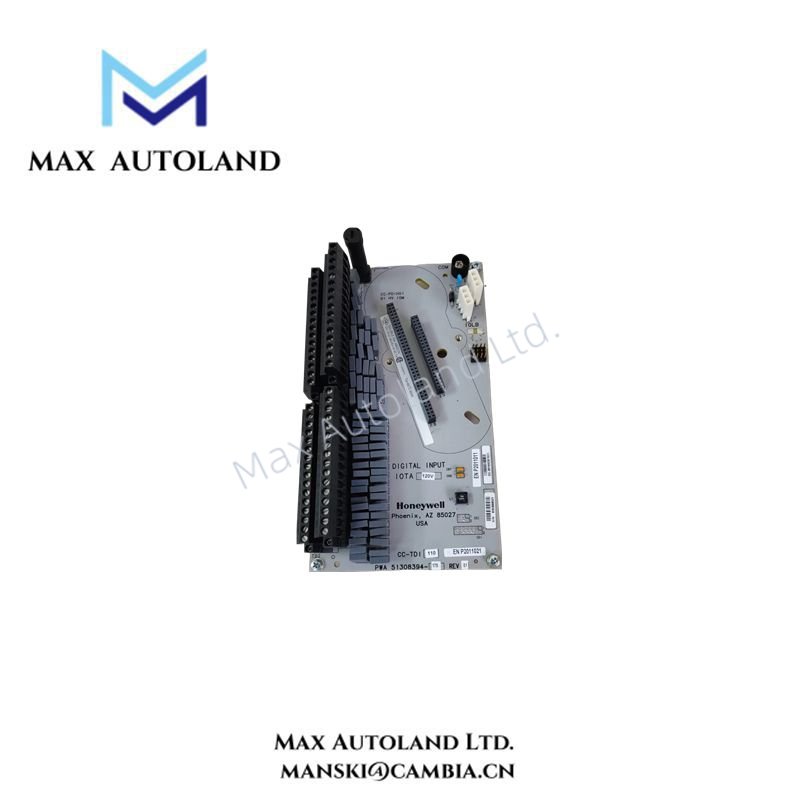

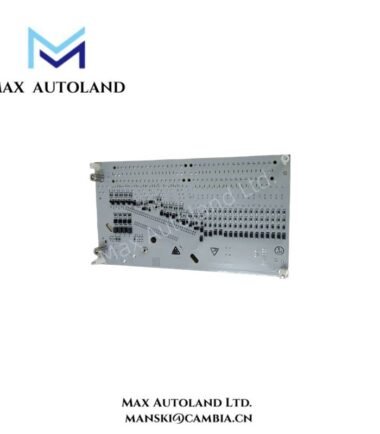

The CC-TDI110 digital input module from Honeywell Series C offers reliable 110 V AC signal acquisition for Experion C300 controllers. It provides 32 input channels with a non-redundant IOTA configuration, ensuring stable performance in industrial automation environments.
The Digital Input High Voltage accepts 120VAC / 125VDC (CC-TDI110, 120), 120VAC (CC-TDI151 PROX) or 250VAC (CC-TDI2xx) signals as discrete inputs. The same IOM but different IOTA is used for both the 120VAC / 125VDC and 250VAC models. This reduces the number of spares required to support Series C system maintenance.
Specification
| Attribute | Details |
|---|---|
| Model | CC-TDI110 |
| Series | Honeywell Series C |
| Input Voltage | 110 V AC |
| Channels | 32 discrete inputs |
| Redundancy | Non-redundant IOTA |
| Compatible System | Experion C300 |
| Dimensions | 6 in height, optimized for Series C |
| Interface | Standard Honeywell backplane |
| Weight | Approx. 0.8 kg |
| Diagnostics | Channel fault detection, open wire monitoring |
Manual/Datasheet PDF
CC-TDI110 Honeywell C300 DI 110V IOTA Non Redundant datasheet
