Overview

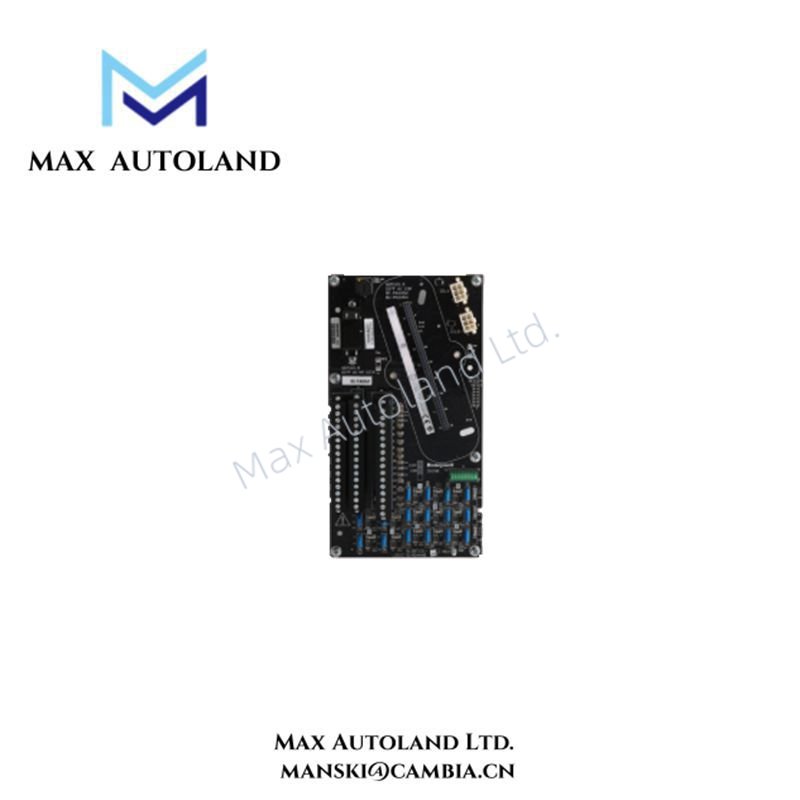

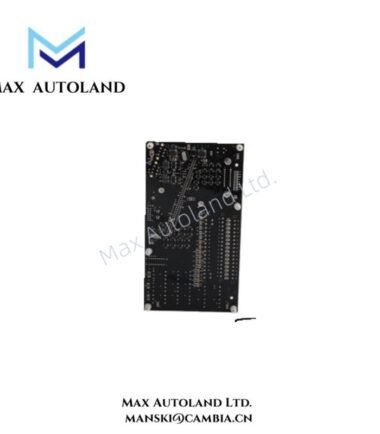

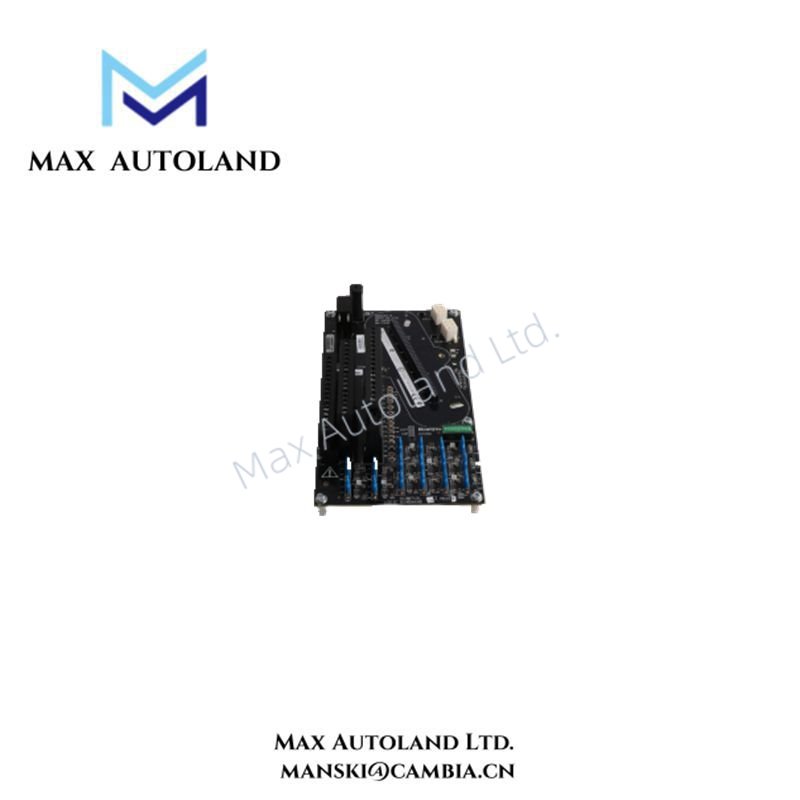

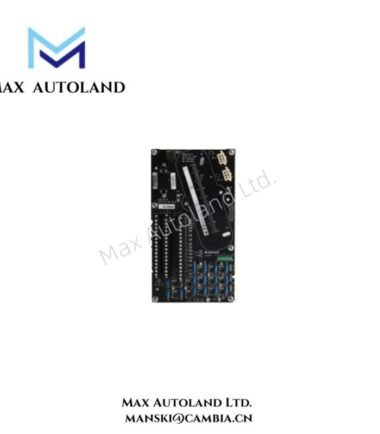

The Honeywell 8C-TAIDB1 51307133-175 serves as a high-precision differential analog input IOTA module for the Experion C300 Series 8 platform. Moreover, it supports either single-ended or differential voltage/current inputs. Additionally, it features built-in HART communication and allows hot-swapping, ensuring both flexibility and uptime in critical industrial setups.
Series 8 Field connections use a standard modular connector. The connector modularity allows for removal and insertion of the field wiring. This significantly reduces installation and maintenance procedures and can assist in field check out. Series 8 field connectors accept up to 12 AWG / 2.5 mm2 stranded wire.
Specification
| Specification | Details |
|---|---|
| Model Number | 8C-TAIDB1 (Part No. 51307133-175) |
| Module Type | Redundant Differential Analog Input IOTA, Coated, Redundant Form Factor |
| Input Channels | 16 channels, configurable as single-ended or differential |
| Input Range | 1–5 V or 4–20 mA (via 250 Ω resistor) |
| Resolution | 16-bit ADC precision |
| Power Supply | 24 VDC, approximately 310 mA module current |
| Scan Rate | 50 ms per channel |
| Accuracy | ±0.075 % FS at 23.5 °C; ±0.15 % FS across 0–60 °C |
| Noise Immunity | CMRR: 70 dB; NMRR: 19 dB @ 60 Hz; Crosstalk: –60 dB |
| Max Input Voltage | ±30 V (no damage) |
| Hot-Swap Capability | Supports removal and insertion under power |
| Diagnostics | Self-diagnostics with HART support |
| Operating Temperature | 0 °C to +60 °C; Storage: –40 °C to +85 °C |
| Construction | G3 conformal coating for harsh environments |
