Overview

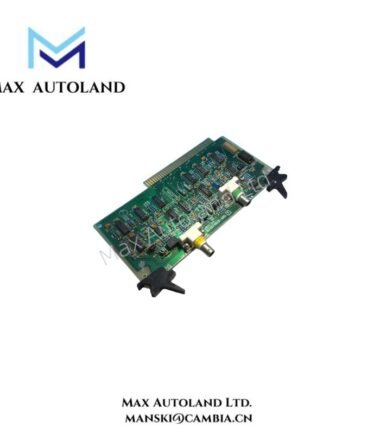

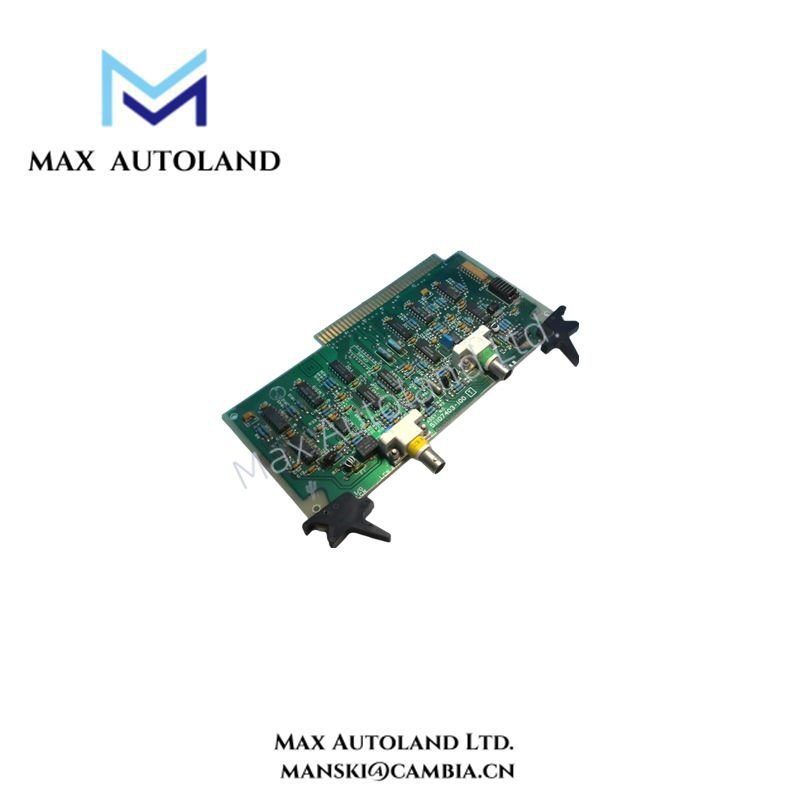

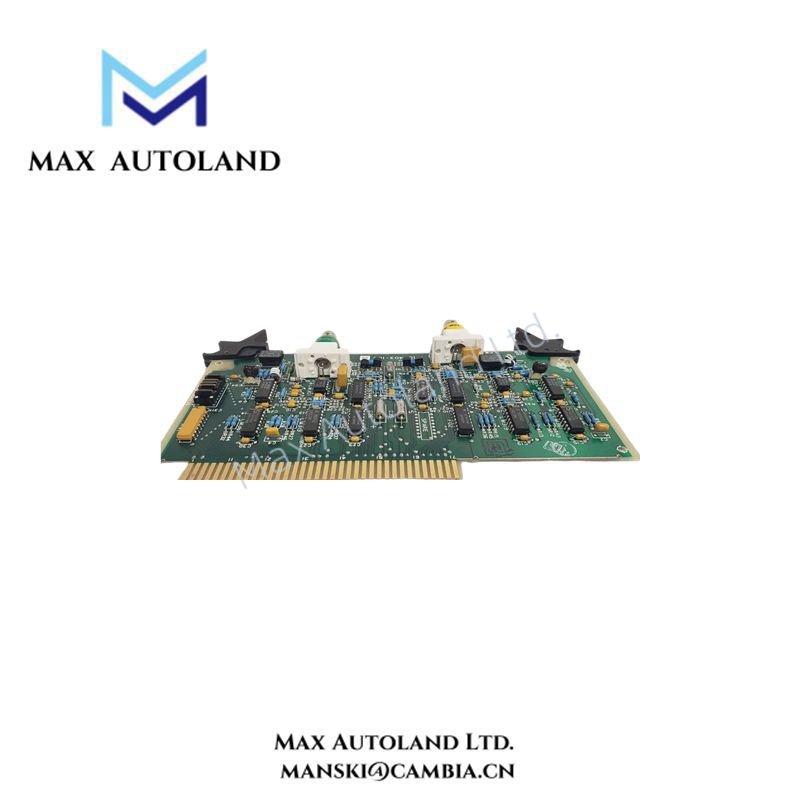

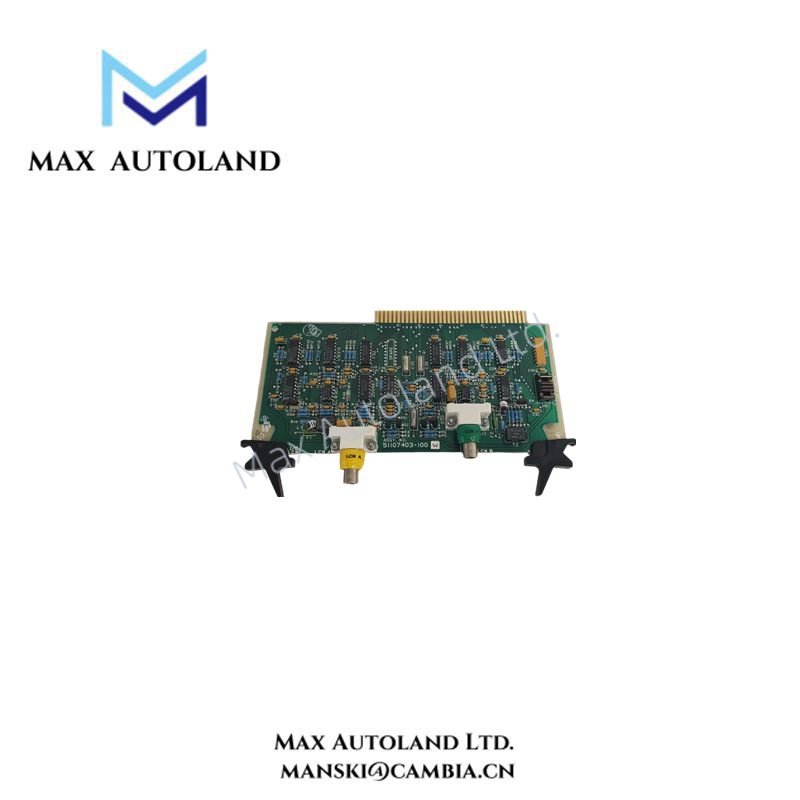

The Honeywell 51107403-100 serves as an LCN Adapter Board by Honeywell for use in legacy TDC3000 control systems. It connects modules to the Local Control Network (LCN) via A & B ports and enables proper addressing in multi-slot chassis.
Specification
| Parameter | Value |
|---|
| Manufacturer | Honeywell |
| Model Number | 51107403-100 |
| Product Type | LCN Adapter Board / LCN Interface I/O Module |
| Compatible Chassis | 5-slot or 10-slot non-CE chassis |
| Ports / Network Interfaces | Dual LCN ports: Cable A & Cable B for redundancy |
| Node Address Configuration | On-board switch sets unique LCN node address |
| Revision Requirement | For SBHM Node, critical to use revision T or higher |
| Replacement / Upgrade Option | CE-rated version: 51305072-100 |
| Weight | ~ 0.45 lb (~ 0.20 kg) (approximate from similar adapter board listings) |
| Size | Approximate faceplate size ~ 12 in × 5 in × 1 in (~ 30.5 cm × 12.7 cm × 2.5 cm) |
| Origin / Certification | Legacy product; non-CE version; for CE compliant systems, use upgraded Adapter Board |
