Overview

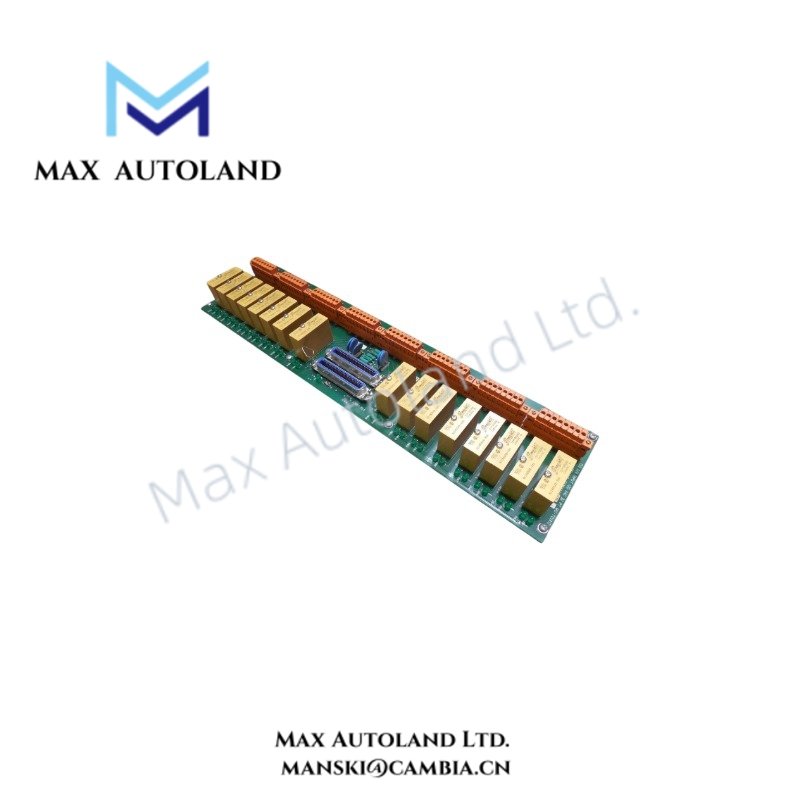

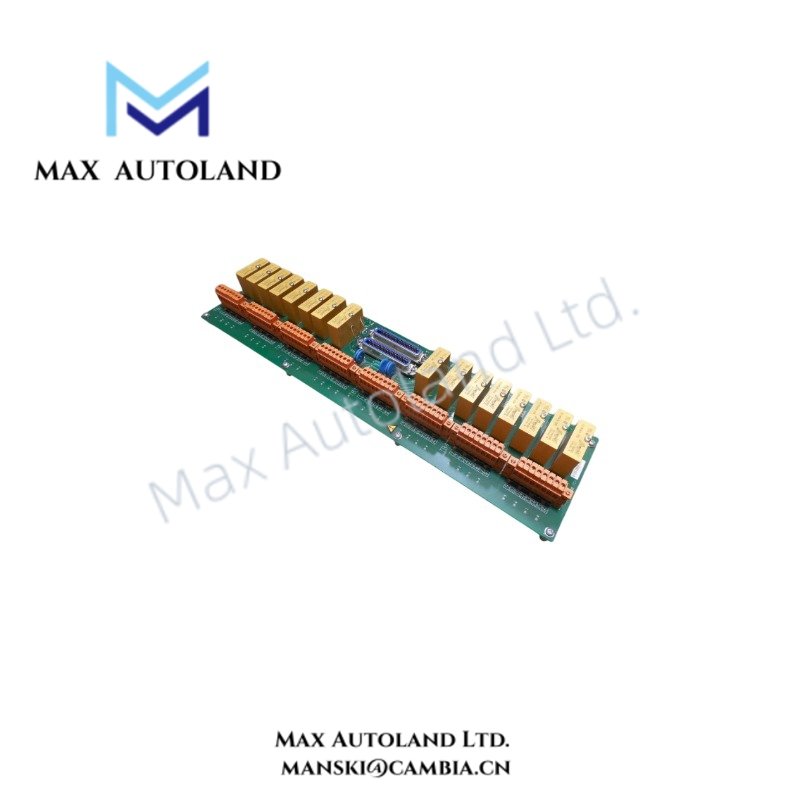

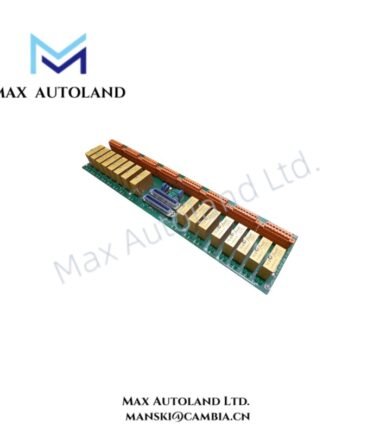

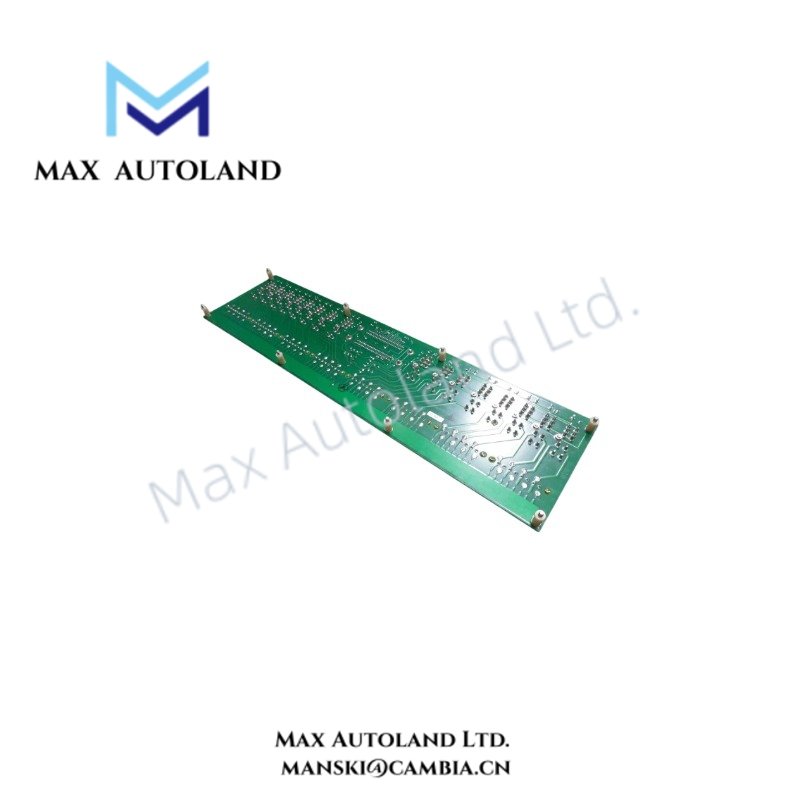

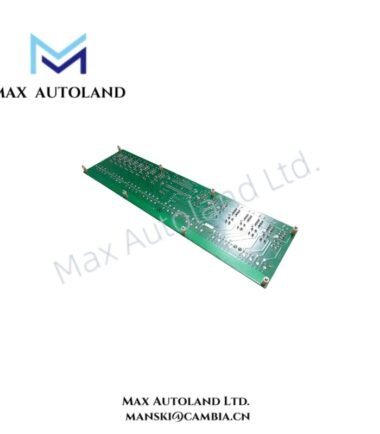

The Honeywell MU-TDIA12-125, also cataloged as the MU-TDIA12 Isolated Digital Input Field Termination Assembly, operates as a dedicated hardware component for digital signal conditioning and electrical isolation within Honeywell TDC 3000, PM, APM, HPM, and Experion PKS control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDIA12 |
| Brand | Honeywell |
| Origin | USA |
| Power Consumption | Supplied through associated I/O interface; value not specified |
| Part Number | 51304439-125 |
| Module Type | Isolated Digital Input Field Termination Assembly (FTA) |
| System Compatibility | Honeywell TDC 3000, PM, APM, HPM, Experion PKS |
| Channel Count | 16 isolated digital input channels |
| Input Signal Type | Digital AC/DC input signals based on field wiring configuration |
| Isolation Type | Channel-to-channel and channel-to-logic isolation |
| Mounting Method | DIN rail or cabinet terminal panel mounting |
| Field Connection | Screw terminal field wiring interface |
Channel Isolation and Process Control Interface
The Honeywell MU-TDIA12 provides isolated digital signal termination between field devices and Honeywell control processors. The assembly receives discrete inputs from switches, sensors, and contact devices, then conditions the signals before transmission to the controller I/O processing layer.
For Honeywell process control applications, the module applies channel-to-channel isolation to reduce electrical interaction between field circuits. In addition, the isolated interface supports stable digital acquisition where field wiring introduces potential differences, electrical noise, or transient disturbances.
The MU-TDIA12 follows Honeywell DCS signal interface principles and supports discrete field connection architectures. However, it does not directly execute control logic because the associated controller performs signal processing and application functions.
Frequently Asked Questions
Q: Does the MU-TDIA12 provide electrical isolation between field channels?
A: Yes. The MU-TDIA12 is designed as an isolated digital input FTA and provides isolation between field-side signals and control-side electronics.
Q: Can the MU-TDIA12 be replaced while the control system remains energized?
A: The assembly supports maintenance procedures defined for the installed Honeywell I/O architecture. Actual hot-swap operation depends on the associated rack design and system configuration.
Q: What type of field signals can connect to the MU-TDIA12?
A: The assembly accepts digital field inputs from AC or DC devices according to the installed wiring configuration and compatible Honeywell I/O interface requirements.
Field Installation Guidelines
- Install the MU-TDIA12 inside the designated Honeywell control cabinet or approved mounting enclosure.
- Verify terminal assignments before connecting field wiring. Incorrect termination can cause invalid digital input states.
- Separate digital signal cables from high-voltage power conductors to reduce electromagnetic interference.
- Connect cable shields according to the site grounding standard and avoid multiple uncontrolled grounding points.
- Confirm field device voltage compatibility before energizing the I/O circuit.
- Inspect terminal tightness, cable routing, and isolation barriers during commissioning and maintenance activities.
- Use approved Honeywell documentation for rack assignment, I/O mapping, and replacement procedures.
