Overview

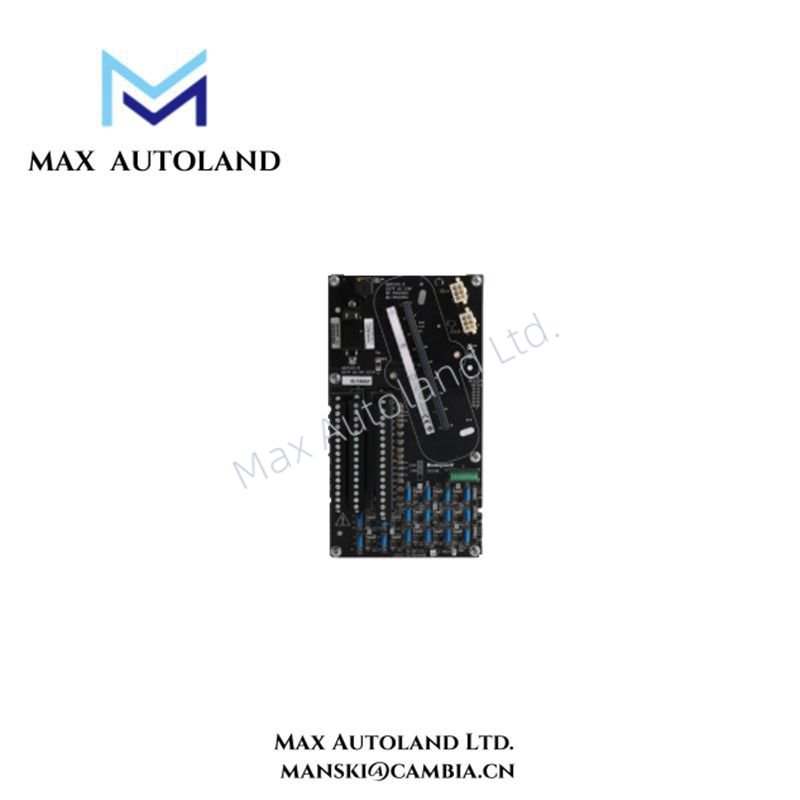

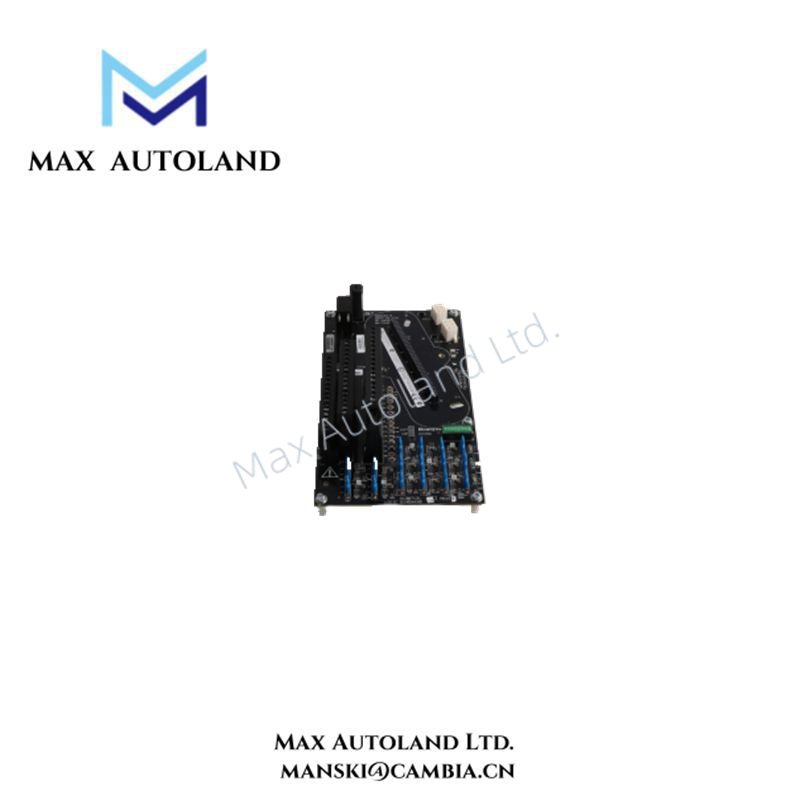

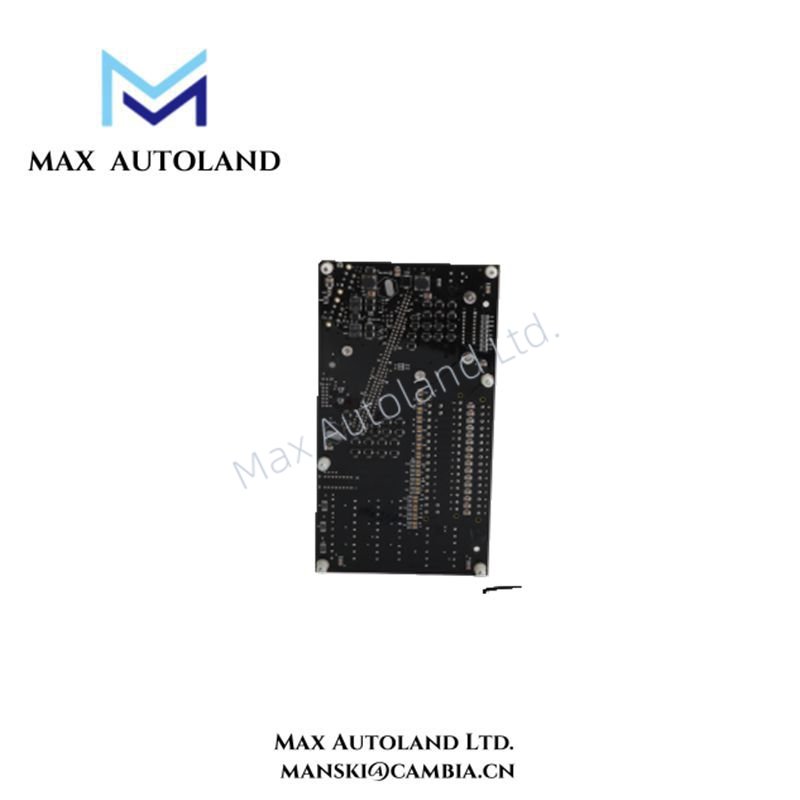

The Honeywell 8C-TAIDA1 51307132-175 belongs to the Experion C300 Series 8 platform and delivers stable, high-accuracy analog input functionality. This non-redundant analog input IOTA provides 16 channels, configurable for either single-ended or differential inputs, while maintaining 16-bit resolution for precise signal acquisition. By combining compact design with strong diagnostic features, the module ensures consistent performance in demanding industrial automation applications.
Specification
| Specification | Details |
|---|
| Model Number | 8C-TAIDA1 (Part No. 51307132-175) |
| Module Type | Non-Redundant Analog Input IOTA (9″ carrier, coated) |
| Input Channels | 16 channels, selectable as single-ended or differential |
| Input Range | 1–5 V or 4–20 mA via 250 Ω resistor |
| Resolution | 16-bit ADC for high-precision measurement |
| Power Supply | 24 VDC, approx. 310 mA module current |
| Scan Time | 50 ms per channel |
| Accuracy | ±0.075% FS at 23.5 °C; ±0.15% FS across full operating range |
| Noise Rejection | CMRR: 70 dB; NMRR: 19 dB at 60 Hz; Crosstalk: –60 dB |
| Max Input Voltage | ±30 V without damage |
| Diagnostics | HART communication, hot-swap capability, self-monitoring |
| Operating Temp | 0–60 °C (storage –40–85 °C) |
| Mounting | 9″ IOTA carrier for Series 8 racks |
| Conformal Coating | G3 protective coating for harsh industrial conditions |
Manual/Datasheet PDF
