Overview

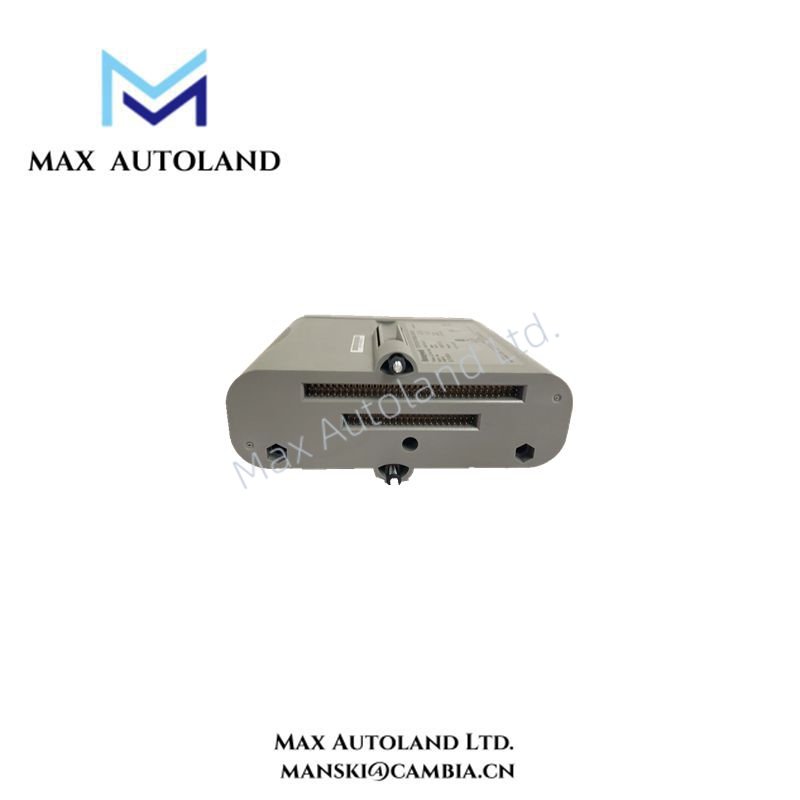

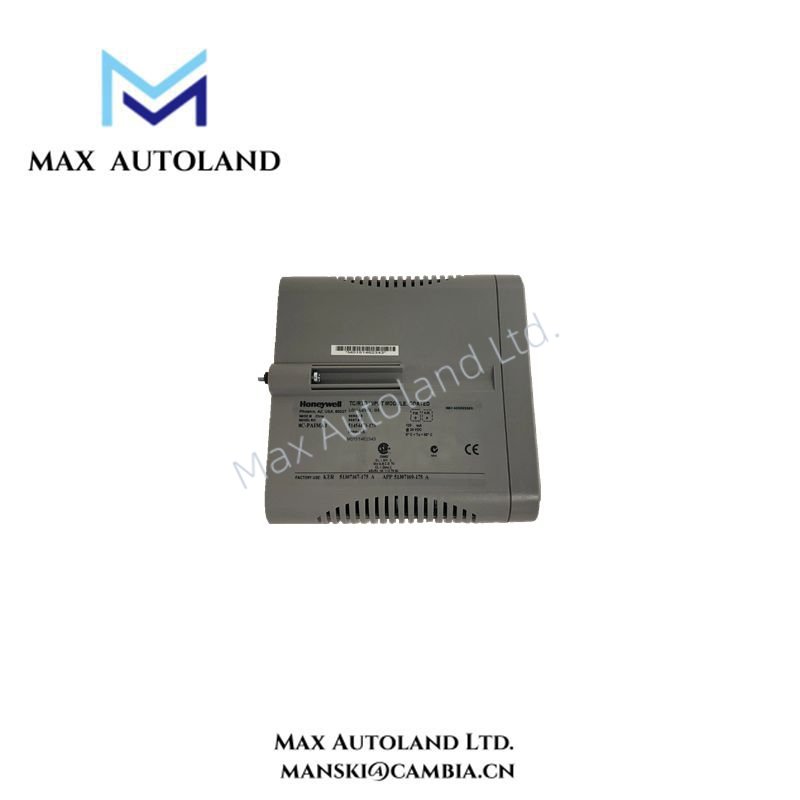

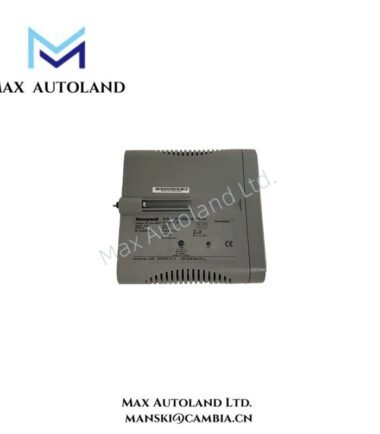

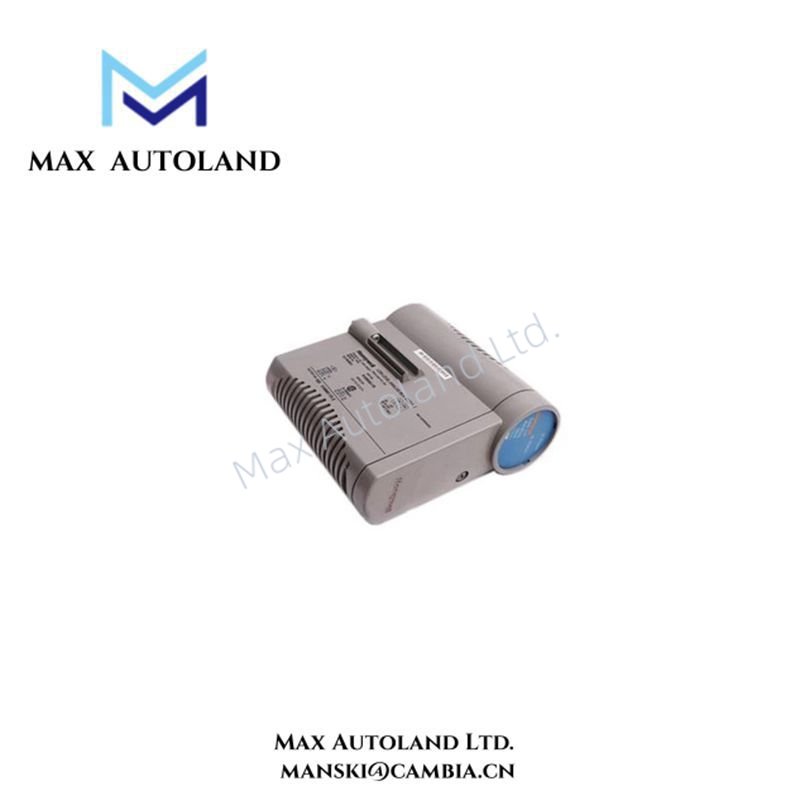

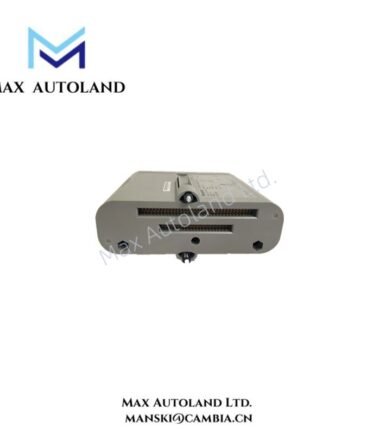

The Honeywell 8U-TAIXB1 is a redundant, uncoated analog input I/O Termination Assembly (IOTA) designed for the Experion LX Series 8 Controller. It features 16 single-ended channels, each supporting 4–20 mA current inputs from 2-wire or self-powered transmitters. This module is ideal for applications requiring reliable and precise analog signal acquisition in industrial automation systems.
Series 8 Field connections use a standard modular connector. The connector modularity allows for removal and insertion of the field wiring. This significantly reduces installation and maintenance procedures and can assist in field check out. Series 8 field connectors accept up to 12 AWG / 2.5 mm2 stranded wire.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 8U-TAIXB1 |
| Manufacturer | Honeywell |
| Input Channels | 8 |
| Signal Types | Voltage, Current, Temperature Non Redundant, Uncoated |
| Accuracy | ±0.1% of full scale |
| Channel Isolation | Yes |
| Mounting | Rack-mount (Series 8 I/O system) |
| Power Supply | 24V DC, 120mA |
Manual/Datasheet PDF
8U-TAIXB1 Honeywell C300 ANALOG INPUT IOTA Single Ended datasheet
