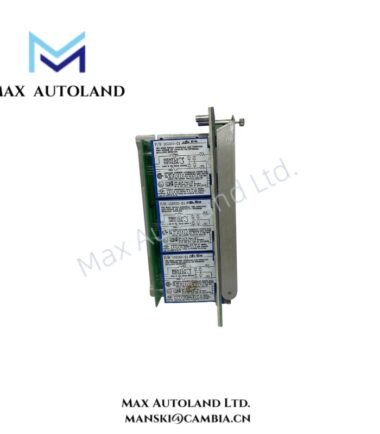

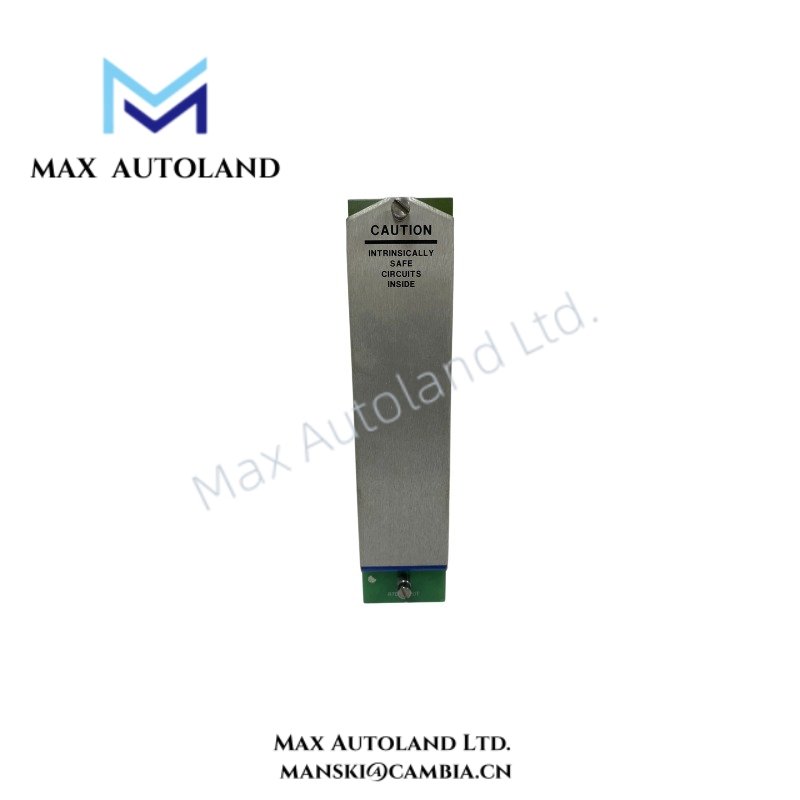

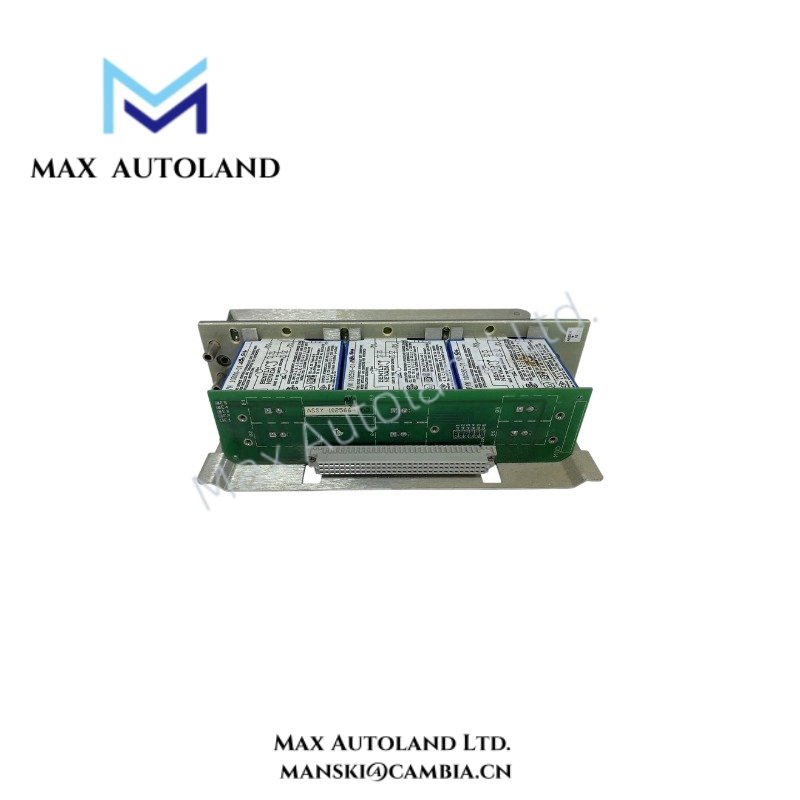

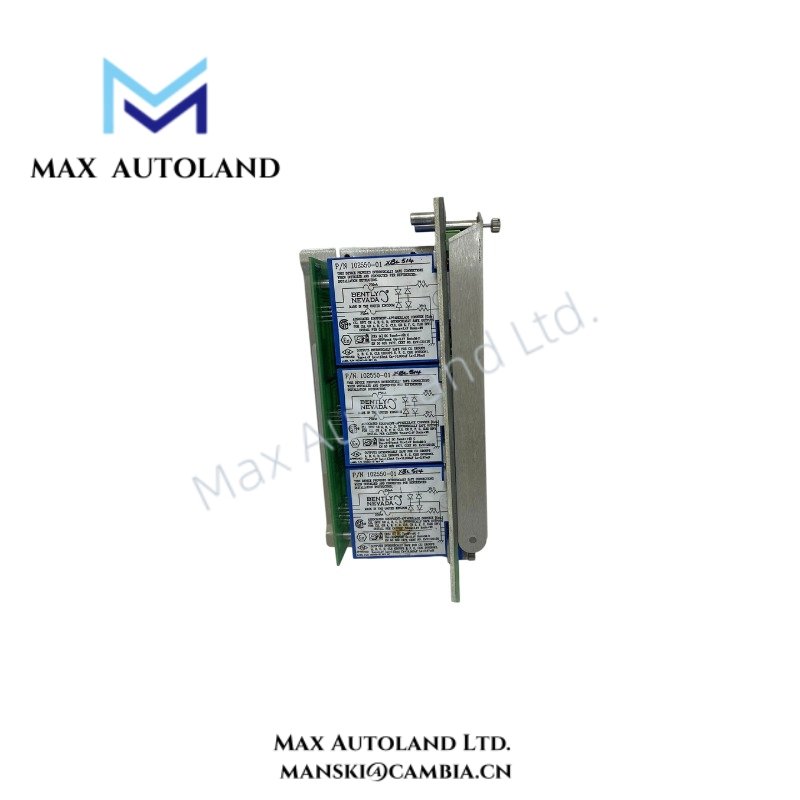

102550-01 Bently Nevada Monitor Main Module

Hardware Specifications

Machinery Monitoring Signal Considerations

The 102550-01 processes monitoring-related electrical data within its assigned machinery protection architecture. Therefore, signal cable routing should maintain separation between low-level monitoring circuits and high-energy power conductors.

For eddy-current measurement systems, probe scaling depends on the complete transducer system configuration, including the probe, extension cable, and signal conditioning hardware. Where applicable, technicians should validate gap voltage against the specified system target before accepting vibration or position measurements.

In addition, correct shield termination and physical separation between adjacent signal cables help reduce cross-talk. These practices support stable signal acquisition for machinery condition evaluation and rotor dynamics analysis.

Frequently Asked Questions

Q: Can the 102550-01 operate directly from a 24 VDC power source?
A: The provided specifications identify a 24 VDC power supply requirement. Installation should nevertheless follow the applicable system wiring documentation for polarity, grounding, and protective circuits.

Q: Does the available data specify the module power consumption?
A: No. The provided information does not state a specific power consumption value. Therefore, power supply loading calculations should use verified manufacturer documentation for the complete installed system.

Q: How should RS-485 communication wiring be installed?
A: Use suitable industrial communication cable and maintain correct conductor polarity. In addition, follow the applicable RS-485 network requirements for shielding, grounding, cable routing, termination, and node configuration.

Field Installation Guidelines

Install the Bently Nevada 102550-01 in a compatible rack or control cabinet with adequate mechanical support.

Verify the 24 VDC supply polarity before connecting the module. In addition, isolate supply wiring from low-level monitoring and communication circuits where practical.

Route RS-485 communication wiring separately from high-current AC or switching circuits. Use shielded cable where required by the system installation design, and terminate the shield according to the applicable grounding scheme.

Before commissioning, inspect connectors, mounting hardware, cable strain relief, and protective grounding. Then verify communication integrity and monitoring signals through the associated system diagnostics.
