Overview

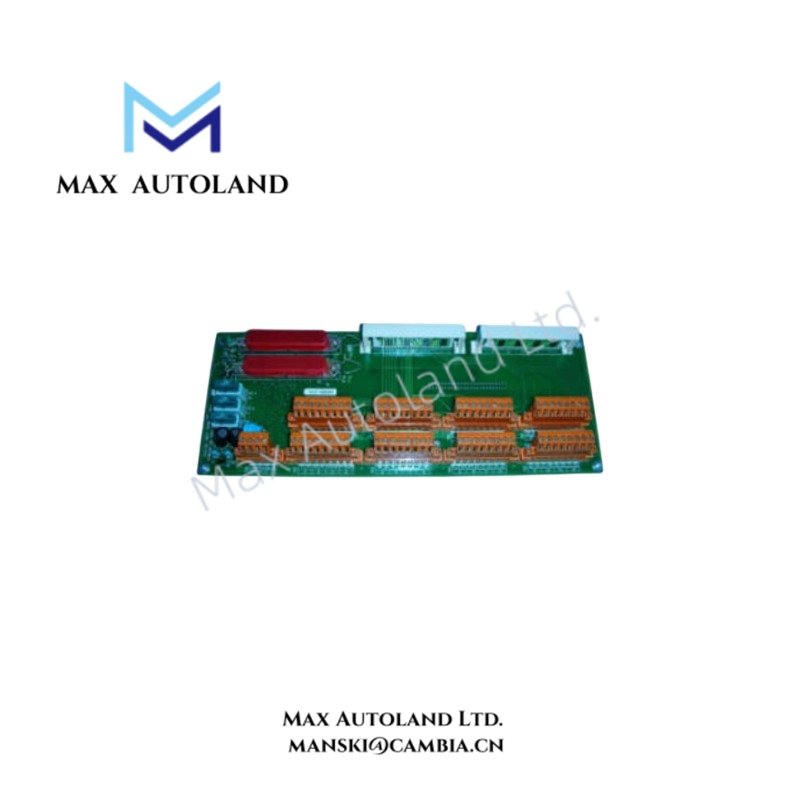

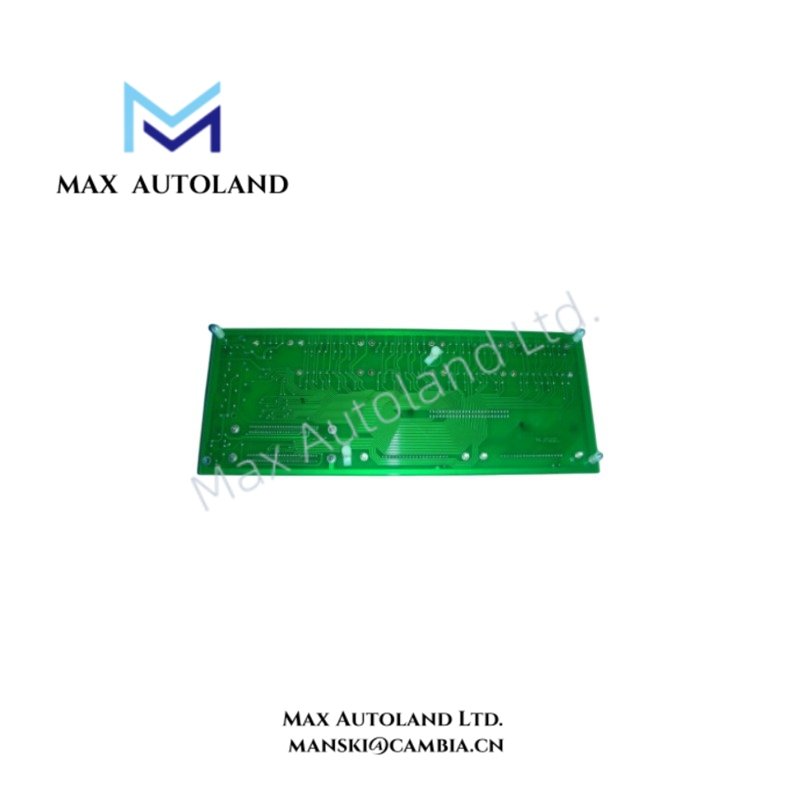

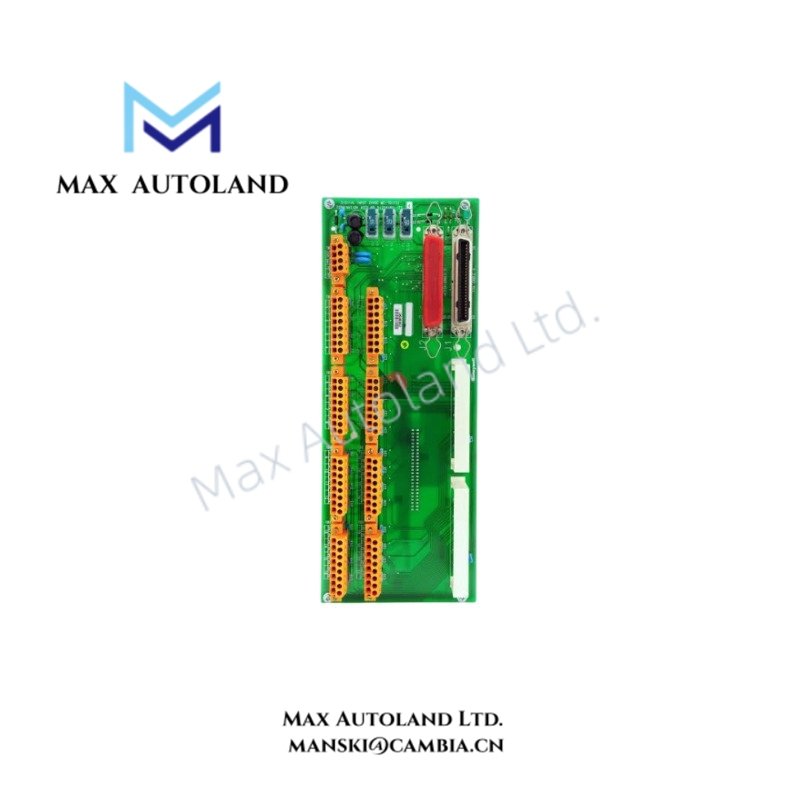

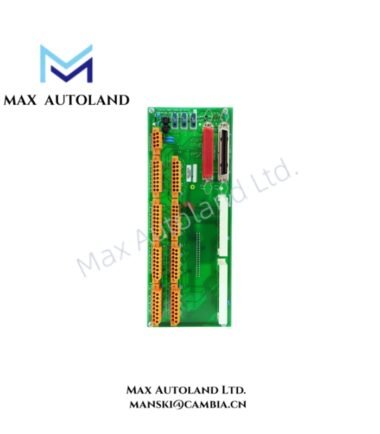

The Honeywell MU-TDIY22 51204160-125, also cataloged as the MU-TDIY22 Digital Input Field Termination Assembly, provides the physical interface for discrete field signals within Honeywell TDC 3000 control system architectures. It terminates field wiring and transfers digital input states to the associated control-system I/O circuitry.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDIY22 |
| Part Number | 51204160-125 |
| Brand | Honeywell |
| Product Type | Digital Input Field Termination Assembly |
| System Compatibility | Honeywell TDC 3000 DCS |
| Signal Type | Digital / Discrete Input |
| Field Interface | Field wiring termination and signal interface |
Honeywell DCS Digital Signal Interface
The MU-TDIY22 handles the physical termination of discrete field wiring before the signals enter the associated Honeywell control-system I/O path. Therefore, installation should maintain correct terminal assignment and signal polarity according to the applicable Honeywell system documentation.
For process instrumentation using discrete contacts, the field circuit should remain electrically separated from unrelated signal wiring. In addition, technicians should verify the applicable input voltage and current requirements before energizing the connected circuit.
Honeywell DCS installations may also include analog instruments using 4-20 mA HART loops or other process communication interfaces. However, the supplied information does not establish those functions for the MU-TDIY22, so they should not be assigned to this assembly without the applicable system documentation.
Frequently Asked Questions (FAQ)
Q: What function does the MU-TDIY22 51204160-125 perform?
A: It provides a field termination and physical interface for digital or discrete input signals within the associated Honeywell TDC 3000 DCS architecture.
Q: Can the input voltage and channel count be determined from the supplied part number alone?
A: No. The supplied information does not specify the channel count, input voltage, or input-current limits. These values should be verified against the applicable Honeywell hardware documentation.
Q: Does the MU-TDIY22 provide analog 4-20 mA signal processing?
A: The supplied data identifies the assembly as a digital input interface. No 4-20 mA analog input function is established by the provided information.
Field Installation Guidelines
- Confirm the assembly model and part number before installation: MU-TDIY22, 51204160-125.
- Verify terminal assignments against the applicable Honeywell system drawings.
- De-energize the associated field circuit before connecting or removing field wiring.
- Route digital input wiring separately from high-current power conductors where practical.
- Maintain the specified field wiring polarity and termination arrangement.
- Connect cable shields according to the plant grounding design and Honeywell installation documentation.
- Inspect terminal connections for correct conductor placement and secure mechanical termination.
- Verify field-loop voltage and continuity before connecting the assembly to energized I/O circuitry.
- Do not apply an unverified external voltage to the input terminals.
- After installation, perform point-to-point verification from the field device through the DCS input channel.
