Overview

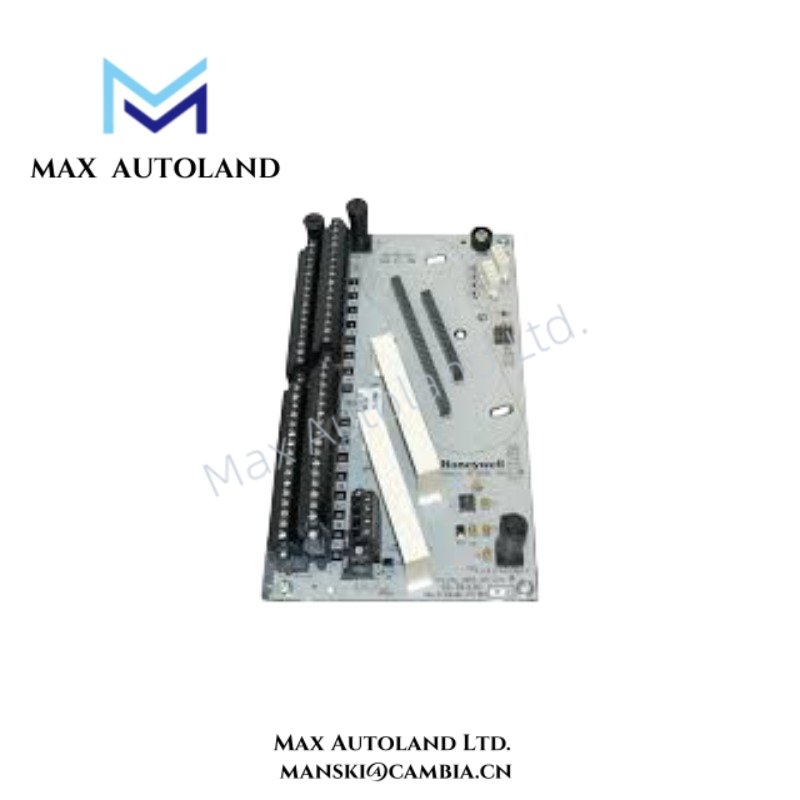

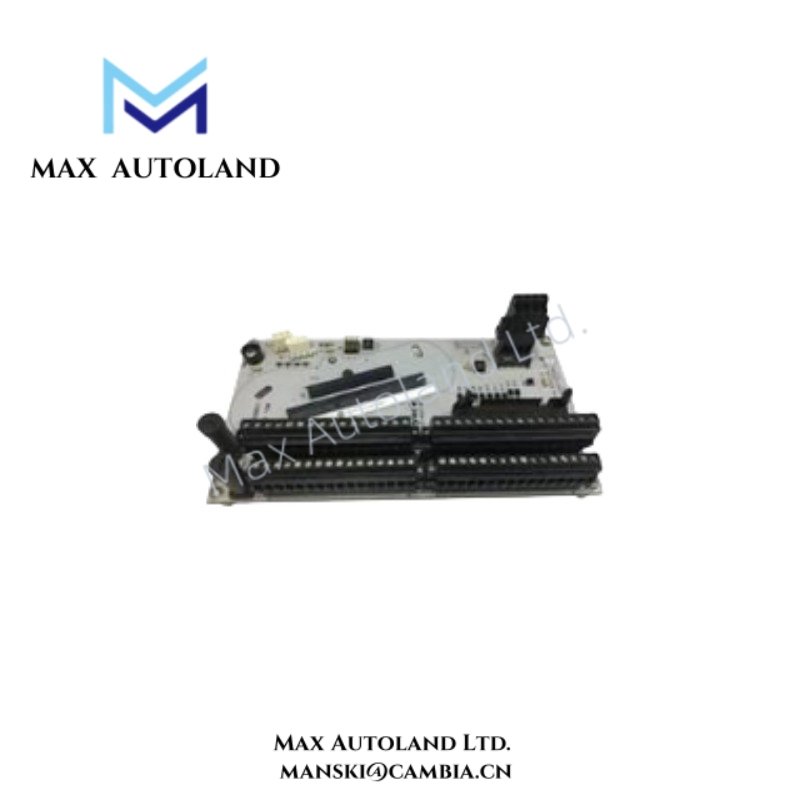

Configured for discrete field signal termination in Honeywell Experion PKS Series C systems, the Honeywell CC-TOIL01 (CC-TOIL01 Digital I/O Termination Assembly) provides direct physical and electrical execution between field devices and the C300 controller I/O architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-TOIL01 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Approx. 3.5 mA per channel, dependent on operational load |
| Product Series | Experion PKS Series C |
| Module Type | Digital I/O Termination Assembly |
| Signal Type | Discrete ON/OFF field signals |
| Operating Voltage | 24 VDC nominal |
| Voltage Range | 18 VDC to 30 VDC |
| Channel Capacity | Typically 16 channels |
| Isolation Type | Channel-to-channel and channel-to-system galvanic isolation |
| Mounting Method | Series C cabinet baseplate mount / DIN rail compatible configuration |
| Conformal Coating | G3 standard coating for industrial environments |
Honeywell DCS Signal Interface Characteristics
The CC-TOIL01 manages discrete signal termination between field wiring and the Honeywell Experion PKS Series C control platform. It accepts ON/OFF field inputs or outputs according to the connected I/O configuration. Therefore, the assembly maintains defined signal paths between external devices and controller processing hardware.
In addition, the module supports channel-to-channel isolation to reduce interference from field wiring conditions. The termination design separates field-side electrical circuits from control-side electronics, which limits the impact of ground potential differences and transient disturbances.
The CC-TOIL01 operates within the Series C I/O architecture and supports cabinet-based installation practices. It provides status information through the control system interface when configured with compatible I/O modules.
Frequently Asked Questions (FAQ)
Q: Does the CC-TOIL01 support hot-swap replacement?
A: The Series C architecture supports module replacement procedures when the installed configuration and system design permit hot-swap operation. The specific replacement method depends on the connected I/O module and cabinet configuration.
Q: What type of field signals does the CC-TOIL01 handle?
A: The CC-TOIL01 handles discrete ON/OFF industrial field signals from devices such as switches, relay contacts, and similar discrete instruments.
Q: How should field wiring be installed with the CC-TOIL01?
A: Field wiring should follow standard industrial practices, including proper shielding, separation from high-voltage cables, and correct grounding methods based on the control cabinet design.
Field Installation Guidelines
Install the CC-TOIL01 on the designated Series C cabinet mounting structure and verify mechanical alignment before connecting field wiring.
Use appropriate terminal identification during wiring to prevent channel assignment errors. Keep signal cables separated from high-current power conductors to reduce electrical noise coupling.
Connect cable shields according to the site grounding standard. Avoid multiple grounding points that may introduce unwanted ground loops.
Before system operation, verify field device polarity, signal continuity, and I/O channel assignment through the Experion PKS engineering tools.
