Overview

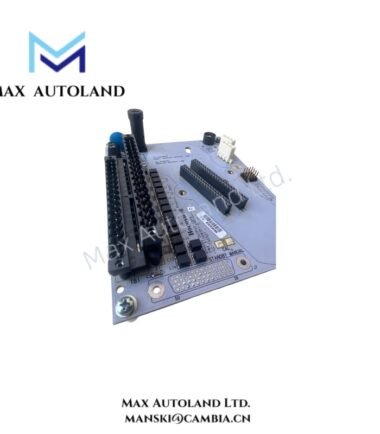

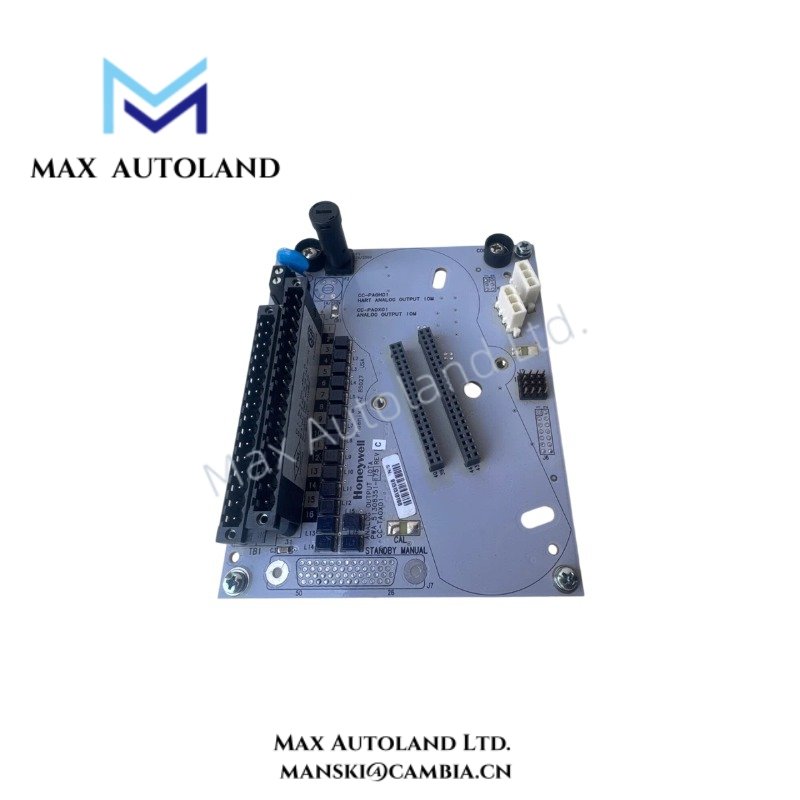

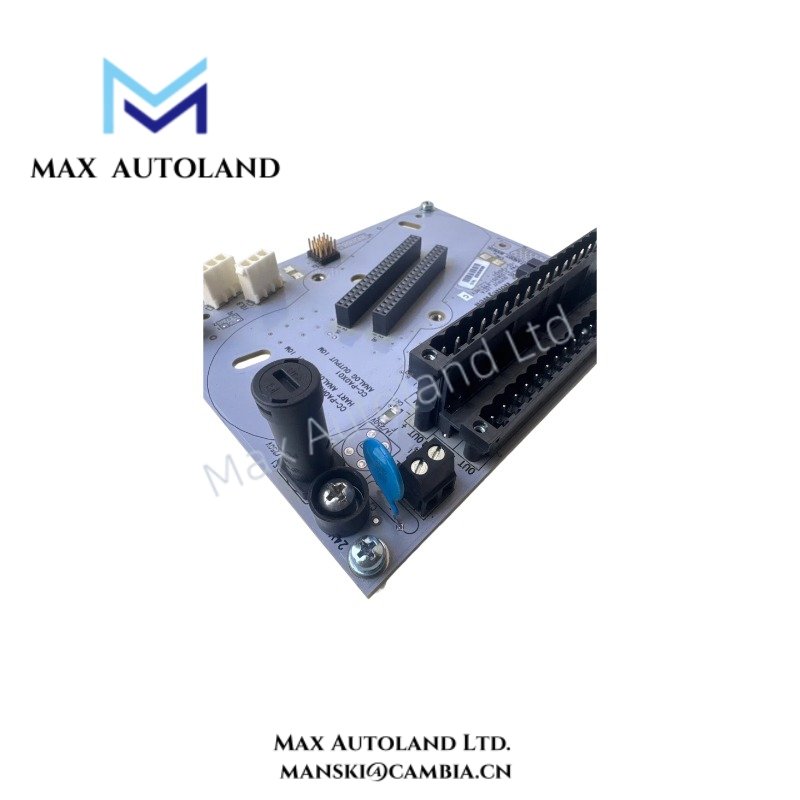

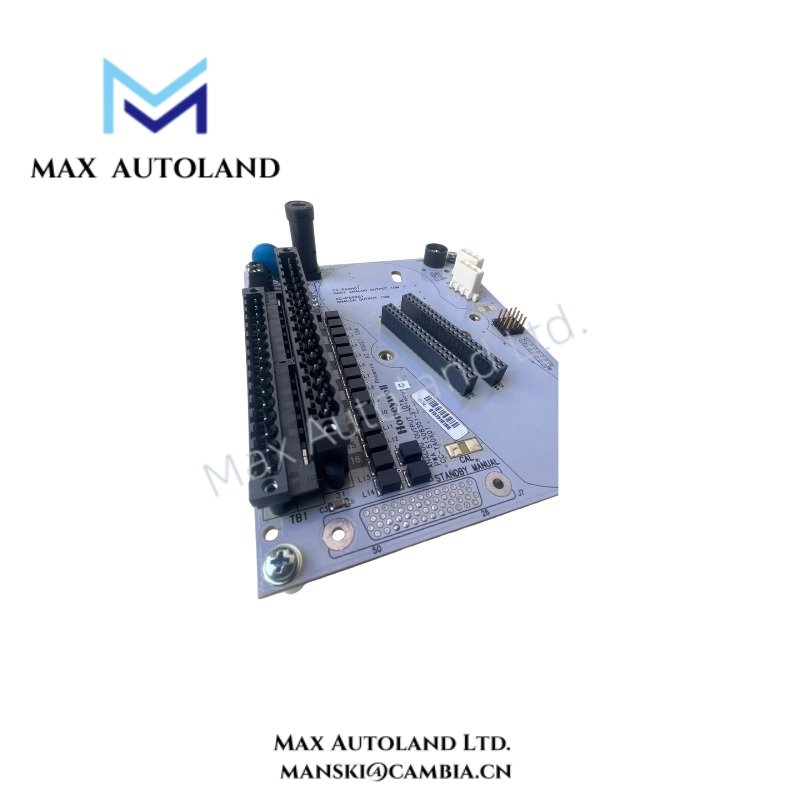

Configured for 16-channel analog current output in the Honeywell Experion PKS Series C I/O architecture, the Honeywell CC-TAOX01 51308351-175 (CC-TAOX01 Output IOTA Board) provides direct electrical termination and conditioning for 4-20 mA output signals. The board operates from 24 VDC and uses a non-redundant configuration with conformal coating.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-TAOX01 51308351-175 |
| Base Model | CC-TAOX01 |
| Brand | Honeywell |
| Product Type | Output IOTA Board |
| System | Experion PKS Series C |
| Configuration | Non-redundant |
| Coating | Conformal coated |
| Supply Voltage | 24 VDC |
| Output Type | 4-20 mA |
| Output Channels | 16 |
| Directly Settable Output Current Range | 0 mA, 2.9 mA to 21.1 mA |
| Maximum Resistive Load | 800 ohms |
| Maximum Output Compliant Voltage | 16 V |
| Maximum Open Circuit Voltage | 22 V |
| Output Ripple | < 100 mV peak-to-peak at power line frequency across 250 ohm load |
| Output Temperature Drift | 0.005% of Full Scale/deg C |
| Output Readback Accuracy | +/- 4% of Full Scale |
| Output Current Linearity | +/- 0.05% of Full Scale nominal |
| Resolution | +/- 0.05% of Full Scale |
| Calibrated Accuracy | +/- 0.35% of Full Scale at 25 deg C, including linearity |
| Operating Temperature | 60 deg C maximum |
| Weight | 0.24 kg |
| Dimensions | 14.6 x 12.1 x 6.8 cm estimated shipping size |
| Origin | USA |
| Shipment Location | Xiamen, China |
| Tariff Code | 8537101190 |
| Manufacturer | Honeywell |
Process Control and Analog Output Characteristics
The CC-TAOX01 uses 4-20 mA current output channels for analog actuator and final-control-element interfaces. Each of its 16 channels provides a directly settable current range from 0 mA to 21.1 mA, subject to the specified operating limits.
The output stage supports loads up to 800 ohms and provides a maximum compliant voltage of 16 V. Therefore, field loop resistance must remain within the available compliance range. The specified maximum open circuit voltage is 22 V.
The board specifies +/- 0.05% of Full Scale nominal current linearity and +/- 0.35% of Full Scale calibrated accuracy at 25 deg C, including linearity. In addition, the output temperature drift is specified as 0.005% of Full Scale/deg C.
For DCS signal integration, Honeywell process-control hardware commonly uses standardized 4-20 mA signaling. However, the supplied specifications identify this board specifically as an analog output IOTA and do not state HART communication capability. Therefore, HART functionality should not be assumed for this model.
Frequently Asked Questions (FAQ)
Q: How many analog output channels does the CC-TAOX01 provide?
A: The CC-TAOX01 provides 16 analog output channels, with a specified 4-20 mA output type.
Q: What load can each output support?
A: The specified maximum resistive load is 800 ohms. The output also provides a maximum compliant voltage of 16 V.
Q: What output accuracy does the board provide?
A: The calibrated accuracy is +/- 0.35% of Full Scale at 25 deg C, including linearity. The specified output readback accuracy is +/- 4% of Full Scale.
Field Installation Guidelines
- Confirm the CC-TAOX01 51308351-175 model and termination assignment before installation.
- Verify the 24 VDC supply and observe the applicable Honeywell Series C installation requirements.
- Route 4-20 mA signal wiring separately from high-voltage power conductors where practical.
- Maintain correct polarity for each analog output loop and verify the connected load before energizing the circuit.
- Ensure the total loop resistance remains within the specified 800 ohm maximum resistive load.
- Use appropriate shield termination practices according to the site grounding design and Honeywell installation documentation.
- Check field wiring for shorts, open circuits, and unintended ground connections before commissioning.
- Confirm output current values against the connected field device after installation.
- Do not infer HART, redundancy, or hot-swap capability unless the applicable system documentation explicitly specifies those functions.
