Overview

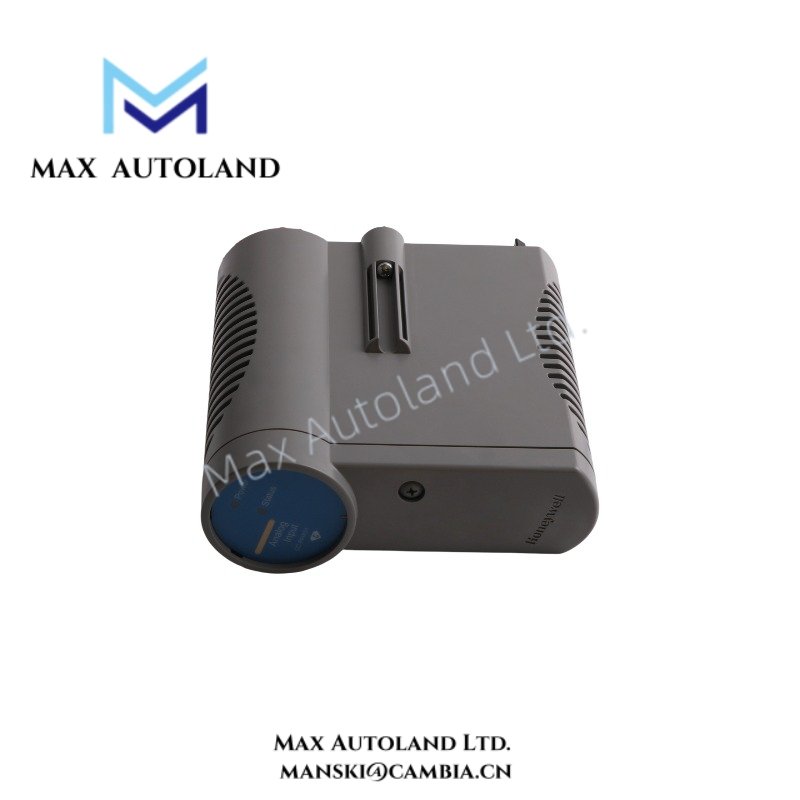

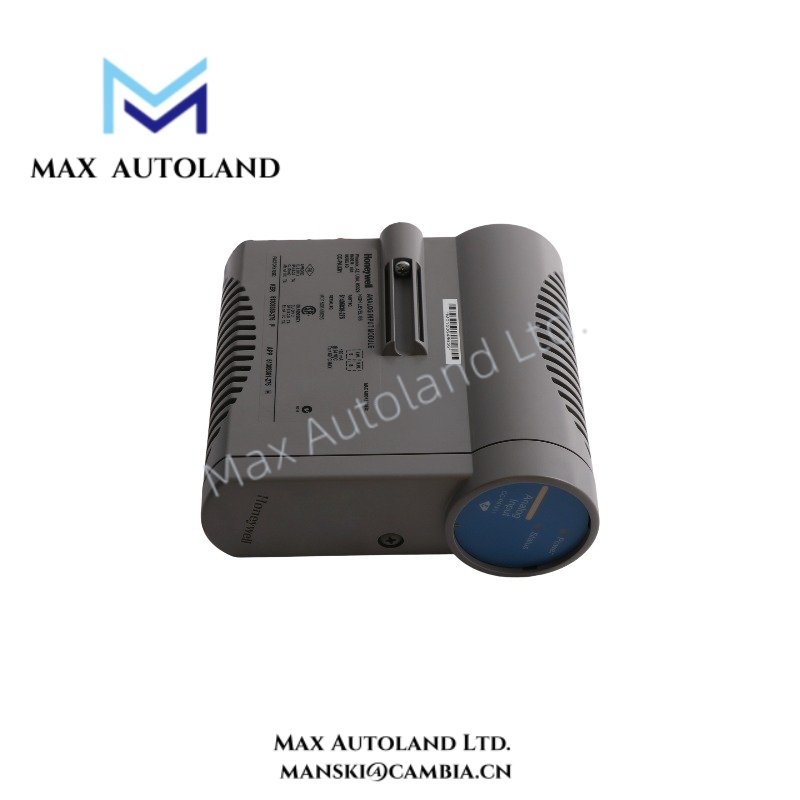

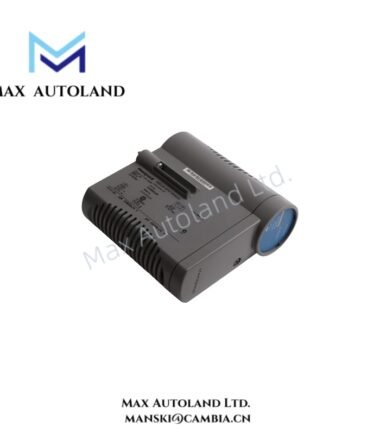

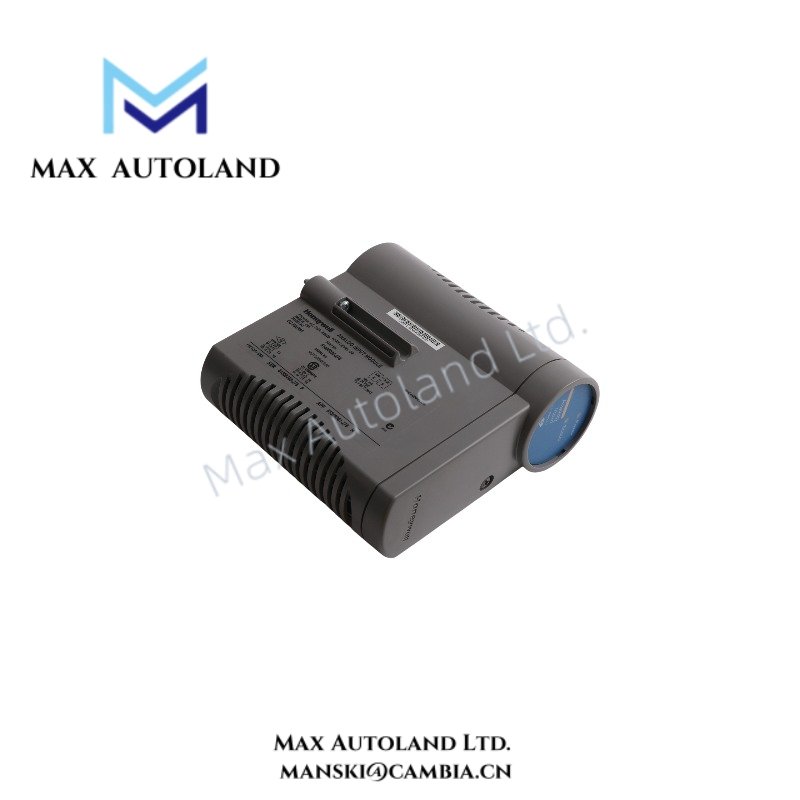

The Honeywell CC-PAIX01 51405038-275, also cataloged as the CC-PAIX01 High-Level Analog Input Module, acquires 0-20 mA and 4-20 mA field signals for processing within the Honeywell Experion PKS Series C I/O architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-PAIX01 |
| Spare Model | 51405038-275 |
| Brand | Honeywell |
| Product Series | Experion PKS Series C / C300 |
| Product Type | High-Level Analog Input Module (PWA) |
| Input Channels | 16 |
| Input Configuration | Single-ended or differential |
| Input Signal Range | 0-20 mA / 4-20 mA |
| A/D Resolution | 16-bit |
| Measurement Accuracy | +/- 0.1% of span |
| Communication | HART protocol supported |
| Operating Power Supply | 24 VDC +/- 10% |
| Isolation | Channel-to-channel and circuit isolation |
| Diagnostics | Open circuit, short circuit, over-range, HART status |
| Hot Swap | Supported |
| Manufacturer | Honeywell |
| Origin | USA |
| Weight | 0.4 kg |
| Dimensions | 5.5 x 16 x 14.5 cm shipping size |
4-20 mA HART and Channel Isolation
The CC-PAIX01 accepts standard 0-20 mA and 4-20 mA analog transmitter signals and converts them through a 16-bit analog-to-digital path. HART communication provides a digital communication layer over compatible 4-20 mA loops, allowing field-device status and diagnostic data to reach the control system.
Furthermore, channel-to-channel isolation limits the propagation of electrical interference between input circuits. The module also provides diagnostic monitoring for open-circuit, short-circuit, over-range, and HART communication conditions.
The module supports hot-swappable replacement within the Series C I/O architecture. However, the specific system configuration should define the applicable removal, insertion, and controller-state procedures.
Frequently Asked Questions (FAQ)
Q: What input signals does the CC-PAIX01 support?
A: The module accepts 0-20 mA and 4-20 mA analog input signals across 16 configurable input channels.
Q: Does the CC-PAIX01 support HART communication?
A: Yes. The module supports HART communication for compatible smart field devices connected through applicable 4-20 mA loops.
Q: Can the CC-PAIX01 be replaced while powered?
A: The supplied specifications identify the module as hot-swappable. Follow the Experion PKS Series C installation procedure and cabinet-level safety requirements during replacement.
Field Installation Guidelines
- Install the module in the designated Honeywell Series C I/O hardware location.
- Verify module identification before insertion, including CC-PAIX01 and 51405038-275.
- Confirm that field wiring matches the configured input channel assignments.
- Route analog signal wiring separately from high-voltage and high-current conductors where practical.
- Use appropriate shielded instrumentation cable for low-level analog signal circuits.
- Terminate cable shields according to the plant grounding design and Honeywell installation requirements.
- Avoid creating unintended ground loops through multiple shield termination points.
- Verify transmitter loop polarity before energizing the input circuit.
- Confirm the configured 4-20 mA or 0-20 mA signal range before commissioning.
- For HART-enabled instruments, verify loop wiring and HART communication compatibility before commissioning.
- During hot-swap operations, follow the applicable Series C cabinet procedure and electrical safety controls.
