Overview

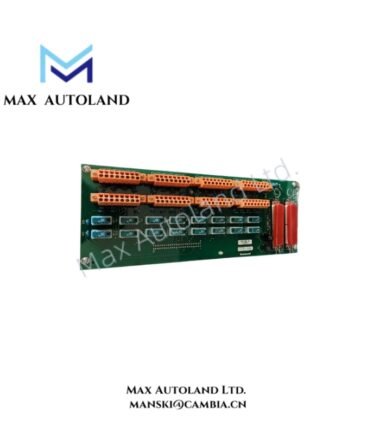

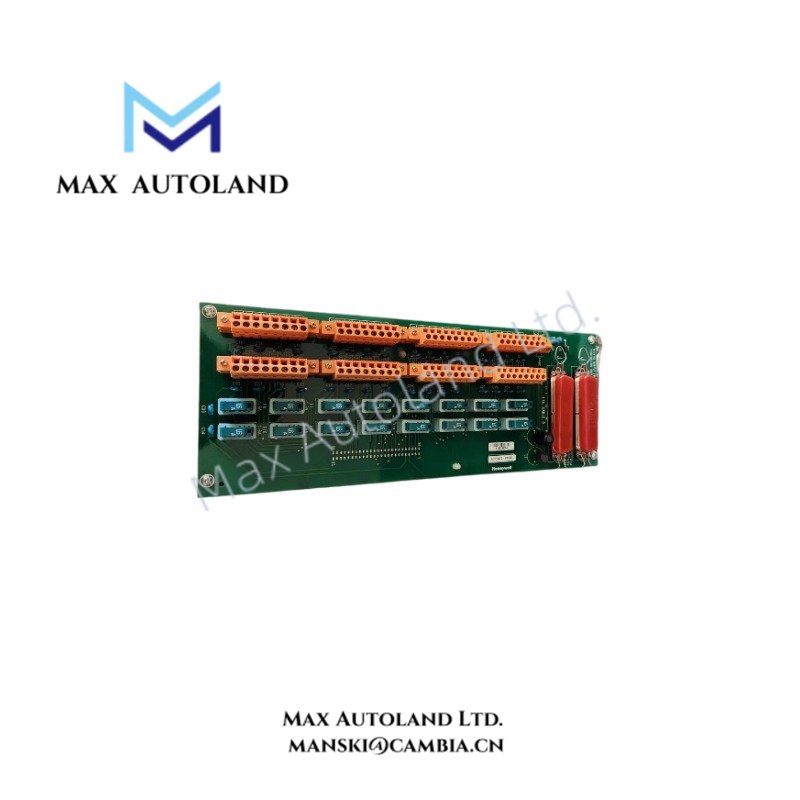

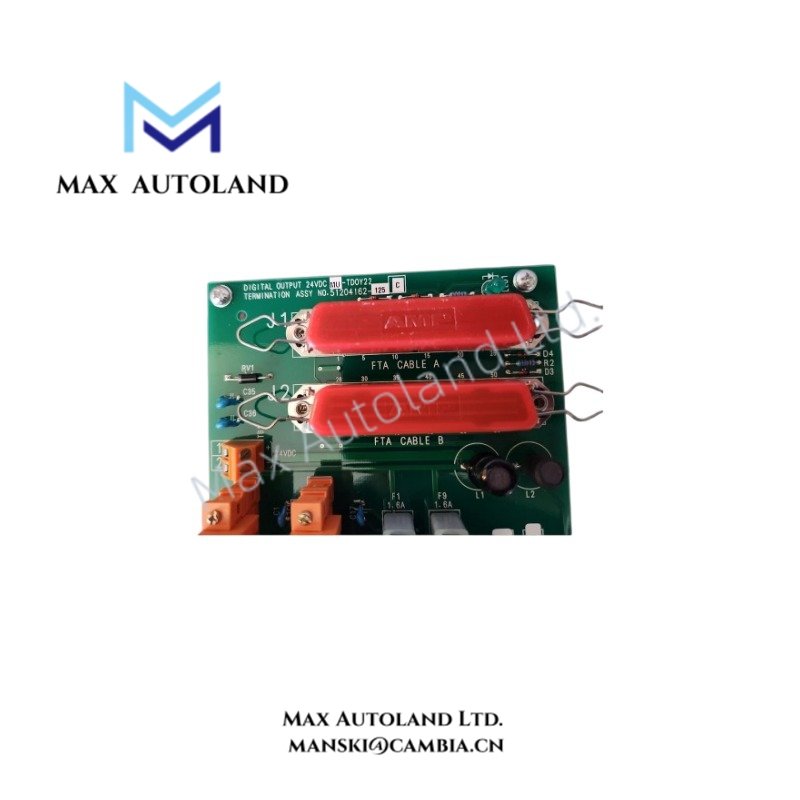

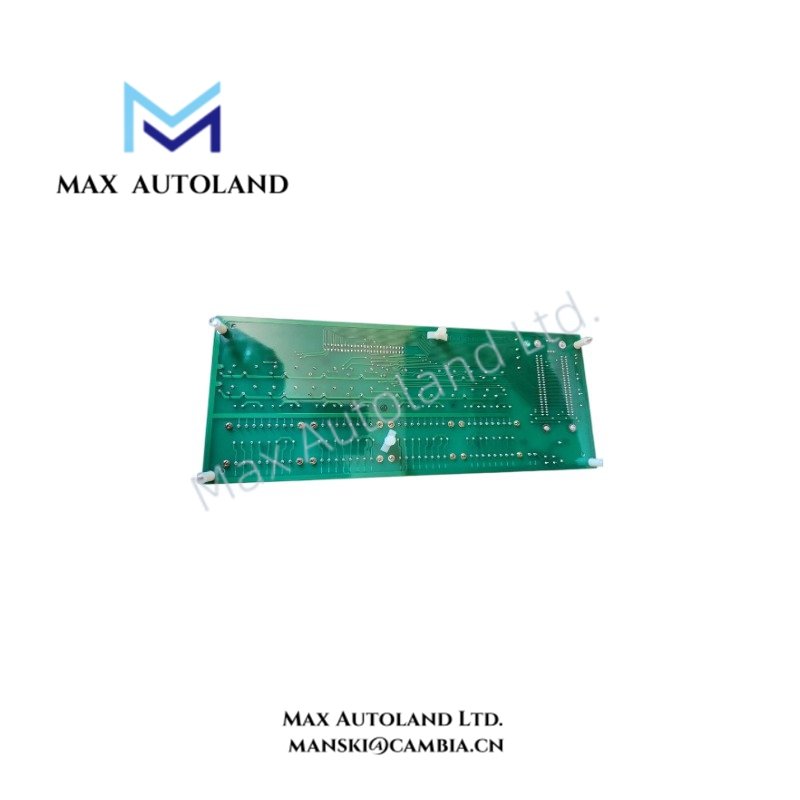

Configured for 24 VDC discrete output termination in Honeywell DCS I/O architectures, the Honeywell MU-TDOY22 51204162-125 (MU-TDOY22 Digital Output Field Termination Assembly) provides physical termination for 32 isolated digital output channels. The assembly uses compression terminals and supports compatible MU/MC-PDOY22 I/O hardware.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDOY22 |
| Brand | Honeywell |
| Part Number | 51204162-125 |
| Product Type | Digital Output Field Termination Assembly (FTA) |
| I/O Function | Digital Output |
| Output Type | 24 VDC isolated digital output |
| Number of Channels | 32 |
| Channel Isolation | Isolated |
| Load Voltage Range | 15 to 30 VDC |
| Maximum Load Current | Up to 500 mA per channel |
| Field Terminal Type | Compression terminals |
| Mounting Size | Size B |
| CE Compliance | Yes |
| Redundancy Support | Yes |
| Compatible I/O Hardware | MU/MC-PDOY22 |
| System Application | Honeywell DCS, Experion PKS, TPS |
| Field Wiring | Compression terminal connection |
| Origin | USA |
Honeywell DCS Output Isolation and Field Interface
The MU-TDOY22 terminates 32 discrete output circuits between compatible Honeywell I/O hardware and external field loads. Each output channel provides an isolated interface for 24 VDC discrete control signals. Therefore, the FTA can interface loads such as solenoid valves, relays, contactors, actuators, and status indicators within the documented electrical limits.
The 51204162-125 configuration uses compression terminals and a Size B mounting format. In addition, the assembly supports redundant I/O configurations when the associated system architecture and I/O hardware provide redundancy.
For Honeywell process-control installations, channel-to-channel isolation must be maintained according to the approved wiring architecture. The FTA itself provides isolated digital output termination; it does not implement 4-20 mA HART communication or FOUNDATION Fieldbus signaling.
Frequently Asked Questions
Q: How many output channels does the MU-TDOY22 provide?
A: The MU-TDOY22 provides 32 isolated digital output channels.
Q: What field supply range is specified for the 51204162-125 version?
A: The supplied technical data specifies a 15 to 30 VDC load voltage range for the 24 VDC digital output interface.
Q: What terminal and mounting configuration does this FTA use?
A: The 51204162-125 version uses compression terminals and a Size B mounting format. The supplied data does not specify hot-swap limits, backplane current consumption, or output switching delay.
Field Installation Guidelines
Install the MU-TDOY22 according to the applicable Honeywell hardware and wiring documentation.
- Verify the FTA part number before installation.
- Confirm compatibility with the installed MU/MC-PDOY22 I/O hardware.
- Verify field supply voltage before connecting each output circuit.
- Keep individual output loads within the specified channel current limit.
- Follow the Honeywell terminal assignment and wiring diagrams.
- Separate discrete output wiring from high-voltage and high-noise circuits where required.
- Apply cabinet grounding and shield termination practices specified by the system installation documentation.
- Confirm polarity and common connections before energizing the field circuits.
- Verify redundant I/O wiring before commissioning a redundant configuration.
- Do not apply unspecified field voltages or loads to the output terminals.
