Overview

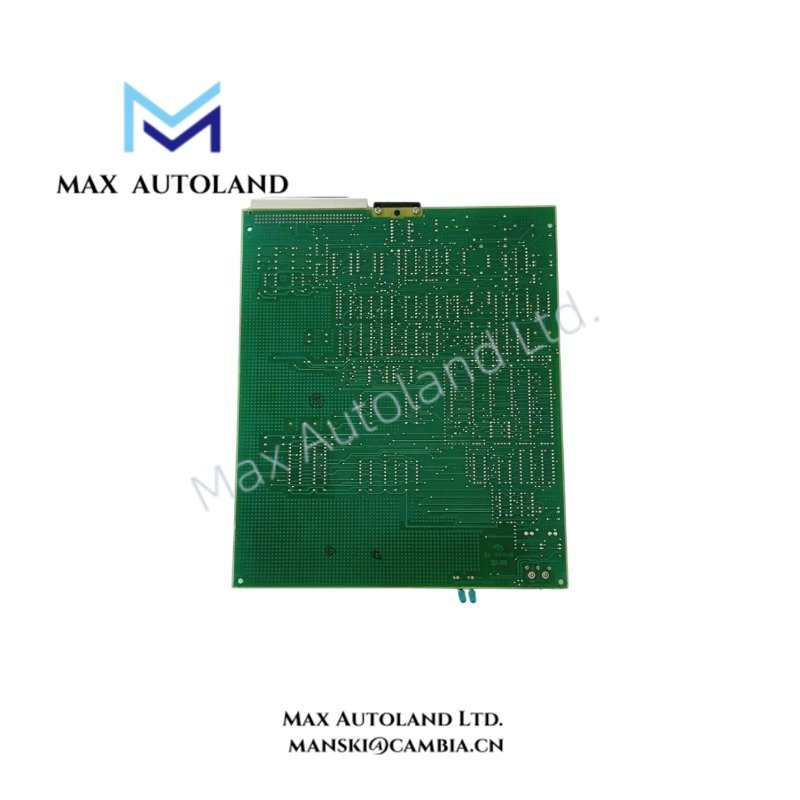

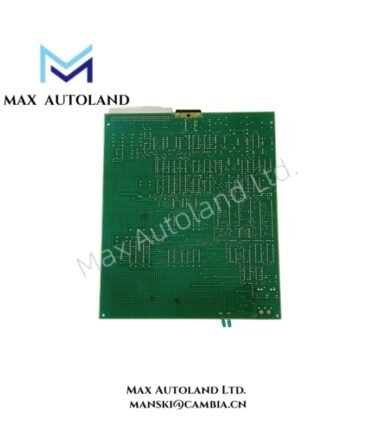

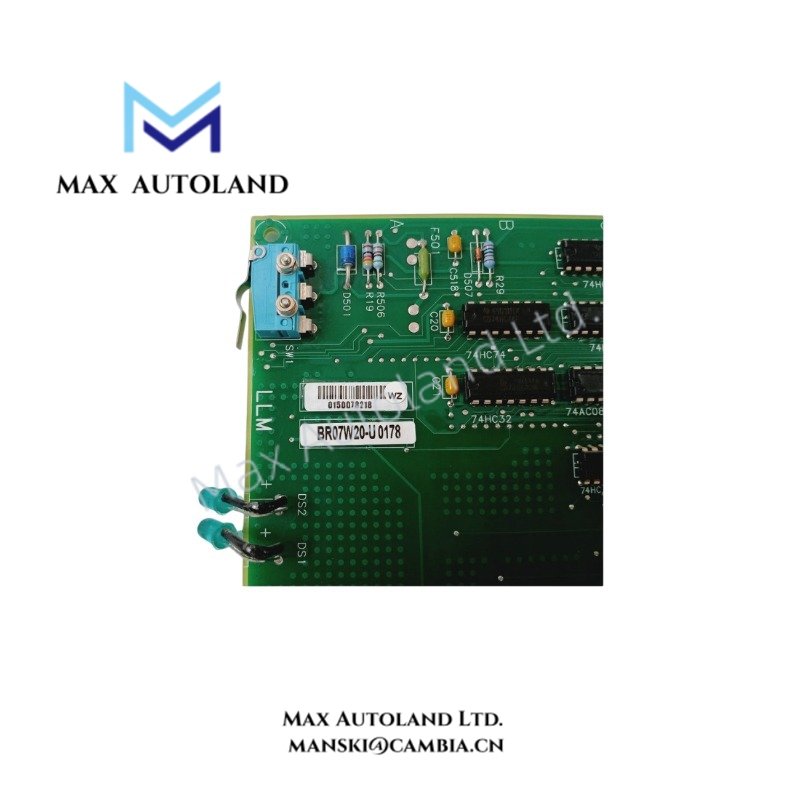

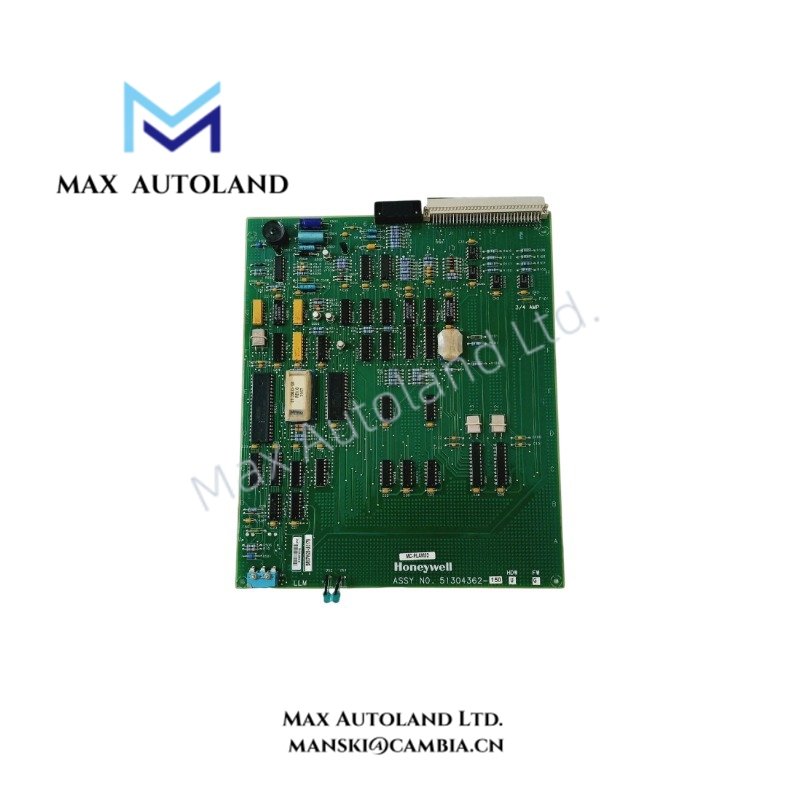

Configured for low-level analog signal multiplexing in Honeywell TotalPlant Solution (TPS) and Experion PKS systems, the Honeywell MC-PLAM02 51304362-150 (MC-PLAM02 Low Level Analog Input Multiplexer Processor) performs signal scanning, conditioning, and analog-to-digital conversion for field inputs. The processor supports PM, APM, HPM, and EHPM controller environments and interfaces with Field Termination Assemblies (FTAs) through the I/O architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-PLAM02 |
| Part Number | 51304362-150 |
| Brand | Honeywell |
| Product Type | Low Level Analog Input Multiplexer Processor (LLMux IOP) |
| System Compatibility | TotalPlant Solution (TPS), Experion PKS |
| Controller Compatibility | PM, APM, HPM, EHPM |
| Input Capacity | Up to 32 low-level analog inputs |
| Signal Processing | Analog-to-digital conversion, signal conditioning, input scanning |
| Field Interface | Field Termination Assembly (FTA) |
| Communication | Redundant I/O architecture |
| Input Types | Low-level analog signals, including thermocouple and RTD signals |
| Conformal Coating | Available on applicable hardware configurations |
| Origin | USA |
Process Control and Low-Level Signal Handling
The MC-PLAM02 processes low-level analog signals before transferring measurement data to the associated controller. It multiplexes multiple field inputs through a common processor architecture, then performs signal conversion and scanning.
For thermocouple applications, the field signal path requires appropriate termination and signal conditioning. RTD installations likewise require correct sensor wiring and FTA configuration.
The processor operates within Honeywell PM, APM, HPM, and EHPM architectures. Therefore, system configuration must match the installed controller generation and associated I/O hardware.
Channel-to-channel isolation characteristics should be verified against the applicable Honeywell hardware documentation before connecting field circuits. Similarly, cold junction compensation (CJC) requirements for thermocouple measurements depend on the associated termination and input configuration rather than the processor model alone.
Frequently Asked Questions
Q: How many low-level analog inputs can the MC-PLAM02 support?
A: The supplied specifications state a capacity of up to 32 low-level analog inputs.
Q: Which Honeywell controller environments support the MC-PLAM02?
A: The supplied data identifies PM, APM, HPM, and EHPM controller environments as compatible platforms.
Q: Can the MC-PLAM02 process thermocouple and RTD signals?
A: Yes. The supplied information identifies thermocouples and RTDs as applicable low-level analog field signals.
Field Installation Guidelines
- Install the processor in the designated Honeywell I/O hardware assembly and follow the applicable mounting requirements.
- Connect the associated Field Termination Assembly (FTA) using the specified system wiring architecture.
- Route low-level analog signal wiring separately from high-current power conductors and high-noise switching circuits.
- Use shielded instrumentation cable where required by the field device and system installation design.
- Terminate cable shields according to the Honeywell installation standard applicable to the TPS or Experion PKS system. Avoid unintended shield loops.
- Verify thermocouple polarity and sensor type before commissioning each input channel.
- Verify RTD wiring configuration and terminal assignments before applying field signals.
- Confirm the I/O configuration in the controller matches the physical FTA and connected field devices.
- Check all redundant I/O connections and terminations before placing the processor into service.
- Do not apply field wiring or operating conditions outside the limits specified by the applicable Honeywell system documentation.
