Overview

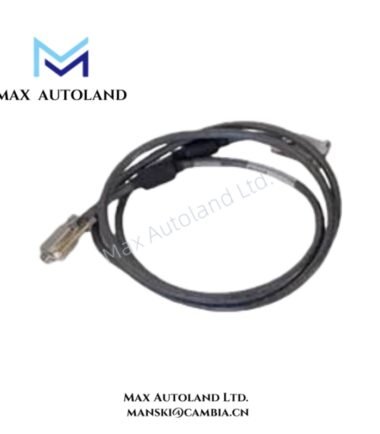

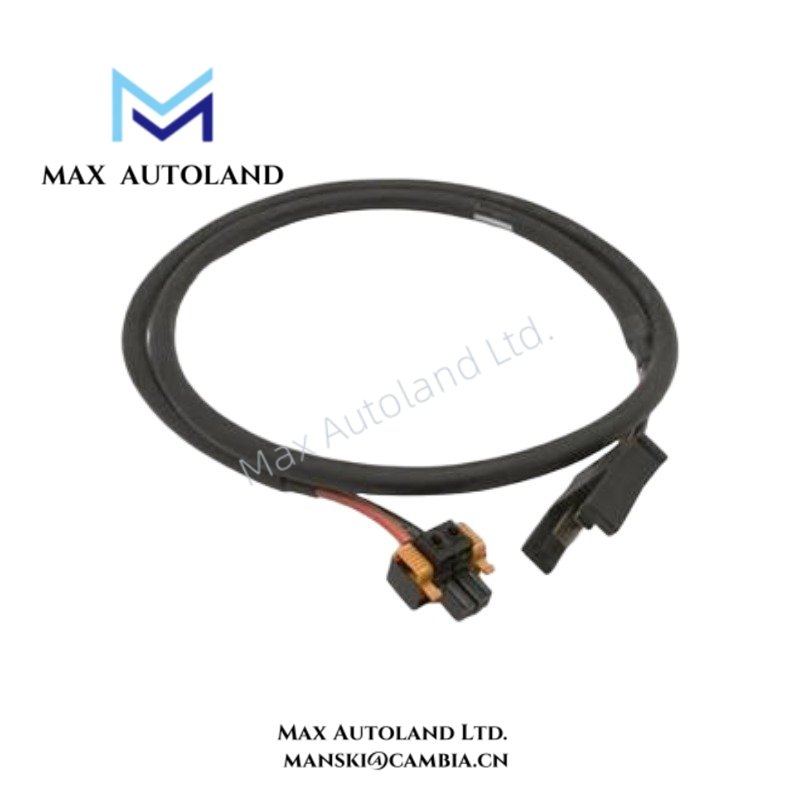

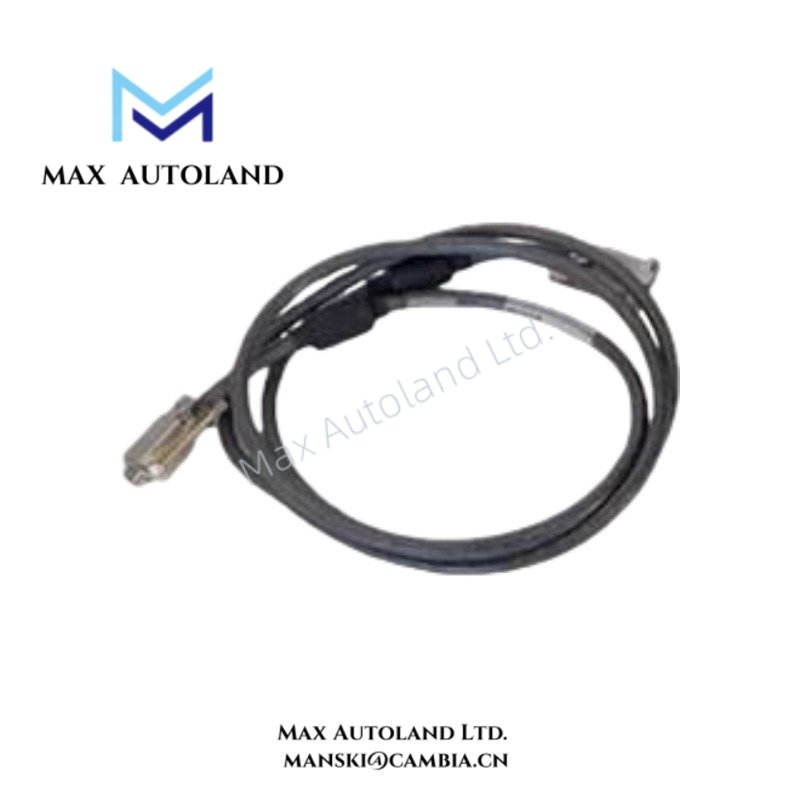

Configured for I/O bus signal routing between a controller chassis and an extension I/O chassis, the Honeywell FS-IOBUS-CPX12 (FS-IOBUS-CPX12 I/O Bus Cable) provides the physical connection between CPCHAS and IOCHAS assemblies in Honeywell safety/control infrastructure. The cable carries the interconnection required for controller-to-I/O chassis communication.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FS-IOBUS-CPX12 |
| Brand | Honeywell |
| Product Type | Controller Cabinet to Extension/IO Cabinet Cable / I/O Bus |
| Application | Safety Manager / DCS I/O expansion |
| Source / Path | Controller Chassis (CPCHAS) to I/O Chassis (IOCHAS) |
| Origin | USA |
| Weight | Approx. 1,000 g (1.0 kg) |
| Signal Function | Controller-to-I/O bus interconnection |
| Installation Environment | Industrial control cabinet / chassis interconnection |
Controller-to-I/O Bus Signal Routing
The FS-IOBUS-CPX12 provides the physical bus connection from the controller chassis to the extension I/O chassis. Therefore, installation should preserve the intended signal path between CPCHAS and IOCHAS.
The cable operates as an interconnection assembly rather than an active communication module. It does not independently process, condition, or regenerate I/O data. Instead, the connected controller and I/O hardware establish the electrical communication path through the cable.
For cabinet wiring, maintain physical separation from high-current power conductors where practical. Avoid excessive bending, mechanical tension, or routing that could place stress on the cable connectors.
Frequently Asked Questions
Q: Is the FS-IOBUS-CPX12 an active communication module?
A: No. The supplied information identifies it as a cable / I/O bus assembly. It provides the physical interconnection between CPCHAS and IOCHAS.
Q: Does the FS-IOBUS-CPX12 require an independent power supply?
A: No independent power requirement is specified. The cable functions as a passive interconnection component.
Q: Can the cable length or electrical characteristics be substituted without verification?
A: No. The supplied data does not define cable length or detailed electrical characteristics. Any substitute should be verified against the applicable Honeywell system hardware and installation documentation.
Field Installation Guidelines
- Connect the cable between the designated controller chassis and extension I/O chassis interfaces.
- Verify CPCHAS and IOCHAS identification before connection.
- Route the cable without excessive mechanical tension or sharp bends.
- Keep the bus cable separated from high-current and high-noise power wiring where practical.
- Ensure connectors are fully seated and mechanically secured before system operation.
- Do not modify, splice, or re-terminate the cable unless the applicable Honeywell installation documentation explicitly permits the procedure.
- Verify continuity and connector condition during commissioning if the installation procedure requires cable-level testing.
- Confirm the complete controller-to-I/O communication path after installation.
