Overview

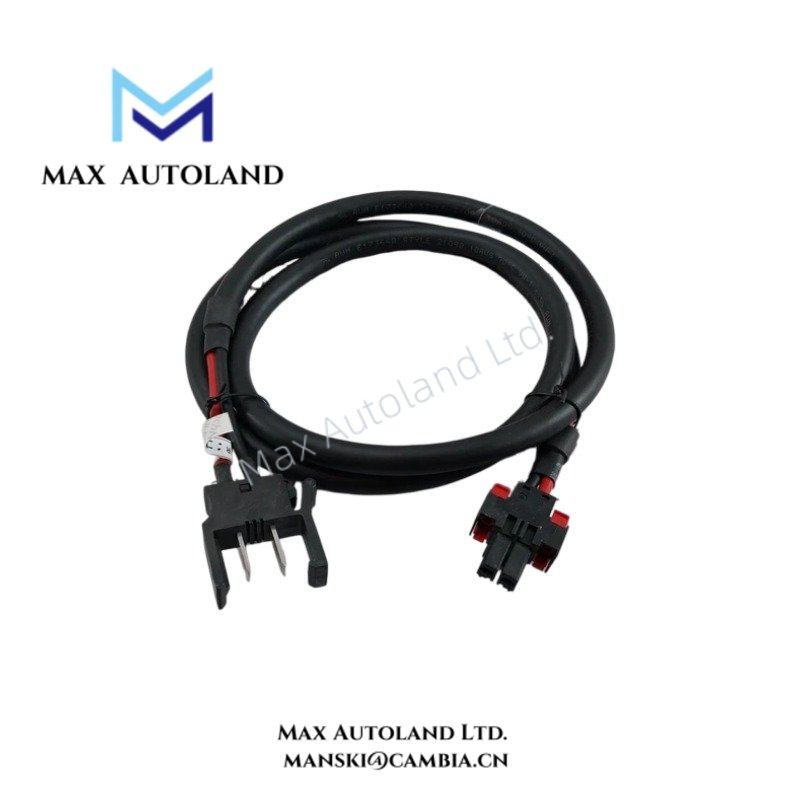

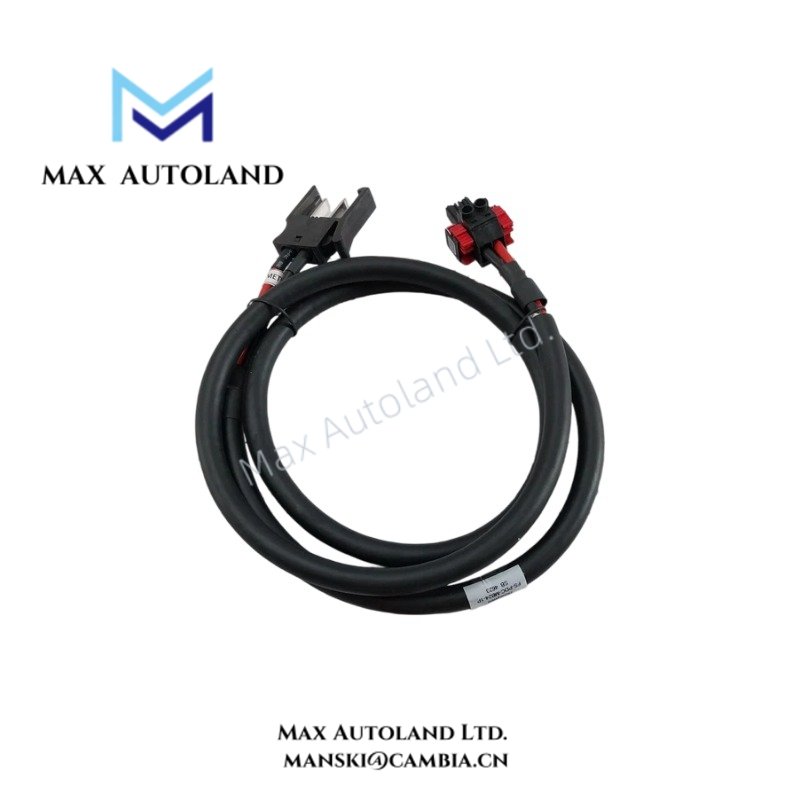

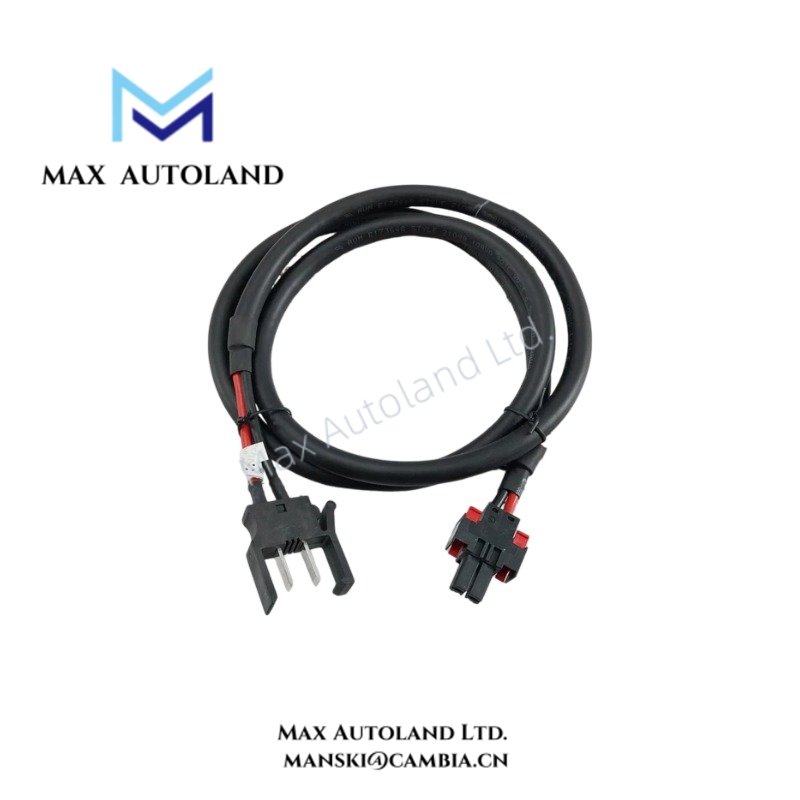

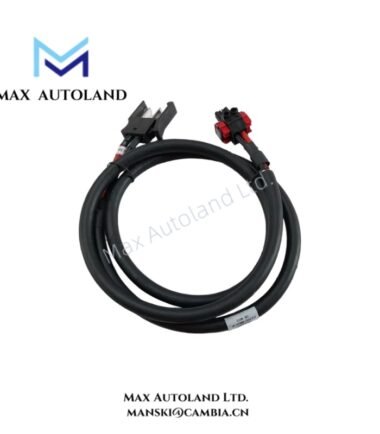

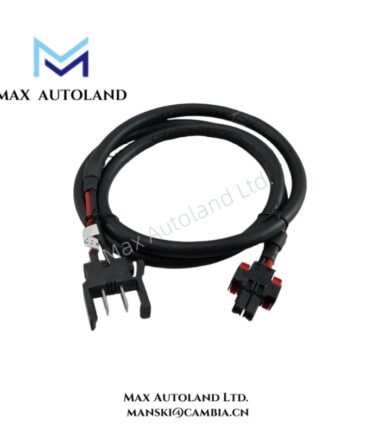

Configured for 24 VDC power distribution in Honeywell Safety Manager systems, the Honeywell FS-PDC-MB24-1P (FS-PDC-MB24-1P Power Distribution Cable) transfers power from the FS-MB-0001 main power rail to compatible power distribution boards and FTAs. The cable uses a keyed 2-pole connection system for the specified 24 VDC circuit.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FS-PDC-MB24-1P |
| Product Type | 24 VDC Power Distribution Cable |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.55 kg |
| Dimensions | Estimated shipping size: 30.8 x 12.1 x 5.5 cm |
| Cable Length | 145 cm (57.1 in) |
| Operating Temp | -20 to +70 deg C |
| Voltage | 24 VDC +/-20% |
| Conductor | 2 x 6 mm2 (AWG 10) |
| Typical Current Rating | 5-10 A |
| Continuous Current Rating | 1 A |
| Mains Power Bar Connector | 2-pole Squeeze-To-Release, D-TAB-200-STR |
| FTA/Board Connector | 2-pole keyed header, Weidmuller BVZ 7.62HP/02F SN |
| Keying | 24 VDC keying, Weidmuller BV/SV7.62HP KO |
| Tariff Code | 8537101190 |
24 VDC Power Distribution Interface
The FS-PDC-MB24-1P connects the FS-MB-0001 main power rail to downstream 24 VDC distribution points. On the power bar side, the cable uses the 2-pole D-TAB-200-STR Squeeze-To-Release connector.
At the FTA or board side, the cable uses a 2-pole Weidmuller BVZ 7.62HP/02F SN header. The specified Weidmuller BV/SV7.62HP KO keying identifies the 24 VDC circuit and helps prevent incorrect connector insertion.
The cable uses CC600 2 x 6 mm2 construction. Therefore, conductor selection provides the stated electrical path between the power rail and connected distribution hardware. The supplied data lists both a typical current range of 5-10 A and a continuous current rating of 1 A; these values should be verified against the applicable Honeywell system documentation before load sizing.
Frequently Asked Questions
Q: What voltage does the FS-PDC-MB24-1P distribute?
A: It is specified for 24 VDC +/-20% power distribution.
Q: What connectors are fitted to the cable?
A: The power bar side uses a 2-pole D-TAB-200-STR Squeeze-To-Release connector. The FTA or board side uses a keyed 2-pole Weidmuller BVZ 7.62HP/02F SN header.
Q: Does the cable provide connector keying?
A: Yes. The FTA or board-side connection uses Weidmuller BV/SV7.62HP KO 24 VDC keying.
Field Installation Guidelines
- Confirm that the connected power circuit is specified for 24 VDC before installation.
- Verify the connector keying and polarity before mating the cable with the FTA or distribution board.
- Engage the D-TAB-200-STR connector fully with the FS-MB-0001 power rail connection.
- Route the 145 cm cable without excessive bending, crushing, or tensile loading at either connector.
- Keep the power cable separated from high-level switching or high-current conductors where practical to reduce unwanted electrical coupling.
- Inspect both connector interfaces for damage or contamination before installation.
- Confirm conductor sizing and the applicable continuous-current limit against the system wiring documentation before energizing the circuit.
- Do not use the estimated shipping dimensions as the physical envelope of the installed cable assembly.
