Overview

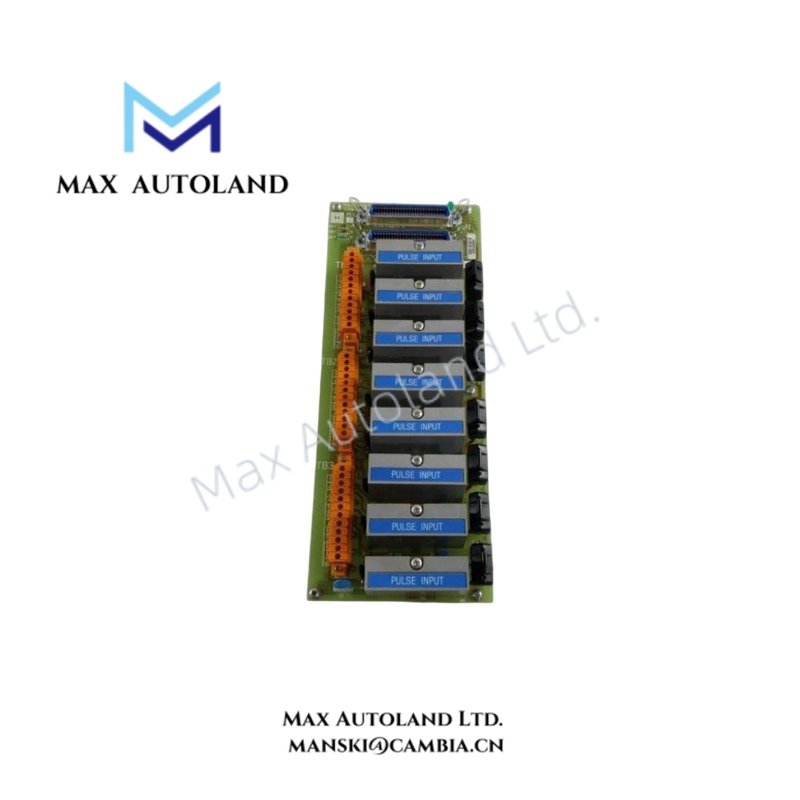

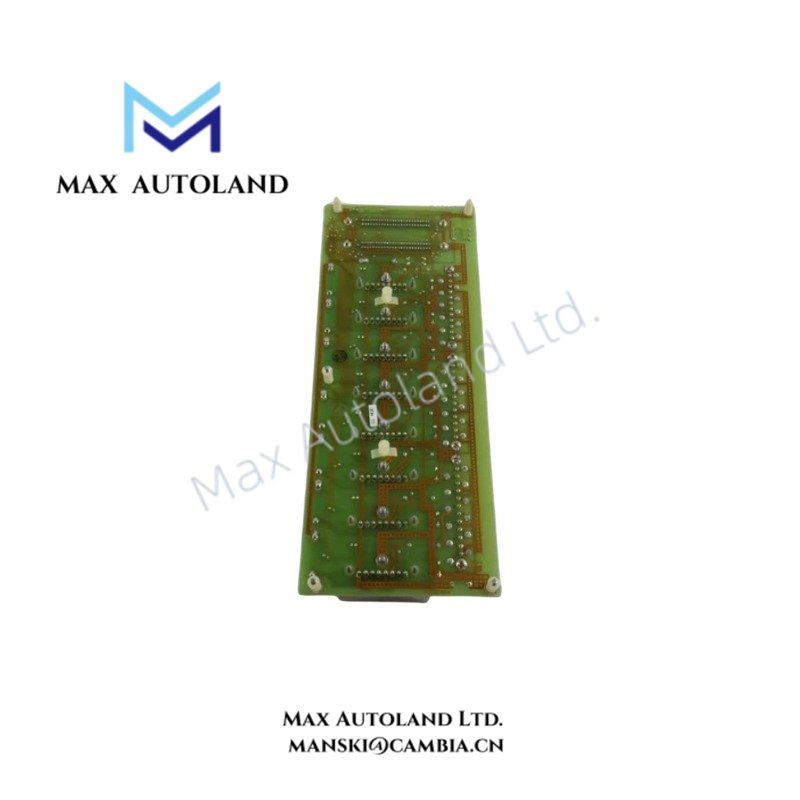

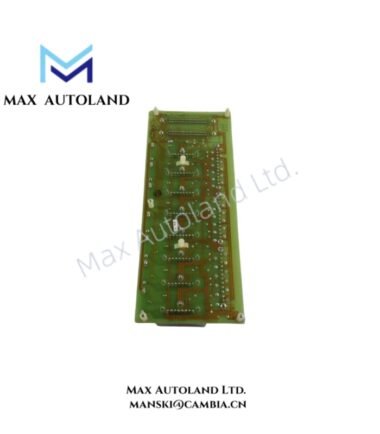

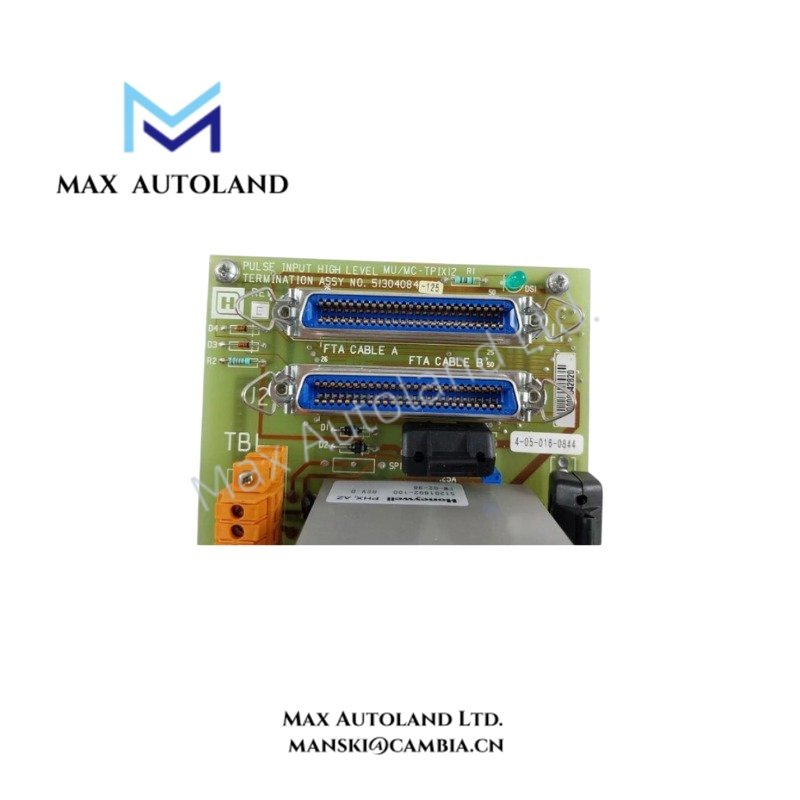

Configured for process signal interfacing within Honeywell Experion PKS / TPS control architectures, the Honeywell 51304084-125 (MU-TPIX12 Process Interface Module) provides physical signal interface functionality between field-side wiring and the associated control-system hardware. The supplied data identifies it as a process interface / terminal processor related module.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TPIX12 |
| Part Number | 51304084-125 |
| Brand | Honeywell |
| Product Type | Process Interface / Terminal Processor Related Module |
| Application | Honeywell Experion PKS / TPS industrial process control systems |
| Operating Temp | 0 deg C to 65 deg C |
| Storage Temp | -40 deg C to 85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Power Consumption | Not specified in supplied data |
| Mounting | DIN rail or rack mounting, depending on chassis or enclosure configuration |
| Signal Function | Process signal interfacing / terminal processor related operation |
| System Compatibility | Honeywell Experion PKS / TPS infrastructure |
Honeywell Process Interface Characteristics
The MU-TPIX12 is identified as a process-interface-related hardware module rather than a standalone field transmitter. Therefore, the module’s electrical role depends on the associated Honeywell chassis, terminal arrangement, and connected I/O architecture.
Honeywell process control systems commonly implement analog instrumentation through standardized 4-20 mA signal loops and may support HART communication at the appropriate I/O level. However, the supplied specifications do not explicitly assign a 4-20 mA HART interface to the 51304084-125, so the protocol should be verified against the applicable system documentation before field wiring.
Channel-to-channel isolation, signal conditioning, and terminal allocation likewise depend on the specific hardware architecture in which the MU-TPIX12 operates. Consequently, installers should verify the corresponding terminal board and I/O documentation before assigning field circuits.
Frequently Asked Questions (FAQ)
Q: What is the operating temperature range of the MU-TPIX12?
A: The specified operating range is 0 deg C to 65 deg C. The specified storage range is -40 deg C to 85 deg C.
Q: Can the MU-TPIX12 be installed on a DIN rail?
A: The supplied data identifies DIN rail or rack mounting, depending on the applicable chassis or enclosure configuration.
Q: Does the supplied specification confirm 4-20 mA HART support?
A: No. The supplied information identifies the module as a process interface / terminal processor related module but does not specify a 4-20 mA HART interface. Confirm the connected I/O hardware documentation before wiring.
Field Installation Guidelines
- Verify that the installed chassis or enclosure explicitly supports the MU-TPIX12 and part number 51304084-125.
- Confirm the module orientation and mechanical retention method before applying system power.
- Route field signal wiring separately from high-voltage power conductors and high-current switching circuits.
- Use the applicable Honeywell terminal and wiring documentation to identify each field connection before termination.
- Maintain the specified operating temperature and humidity limits at the installed module location.
- Apply shield termination according to the control-system grounding scheme. Avoid creating unintended ground loops through multiple shield termination points.
- Inspect terminal connections for correct polarity, conductor identification, and mechanical tightness before energizing the circuit.
- Verify signal continuity and field wiring insulation before connecting external process circuits.
- Confirm system configuration and I/O channel assignment before placing the associated control loop into service.
- Do not substitute an unverified terminal board, chassis position, or interface module without checking hardware compatibility.
