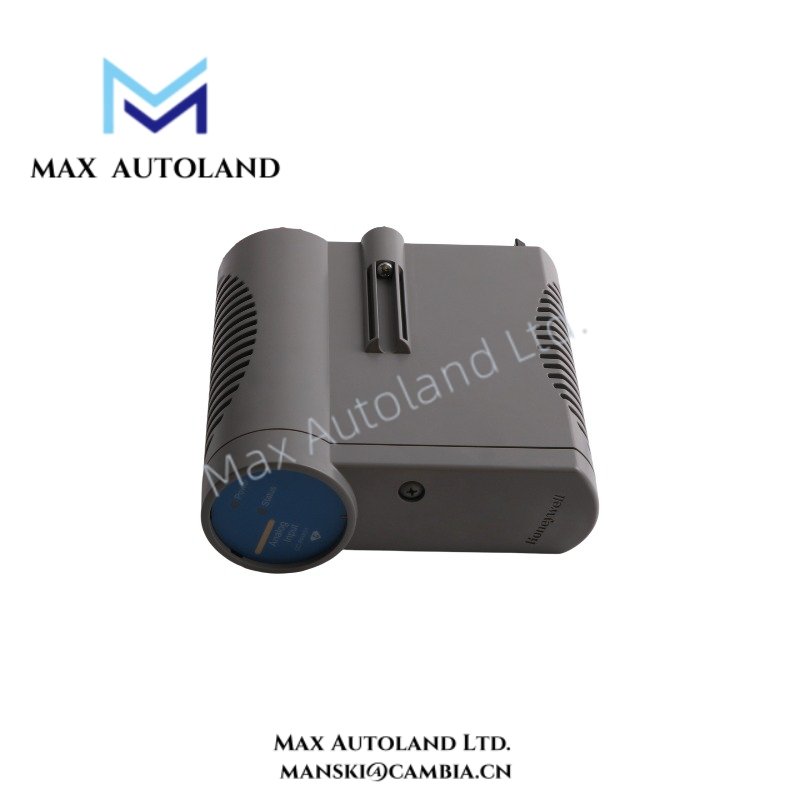

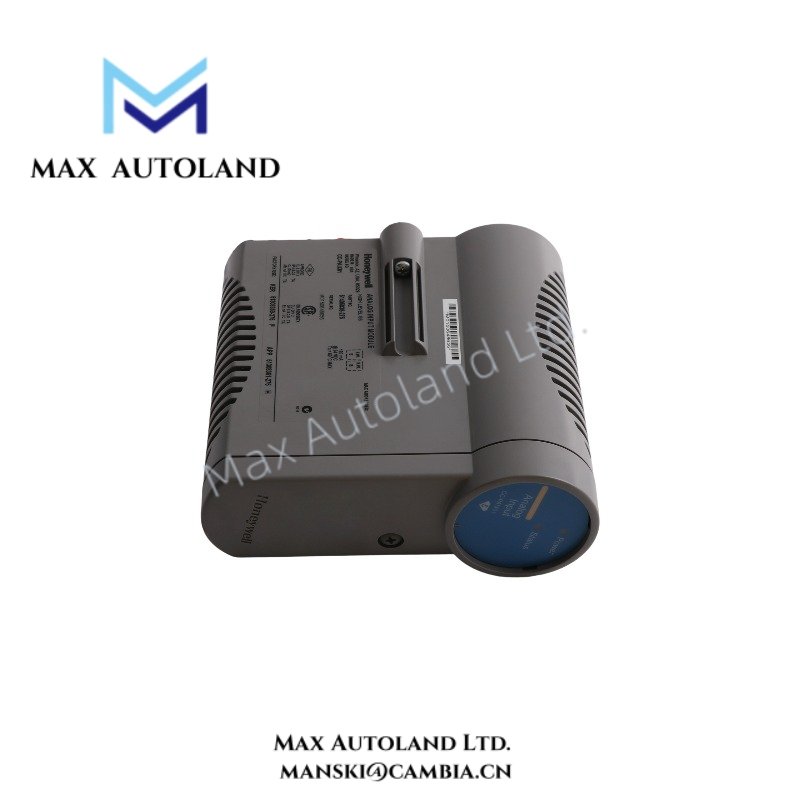

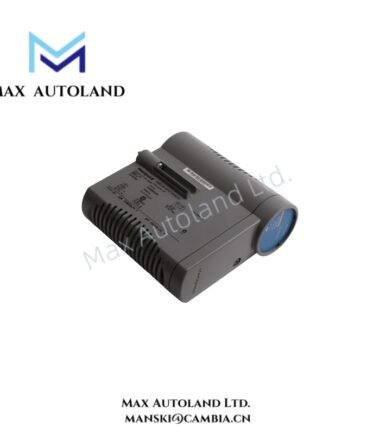

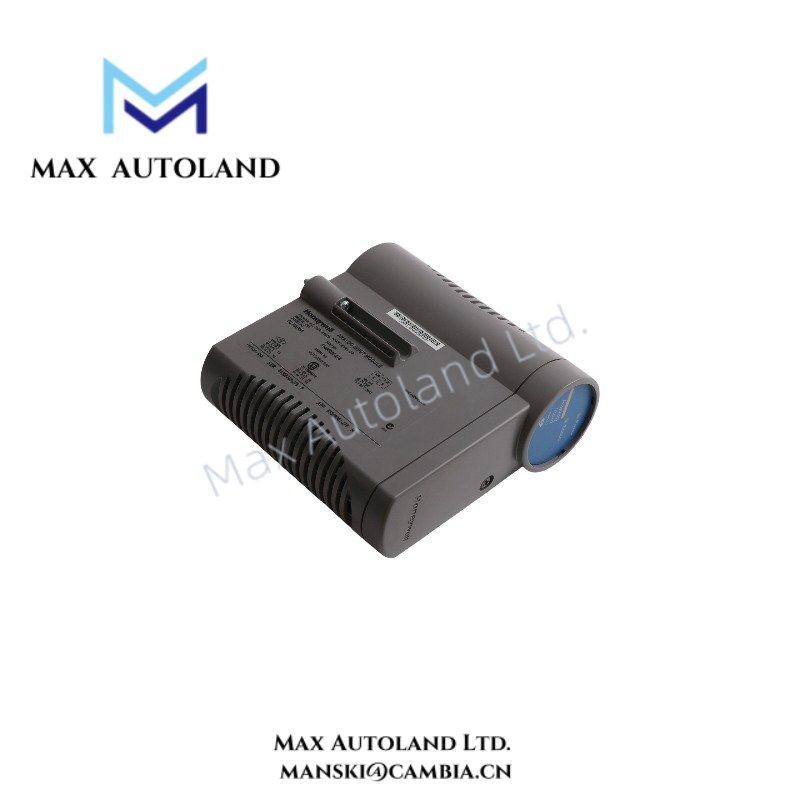

Honeywell CC-PAIX01 High-Level Analog Input Module

Overview

The Honeywell CC-PAIX01 51405038-275, also cataloged as the CC-PAIX01 High-Level Analog Input Module, executes analog signal acquisition and HART communication within the Honeywell Experion Series C I/O architecture. It provides 16 input channels and converts supported field signals into digital process data for C300 controller processing.

Hardware Specifications

Honeywell Process Signal and HART Interface

The CC-PAIX01 accepts standard high-level analog field signals and transfers converted process values to the Experion Series C control architecture. The module supports 4-20 mA and 0-20 mA current inputs, while the supplied specification also identifies voltage, temperature, and pressure signal support.

HART communication provides a digital communication layer over compatible analog instrument loops. Therefore, the control system can exchange device information and diagnostic data while maintaining the analog measurement path.

Channel configuration supports single-ended and differential input arrangements. Differential measurement can reduce the influence of common electrical noise when the field wiring and grounding scheme require it. The module also provides configurable digital filtering to suppress unwanted signal variation before controller processing.

The 16-bit conversion resolution provides discrete digital representation of the acquired analog signal. The stated 50 ms input scan rate defines the supplied signal acquisition interval.

Frequently Asked Questions (FAQ)

Q: What supply voltage does the CC-PAIX01 require?

A: The supplied specification identifies a 24 VDC supply with a +/- 10% tolerance.

Q: Does the CC-PAIX01 support HART communication?

A: Yes. The module supports HART communication for compatible field instruments connected through supported analog input channels.

Q: What physical installation information is confirmed for this module?

A: The supplied data identifies the Series C standard DIN rail form factor and hot-swap capability. Exact dimensions, weight, and detailed terminal wiring information were not provided and should be verified against the applicable Honeywell installation documentation.

Field Installation Guidelines

• Install the module on the designated Honeywell Experion Series C mounting hardware and maintain the specified mechanical engagement of the I/O assembly.
• Verify that the 24 VDC supply remains within the stated +/- 10% operating range before connecting field circuits.
• Separate analog signal wiring from high-current power conductors and switching circuits to reduce induced electrical noise.
• Use shielded instrumentation cable where required by the field instrument and site wiring standard.
• Terminate cable shields according to the plant grounding design. Avoid creating unintended multiple-point shield connections that can introduce ground-loop currents.
• Confirm whether each field device requires single-ended or differential input wiring before termination.
• Verify current-loop polarity and field-device output configuration before applying power.
• For HART instruments, confirm that the field loop provides the required electrical conditions for digital communication.
• Check module status LEDs after installation and investigate diagnostic indications before placing the channel into service.
• Perform channel verification using a calibrated field source or approved instrument test procedure before commissioning the control strategy.
• Do not apply voltage or current signals outside the configured input range.
• Confirm hot-swap procedures against the applicable Honeywell Series C installation manual before removing or inserting the module under power.
