Overview

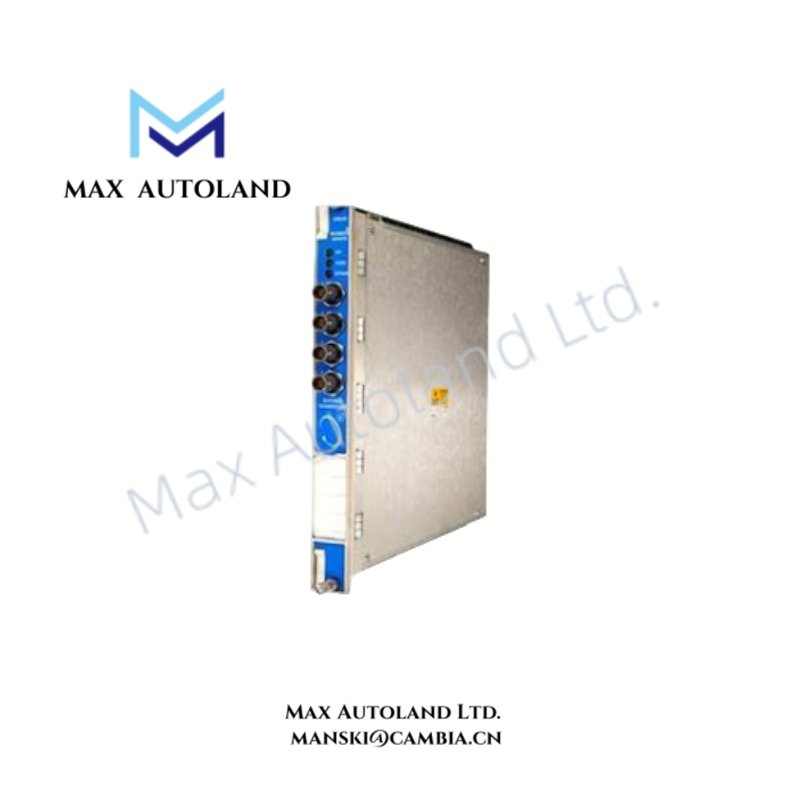

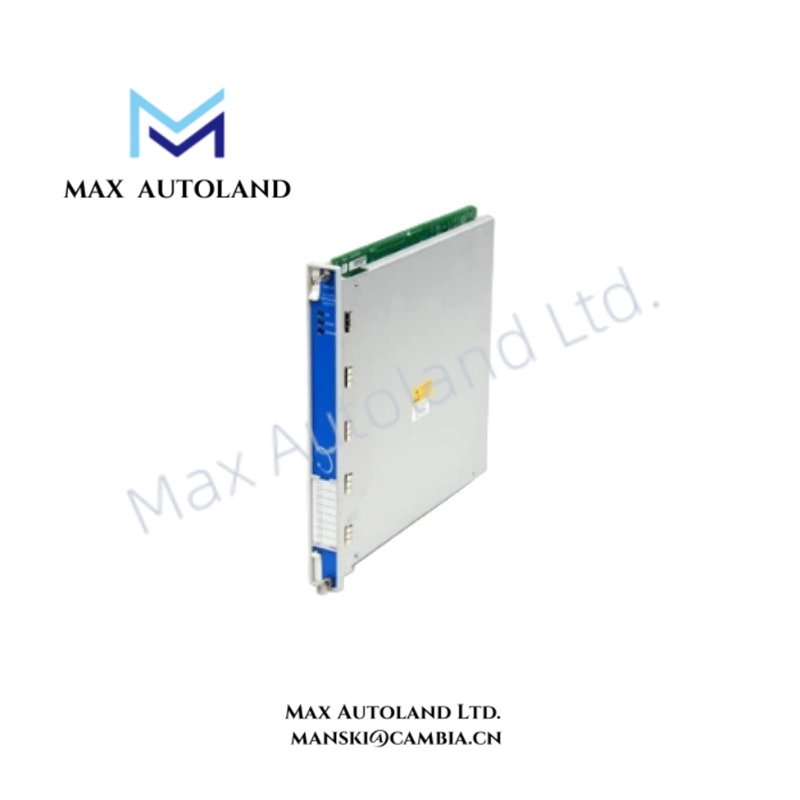

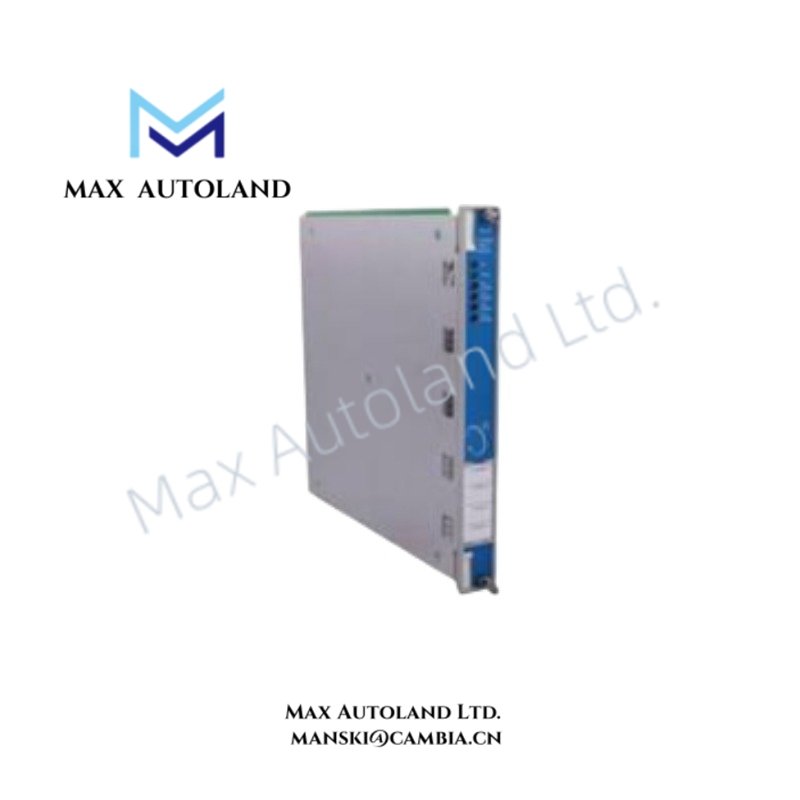

The Bently Nevada 169253-01, also cataloged as the 169253-01 Monitor Module, operates as a dedicated hardware component for vibration signal acquisition and machinery protection monitoring within Bently Nevada rack-based monitoring systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 169253-01 |
| Brand | Bently Nevada |
| Product Type | Monitor Module |
| Origin | USA |
| System Compatibility | Bently Nevada rack-based machinery monitoring systems, including 3500 Series platforms |
| Input Channels | Multi-channel dynamic monitoring configuration |
| Input Types | Proximitor sensors, seismic transducers, velocity sensors, accelerometers |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | Approx. 100 mA to 440 mA depending on configuration and transducer load |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | Up to 95% non-condensing |
| Signal Processing | Real-time vibration and mechanical parameter monitoring |
| Alarm Functions | Programmable alarm and danger setpoints |
| Diagnostic Output | Buffered transducer signal outputs for analysis |
Eddy-Current Probe Scaling and Rotor Dynamics Monitoring
The Bently Nevada 169253-01 module processes dynamic mechanical signals from rotating equipment sensors and supports vibration-based machinery protection functions. The module architecture is designed for applications requiring accurate signal conditioning from eddy-current probe systems, velocity sensors, and accelerometers.
The monitoring logic supports evaluation of shaft vibration behavior, displacement trends, and rotor dynamics conditions. In addition, the module can process conditioned sensor signals for alarm comparison and machine status assessment.
For eddy-current measurement systems, proper probe scaling and gap voltage validation remain important during commissioning. Bently Nevada proximity systems commonly use -10 VDC target gap voltage conditions to verify probe operating range and shaft position measurement accuracy.
Frequently Asked Questions
Q: What sensor types can the 169253-01 Monitor Module process?
A: The module accepts dynamic vibration signals from compatible transducer types, including Proximitor sensor systems, seismic sensors, velocity sensors, and accelerometers.
Q: Does the 169253-01 support real-time alarm monitoring?
A: Yes. The module processes measured signals and supports configurable alarm and danger setpoints for machinery protection applications.
Q: Is the module compatible with Bently Nevada 3500 Series racks?
A: The 169253-01 is designed for integration into Bently Nevada rack-based monitoring architectures. Actual compatibility depends on the installed rack configuration and system requirements.
Field Installation Guidelines
- Install the module only in the specified Bently Nevada rack position according to the system hardware configuration.
- Verify rack backplane connections before applying power to prevent communication or module initialization faults.
- Use shielded sensor wiring for vibration signal connections and terminate cable shields according to site grounding practices.
- Separate low-level vibration signal cables from high-voltage power conductors to reduce electrical interference.
- Confirm Proximitor probe wiring polarity, signal routing, and gap voltage conditions before commissioning.
- Check sensor calibration parameters and alarm settings after module installation.
- Follow the applicable Bently Nevada system manual for rack addressing, configuration loading, and diagnostic verification.
