Hardware Specifications

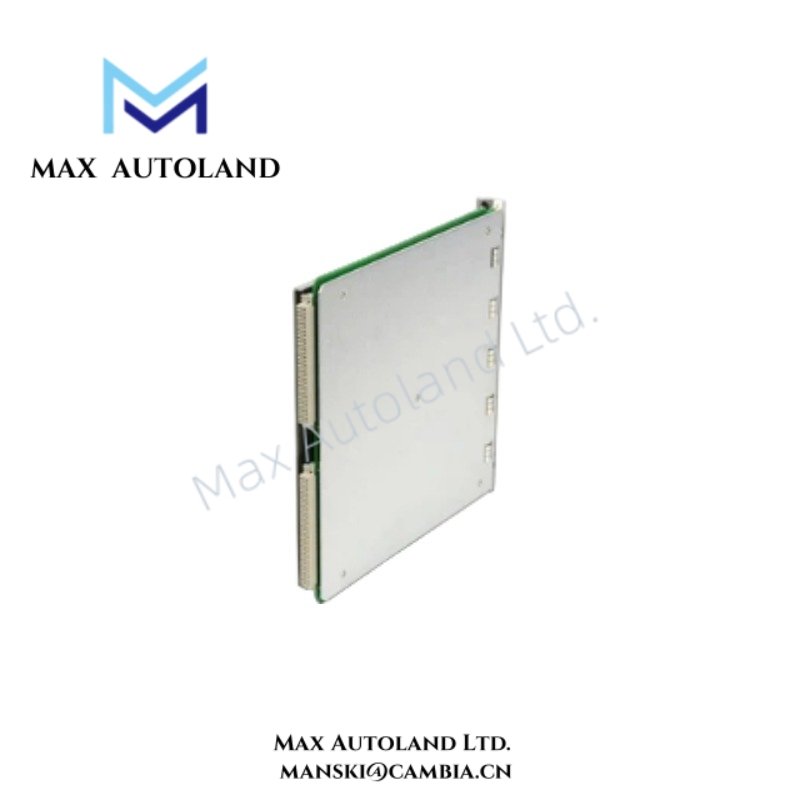

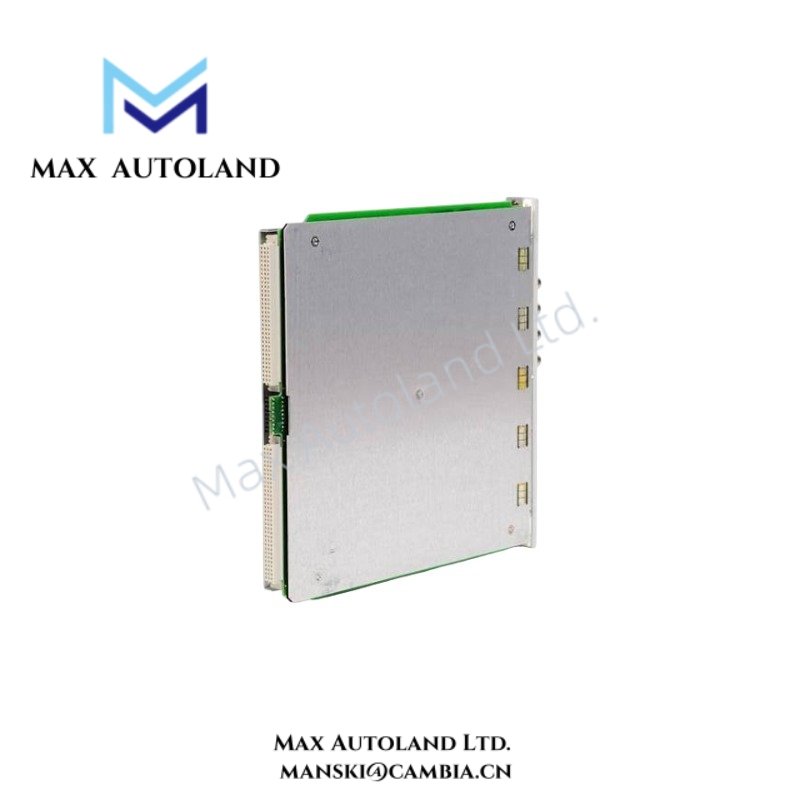

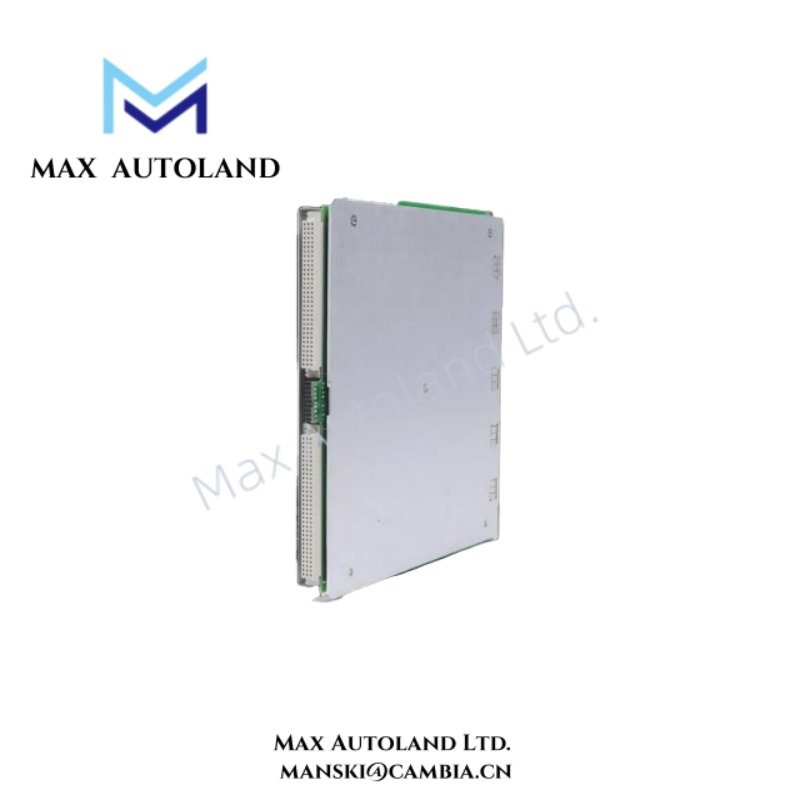

| Parameter | Specification |
|---|---|
| Model | 125489-01 |
| Brand | Bently Nevada |
| Product Type | Isolated 4-20 mA I/O Module with Internal Terminations and Barriers |
| Series | 3500 Series Machinery Protection System |
| Signal Range | 4-20 mA linear current loop |
| Channel Capacity | 4 independent channels |
| Measurement Accuracy | +/- 0.25 % of full scale, typical |
| Repeatability | +/- 0.1 % of full scale |
| Isolation Voltage | 1500 V RMS |
| Internal Terminations | Integrated |
| Internal Barriers | Integrated |
| System Compatibility | 3500/42M Proximitor/Seismic Monitor and associated rack configuration |
| Mounting Configuration | DIN rail or panel mount compatibility |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
Eddy-Current Signal Scaling and Cross-Talk Control
Within machinery monitoring installations, isolated signal paths help separate field-loop electrical behavior from adjacent measurement circuits. The 125489-01 supports 4-20 mA signal handling where scaling and conditioning must remain consistent with the configured monitoring channel.
For eddy-current and related machinery measurement systems, technicians should verify signal scaling against the associated monitor configuration before commissioning. In addition, proper cable segregation and shield termination help suppress cross-talk between current-loop circuits and nearby vibration or proximity measurement wiring.
Where proximity measurements are used in the same machinery protection installation, gap voltage validation may also form part of the commissioning procedure. A nominal -10 VDC target is commonly used for applicable Bently Nevada eddy-current probe systems when the specified probe and target configuration requires this reference.
Frequently Asked Questions
Q: Does the 125489-01 provide internal electrical isolation?
A: Yes. The provided specification identifies a 1500 V RMS isolation rating and integrated internal barriers and terminations.
Q: How many independent monitoring channels does the module support?
A: The module supports 4 independent channels for 4-20 mA signal interfacing.
Q: Can the 125489-01 operating temperature range be used as the enclosure temperature rating?
A: No. The stated -40 deg C to +70 deg C range applies to the module specification. The complete installation must also comply with the rack, enclosure, wiring, and surrounding equipment requirements.
Field Installation Guidelines
- Install the module according to the applicable 3500 Series rack and system configuration requirements.
- Verify the field-loop polarity before connecting 4-20 mA signal conductors.
- Keep low-level machinery monitoring cables separated from high-current power and switching conductors.
- Terminate cable shields according to the system grounding architecture to prevent ground loops and unwanted signal coupling.
- Confirm the internal termination and barrier arrangement before adding external isolation or barrier hardware.
- Verify channel scaling and configured measurement ranges during commissioning.
- De-energize applicable circuits before installing or removing field wiring unless the complete system documentation explicitly permits energized maintenance.
- Record loop current values and associated monitor configuration data after commissioning for subsequent maintenance checks.
