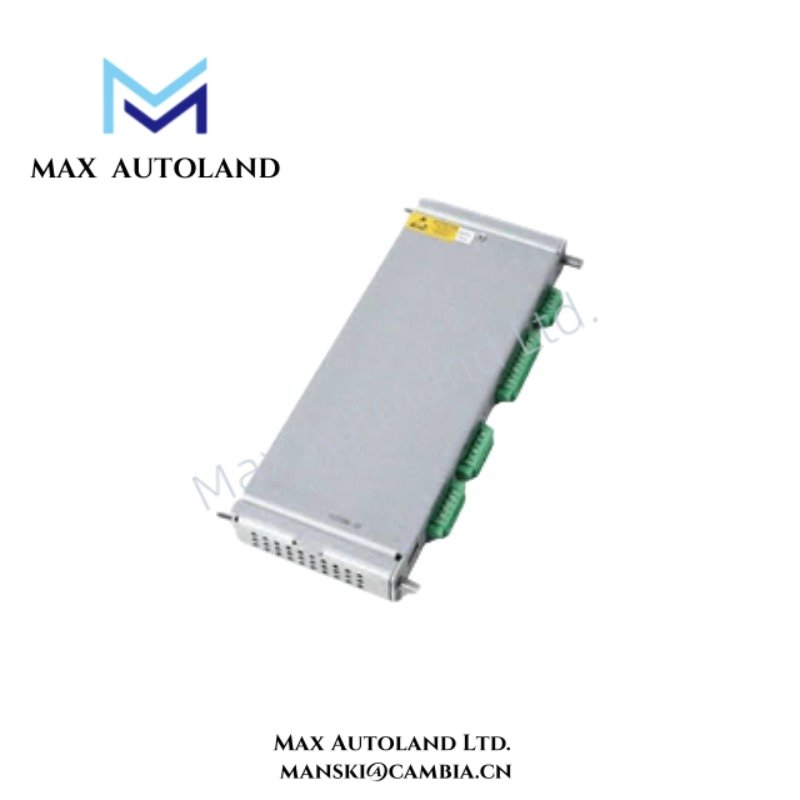

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 125740-01 |
| Brand | Bently Nevada |
| Product Series | 3500 Machinery Protection System |
| Module Type | Proximitor/Velomitor I/O Module |
| Channel Capacity | Supports 4 independent configured measurement channels |
| Supported Input Types | Proximity transducer or velocity transducer signals, according to monitor configuration |
| Primary Function | Field signal interfacing for machinery vibration and related dynamic measurements |
| Signal Functions | Signal interface and conditioned measurement signal paths; diagnostic and buffered functions depend on the associated system configuration |
| Rack Installation | Rear-slot installation in a compatible Bently Nevada 3500 rack configuration |
| Nominal Supply | 24 VDC nominal, based on the provided product information |
| Operating Temp | -40 to +85 deg C, based on the provided product information |
| Origin | USA |
| Compliance | Used within the Bently Nevada 3500 machinery monitoring architecture; specific approvals depend on the complete system configuration |
Eddy-Current Probe Scaling and Gap Voltage Validation
For proximity measurement configurations, the associated monitor and transducer system must use the correct eddy-current probe scaling. Therefore, technicians should verify the configured transducer system before connecting field wiring.
Gap voltage validation provides an additional commissioning check for eddy-current proximity systems. A nominal target near -10 VDC is commonly used as a reference condition for many Bently Nevada proximity measurement applications; however, the acceptable value depends on the installed probe, extension cable, and target material.
Correct scaling and gap verification help maintain consistent displacement measurements and reduce configuration errors during machinery commissioning. In addition, proper cable shielding and separation reduce unwanted coupling between dynamic measurement channels.
Frequently Asked Questions
Q: Does the 125740-01 operate as a standalone vibration monitor?
A: No. The module functions as an I/O interface within the Bently Nevada 3500 system architecture and operates with the corresponding rack and monitor configuration.
Q: Can proximity and velocity measurement wiring be connected without checking the configured monitor type?
A: No. Technicians should confirm the monitor configuration and the connected transducer type before installation. Signal scaling and wiring requirements depend on the configured measurement channel.
Q: Can the module be replaced while the system remains energized?
A: Replacement procedures should follow the applicable Bently Nevada 3500 rack maintenance instructions. Do not assume unrestricted hot-swap capability unless the installed rack and monitor documentation specifically permits energized replacement.
Field Installation Guidelines
Disconnect or isolate equipment as required by the applicable site safety procedure before removing or installing the module.
Confirm that the Bently Nevada 125740-01 matches the required 3500 rack position and associated monitor configuration. Insert the module without applying excessive mechanical force to the connector interface.
Route proximity and velocity transducer cables separately from high-current power conductors, motor output cables, and switching circuits. In addition, maintain the specified shielding arrangement and grounding practice for the installed transducer system.
Before commissioning, verify channel assignment, transducer type, signal scaling, and field cable continuity. For eddy-current proximity measurements, validate the observed gap voltage against the applicable probe system documentation.
After installation, inspect the rack for channel diagnostics and configuration faults before returning the machinery protection system to service.
