Overview

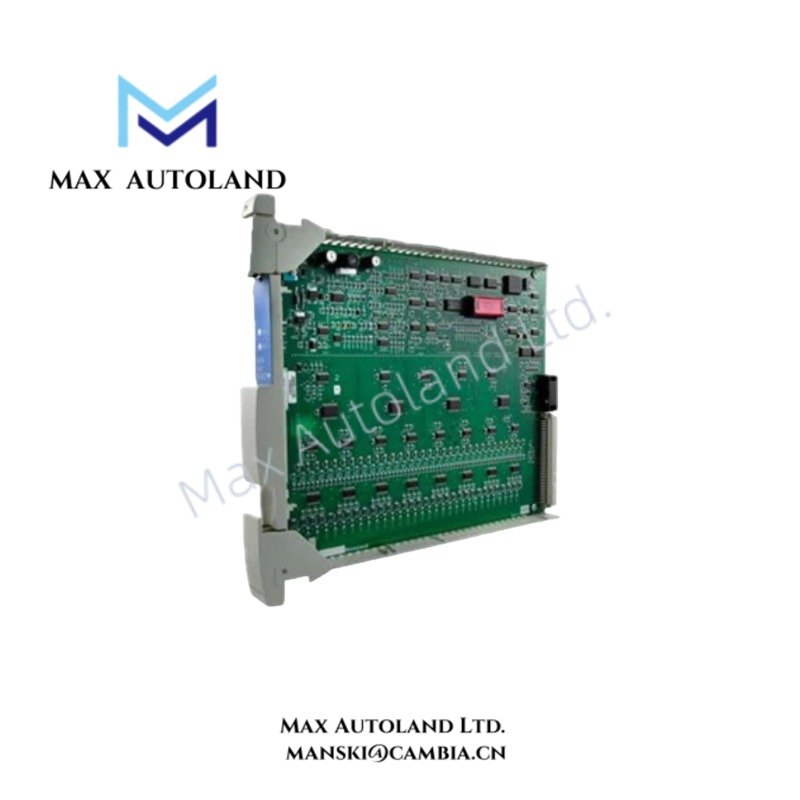

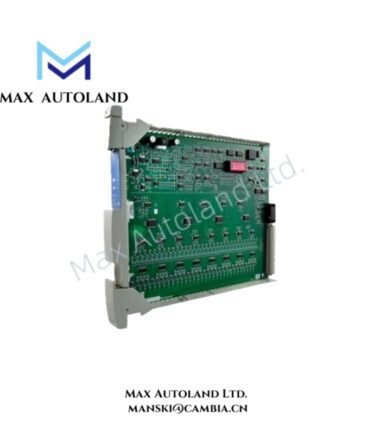

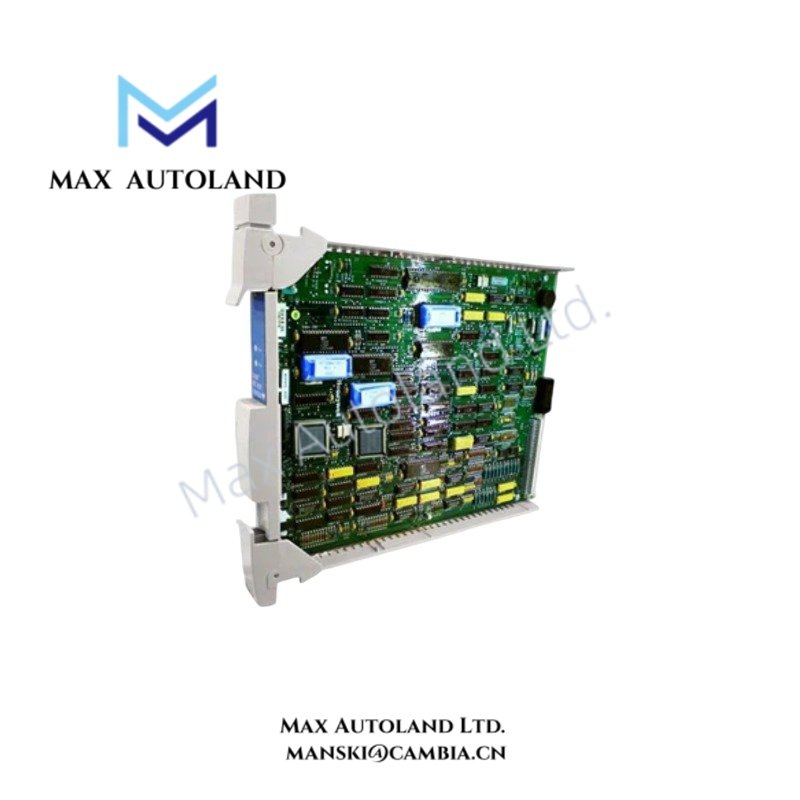

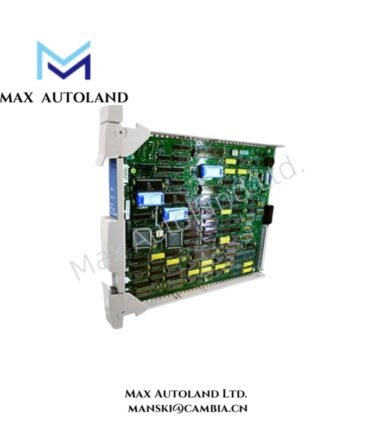

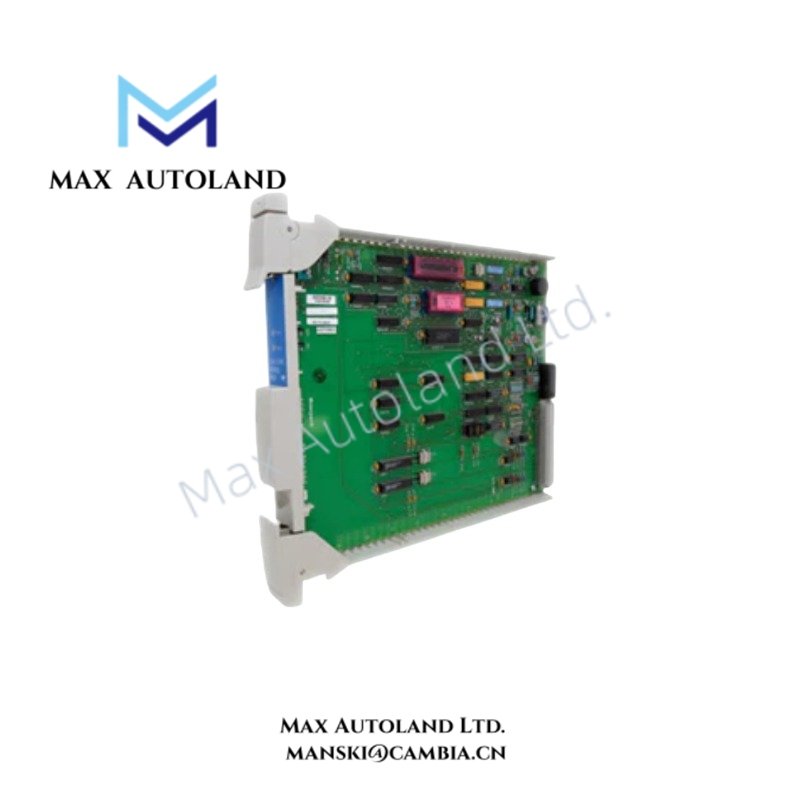

The Honeywell MU-TAIH13, also cataloged as the MU-TAIH13 High-Level Analog Input FTA, provides 16 differential analog input channels for field signal termination within Honeywell Experion PKS architectures. The available data identifies high-level voltage/current process signals as the supported input category.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TAIH13 |
| Brand | Honeywell |
| Product Type | High-Level Analog Input FTA |
| System Compatibility | Honeywell Experion PKS |
| Input Configuration | 16 differential input channels |
| Input Signal Type | High-level analog voltage/current signals |
| Field Interface | Analog process transmitters and instruments |
| Mounting | DIN rail or panel installation |
| Operating Environment | Industrial control cabinet |
| Channel Count | 16 |
| Signal Function | Analog signal termination and acquisition |
Process Instrument Signal Interface
The MU-TAIH13 terminates high-level analog signals from field transmitters and instruments. Therefore, installation should maintain correct channel assignment between the field device and the corresponding Experion PKS input point.
The supplied information does not specify individual voltage or current ranges, HART communication, channel-to-channel isolation, or fieldbus protocol support. Consequently, these parameters require verification against the applicable Honeywell system documentation before commissioning.
Frequently Asked Questions
Q: How many analog input channels does the MU-TAIH13 provide?
A: The supplied specification identifies 16 differential analog input channels.
Q: Does the supplied data confirm 4-20 mA HART support?
A: No. The data identifies high-level analog voltage/current inputs but does not explicitly confirm HART communication.
Q: What operating temperature and power consumption should be used for cabinet design?
A: The supplied data does not provide these values. Use the applicable Honeywell installation documentation to determine cabinet thermal and power requirements.
Field Installation Guidelines
- Install the FTA on a suitable DIN rail or panel surface with adequate mechanical support.
- Confirm the terminal assignment before connecting field transmitters.
- Separate analog signal wiring from high-voltage power and high-current switching conductors where practical.
- Use shielded instrumentation cable when required by the site wiring standard.
- Terminate cable shields according to the Honeywell system grounding and cabinet wiring specification.
- Verify signal polarity and channel allocation before applying field power.
- Check continuity and insulation condition before connecting the field wiring to the control system.
- Confirm the configured input range in the Experion PKS engineering database before commissioning.
- Do not apply an unverified signal level to an analog input channel.
- Complete loop checks after wiring and configuration verification.
