Overview

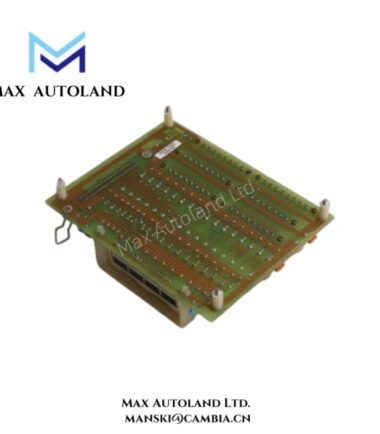

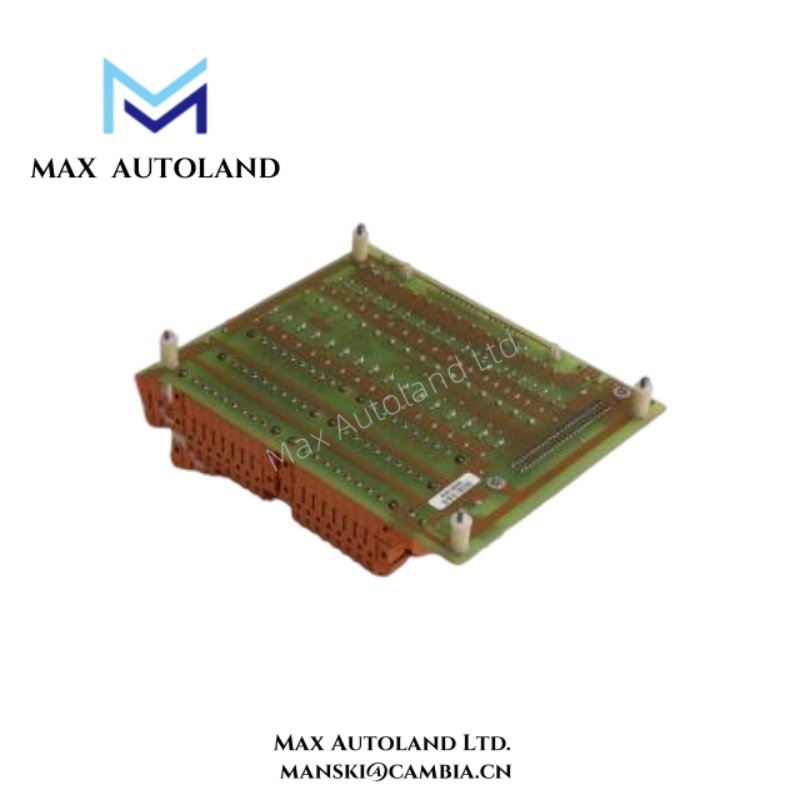

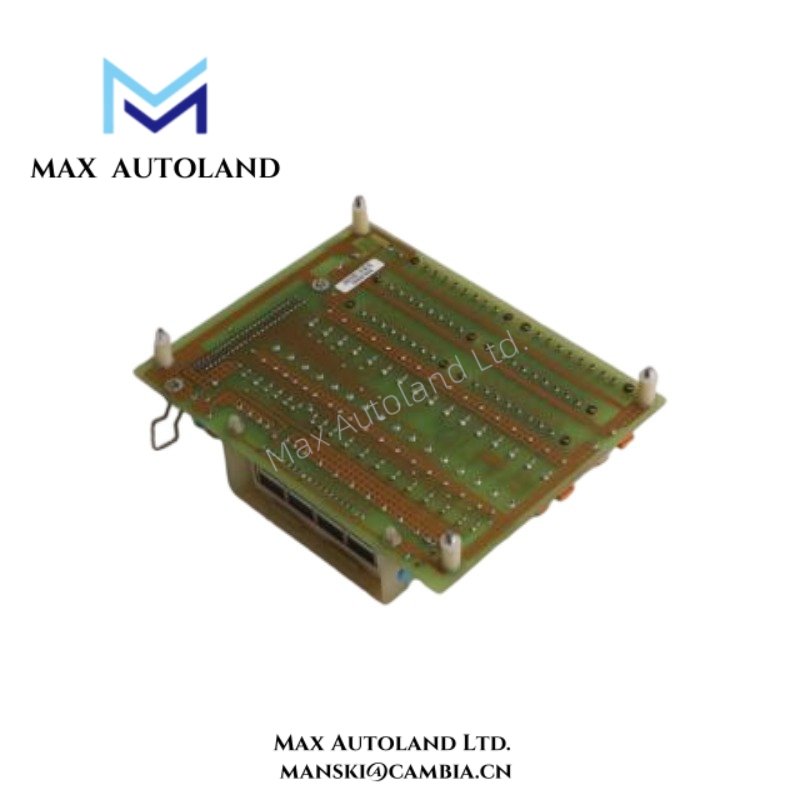

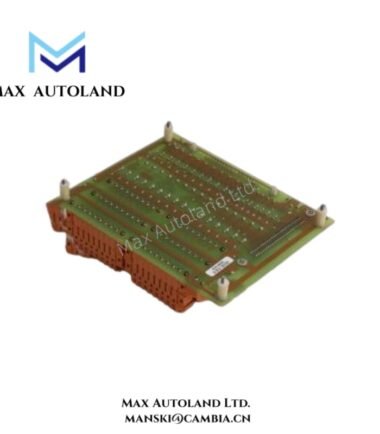

The MU-TAIH02 51304453-100 high-level analog input processor delivers accurate signal acquisition for industrial automation systems.
Moreover, Honeywell designs the MU-TAIH02 51304453-100 for seamless integration within distributed control and process monitoring architectures.
Additionally, the module processes high-level analog signals with strong stability in demanding environments.
Therefore, engineers rely on MU-TAIH02 51304453-100 for precise measurement and reliable system performance.
Key Technical Features
The MU-TAIH02 51304453-100 supports high-level analog input processing for industrial control applications.
Furthermore, the module provides stable signal conditioning for accurate data acquisition from field instruments.
In addition, Honeywell equips the MU-TAIH02 51304453-100 with isolation protection to reduce electrical noise interference.
As a result, the module ensures consistent and reliable analog signal performance in continuous operations.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | MU-TAIH02 51304453-100 |
| Manufacturer | Honeywell |
| Product Type | High Level Analog Input Processor |
| Application | Industrial analog signal acquisition and processing |
| Input Channels | 8–16 high-level analog input channels (configuration dependent) |
| Input Signal Type | Voltage and current analog signals |
| Voltage Input Range | 0–10 V / ±10 V typical |
| Current Input Range | 4–20 mA / 0–20 mA |
| Signal Resolution | 16-bit high-resolution conversion |
| Accuracy | ±0.1% full scale typical |
| Input Impedance | High impedance voltage input design |
| Isolation | Channel-to-system electrical isolation |
| Interface Type | Backplane communication interface |
| Signal Processing | Real-time analog-to-digital conversion |
| Power Supply | Backplane powered or 24V DC external supply |
| Power Consumption | Approx. 6–10 W |
| Energy Storage | None (active electronic processor module) |
| Dimensions | Approx. 220 mm × 150 mm × 60 mm |
| Weight | Approx. 0.9 kg |
| Mounting Type | Rack or panel-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Features | Overvoltage protection and signal filtering |
FAQ
Q1: What type of signals does the MU-TAIH02 support?
A1: The MU-TAIH02 51304453-100 supports voltage and current analog input signals including 4–20 mA and 0–10 V.
Q2: How many input channels are available?
A2: The MU-TAIH02 51304453-100 supports 8 to 16 analog input channels depending on configuration.
Q3: Does the module include isolation protection?
A3: Yes, the MU-TAIH02 51304453-100 includes channel-to-system isolation for noise protection.
Q4: Is the product available in stock and how fast is shipping?
A4: The MU-TAIH02 51304453-100 is brand new original with stock available, and shipping takes 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and similar carriers to deliver the MU-TAIH02 51304453-100 quickly and safely.
