Overview

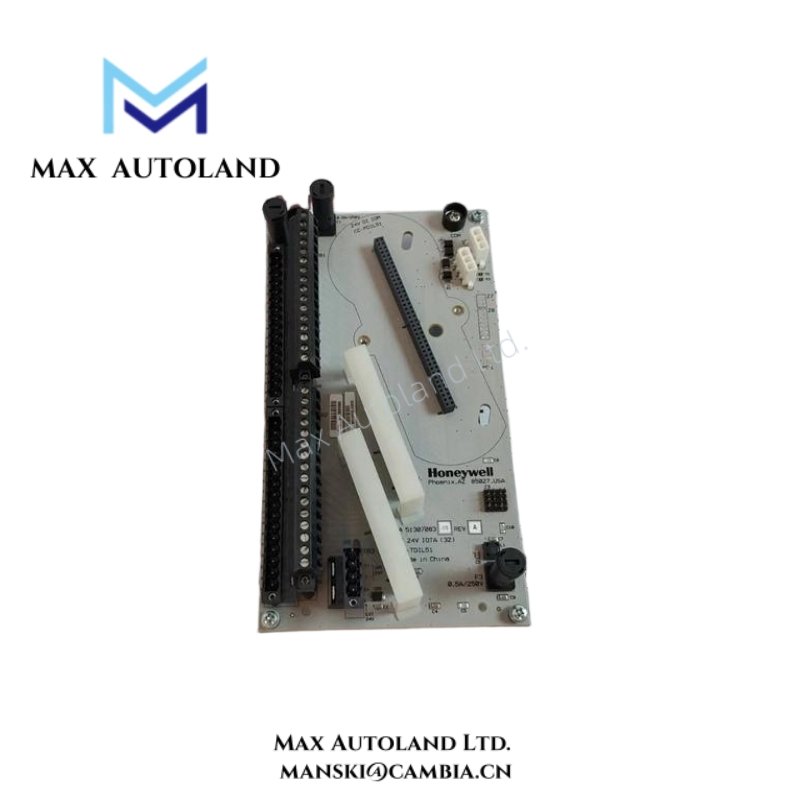

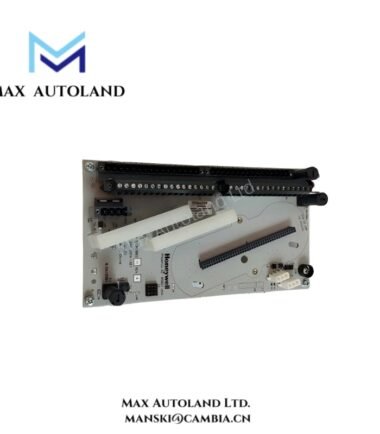

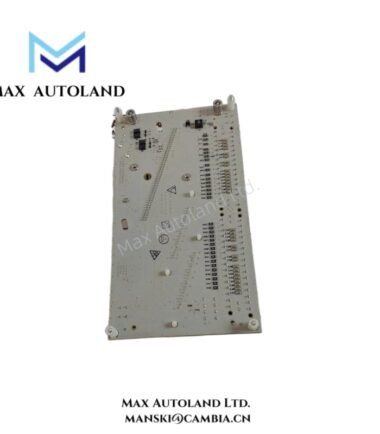

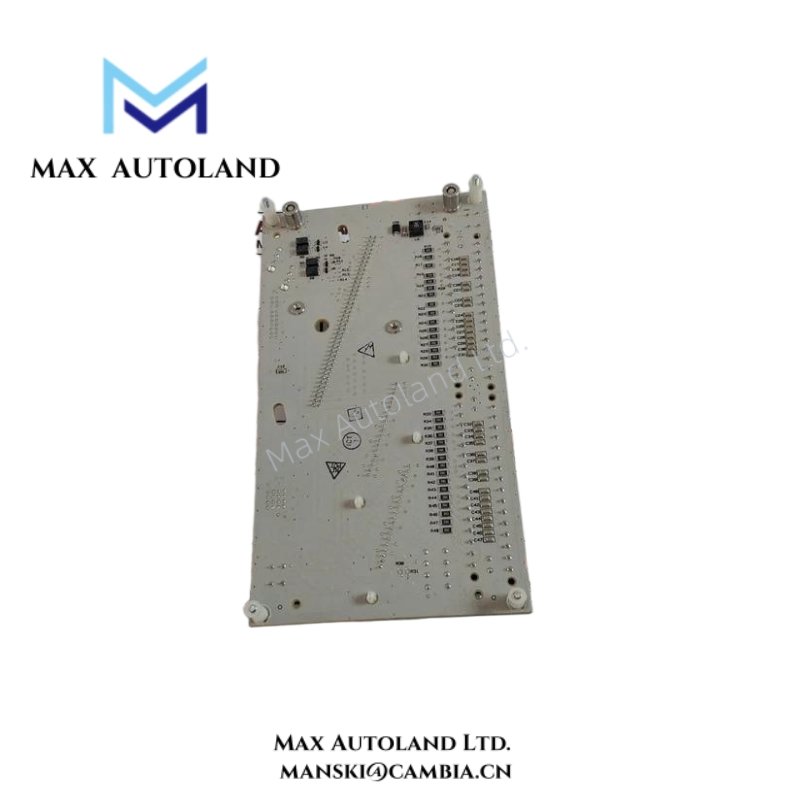

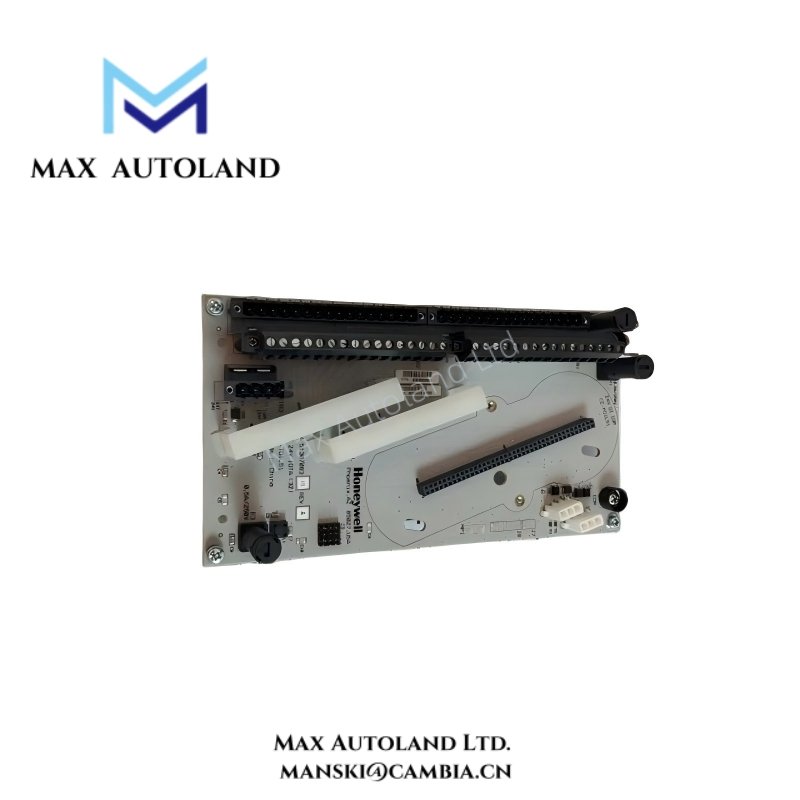

The Honeywell CC-GDIL21 is a 24V digital input module designed for IOTA non-redundant configurations. It accurately monitors discrete input signals from industrial devices, ensuring precise process control. Moreover, its compact 6-inch form factor allows easy installation in existing control racks. The module’s rugged construction protects against dust, moisture, and electrical interference, providing reliable long-term operation. Therefore, engineers can deploy it in critical process environments without concerns about downtime or maintenance complexity.
Specification
| Specification | Details |
|---|---|
| Model | CC-GDIL21 |
| Manufacturer | Honeywell |
| Module Type | Digital Input (DI) 24V |
| Number of Input Channels | 32 channels |
| Input Voltage | 24V DC nominal |
| Input Current per Channel | 5 mA typical, 10 mA maximum |
| Response Time | 1–5 ms typical |
| Isolation | Channel-to-channel and channel-to-backplane |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Environmental Protection | Rugged, industrial-grade coating against dust and moisture |
| IOTA Form Factor | 6-inch non-redundant |
| Rack Compatibility | Honeywell Series C I/O systems |
| Mounting | Plugs directly into IOTA |
| Typical Applications | Process automation, DCS integration, sensor and switch monitoring |
| Certifications | CE, UL (region dependent) |
FAQ
Q1: What is the primary function of the CC-GDIL21?
A1: It monitors 24V digital signals from sensors and switches in non-redundant IOTA configurations.
Q2: Can it operate reliably in harsh industrial environments?
A2: Yes, its rugged construction protects against dust, moisture, and electrical interference.
Q3: How many input channels does it support?
A3: The module supports 32 digital input channels.
Q4: What is the IOTA form factor for this module?
A4: It uses a compact 6-inch non-redundant IOTA form factor.
Q5: Which industries commonly use the CC-GDIL21?
A5: Oil and gas, petrochemical, power generation, and water treatment industries.
