Overview

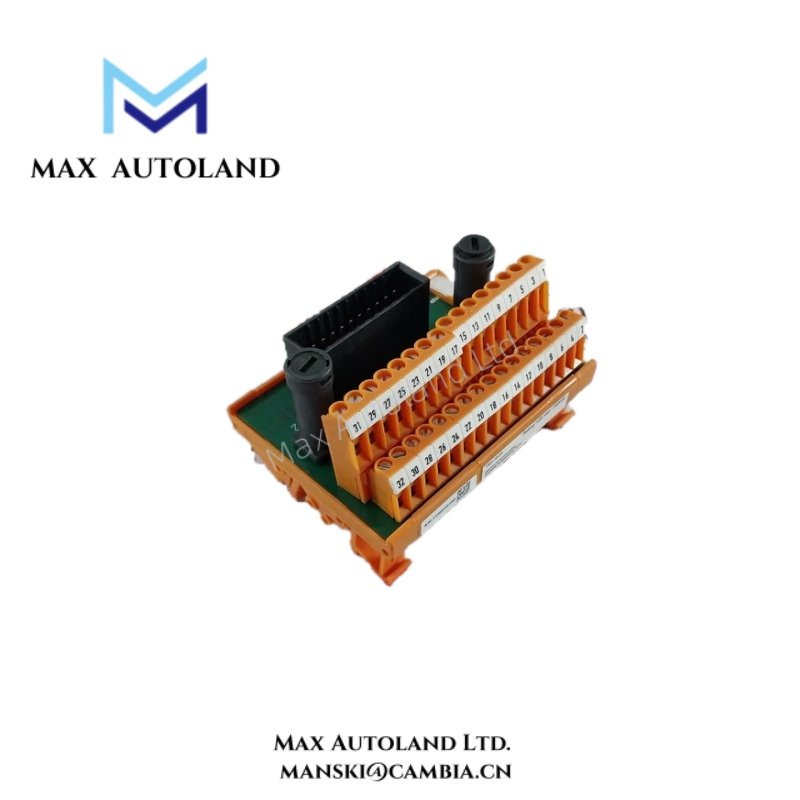

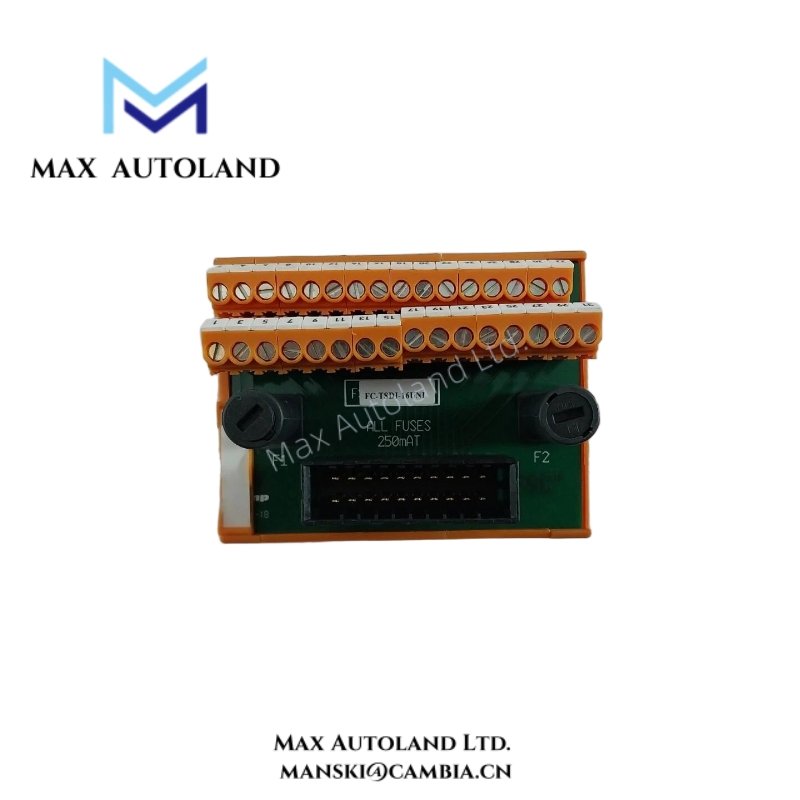

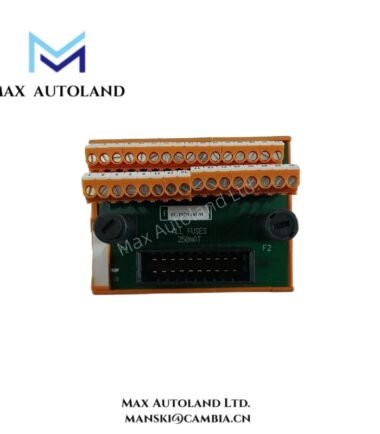

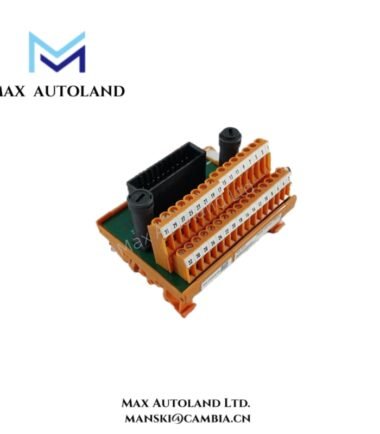

The Honeywell FC-BSDI-16UNI is a 16-channel safe digital input module for 24/48 Vdc field devices, offering a reliable interface between industrial sensors and the Safety Manager system. In addition, its conformal-coated construction enhances durability in harsh industrial environments, which ensures consistent performance even under extreme conditions. Therefore, engineers can confidently deploy it in critical safety applications while minimizing concerns about electrical interference or environmental stress.
Furthermore, the module features DIN rail mounting and a screw terminal design, allowing quick installation and secure connections. Moreover, these design elements simplify maintenance and support efficient system operation, helping plants maintain safety compliance and reduce downtime.
Specification
| Specification | Details |
|---|---|
| Model / Part Number | FC-BSDI-16UNI |
| Manufacturer | Honeywell |
| Module Type | Safe Digital Input (FTA) |
| Number of Input Channels | 16 (2 groups of 8 channels with 250 mA fuses) |
| Input Voltage | 24/48 Vdc |
| Input Current per Channel | ≤15 mA at 24 Vdc |
| Igniting Current per Channel | <100 mA at 24 Vdc +30% |
| Mounting | DIN EN rail TS32 / TS35 × 7.5 mm |
| Module Dimensions | 170 × 70 × 60 mm (6.69 × 2.76 × 2.36 in) |
| Fuse Rating | 250 mAT (slow-acting), 5 × 20 mm |
| Wire Termination | Max. wire diameter 2.5 mm², strip length 7 mm, torque 0.5 Nm |
| Approvals | CE, TUV, UL, CSA, FM |
| Environmental Protection | Conformal-coated for industrial environments |
| Applications | Safety automation, process monitoring, hazardous locations |
FAQ
Q1: What is the primary function of the FC-BSDI-16UNI?
A1: It safely monitors 16 digital input channels from field devices for critical automation systems.
Q2: Which input voltages are supported?
A2: The module supports 24 Vdc and 48 Vdc inputs.
Q3: Is the module suitable for hazardous environments?
A3: Yes, its conformal-coated design ensures safe operation in industrial and hazardous locations.
Q4: How is the module mounted?
A4: It mounts on standard DIN EN rails with snap-in provision for quick installation.
Q5: What approvals does the module have?
A5: CE, TUV, UL, CSA, and FM certifications.
